Unpacking Instructions
Reference Manual 13
Unpacking Instructions

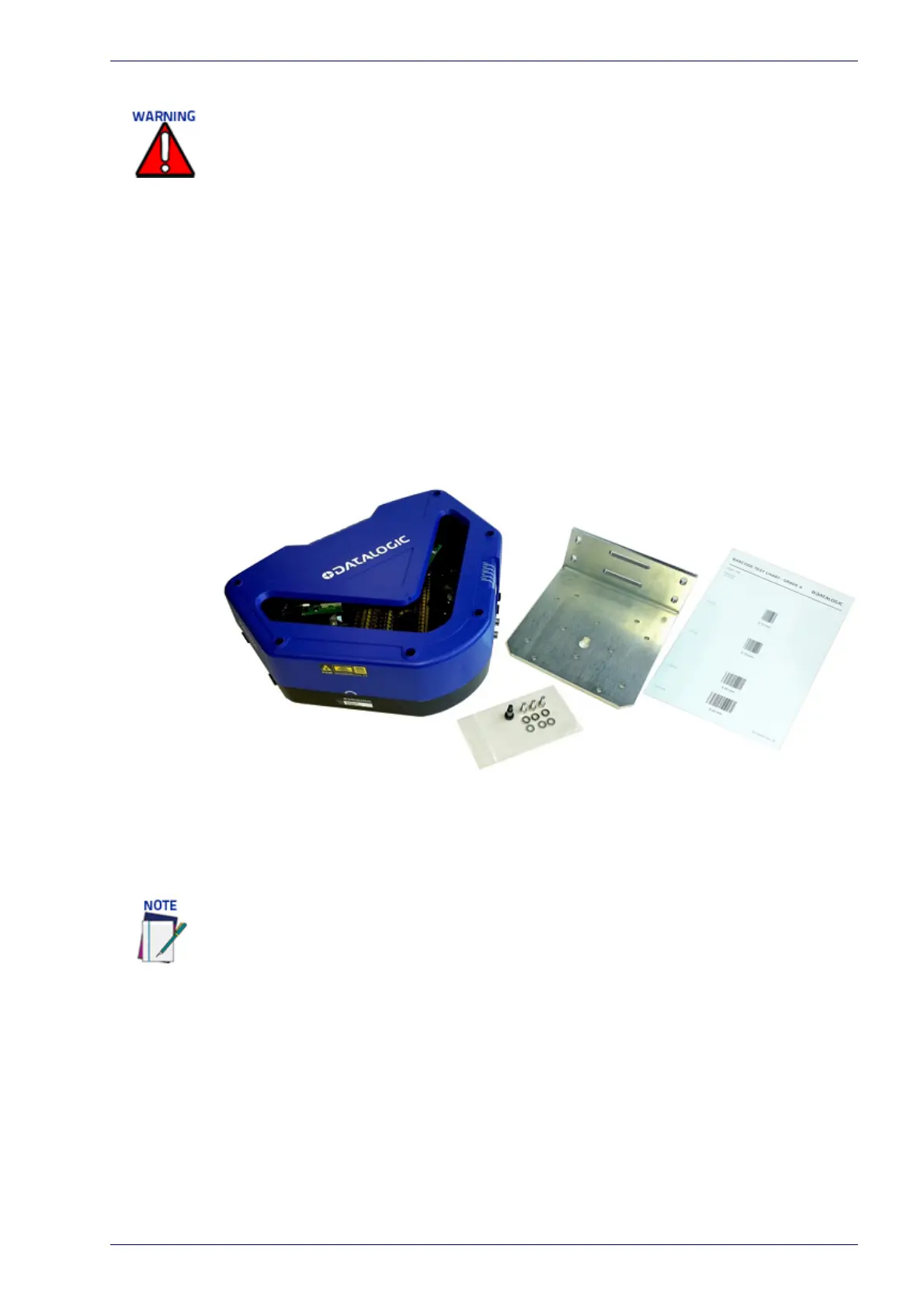

Verify that the DX8210 barcode scanners and all the parts supplied with the
equipment are present and intact when opening the packaging; the list of parts
includes:
• DX8210 reader
•L-bracket
•Mounting screws and washers
• Shoulder screw
•Barcode Test Chart
Installation Sequence
To complete mechanical installation and setup, you must:
• Review the details of your application’s requirements
• Erect mounting structure or other supporting structures
• Determine and mark the Mounting Bracket location(s)
• Mount the bracket to the mounting structure
• Mount the DX8210 to its mounting bracket
• Mount the photoelectric sensor to the mounting structure (optional)
• Mount the tachometer to the mounting structure (optional)
• Mount the CBX connection box to the mounting structure
When installing several scanners, take care to position them so that no laser beam
enters the reading window of other scanners. This condition could occur more fre-
quently for side mounted applications. If these precautions are not followed, read rate
could be negatively affected. To resolve this problem, it is sufficient to slightly change
the inclination and position of one of the two scanners involved if possible.
Everything should be MECHANICALLY INSTALLED before performing any ELECTRICAL
INSTALLATION.
See Chapter 3 Electrical Installation for electrical installation details.
