User Interface
168
DX8210 Barcode Scanner

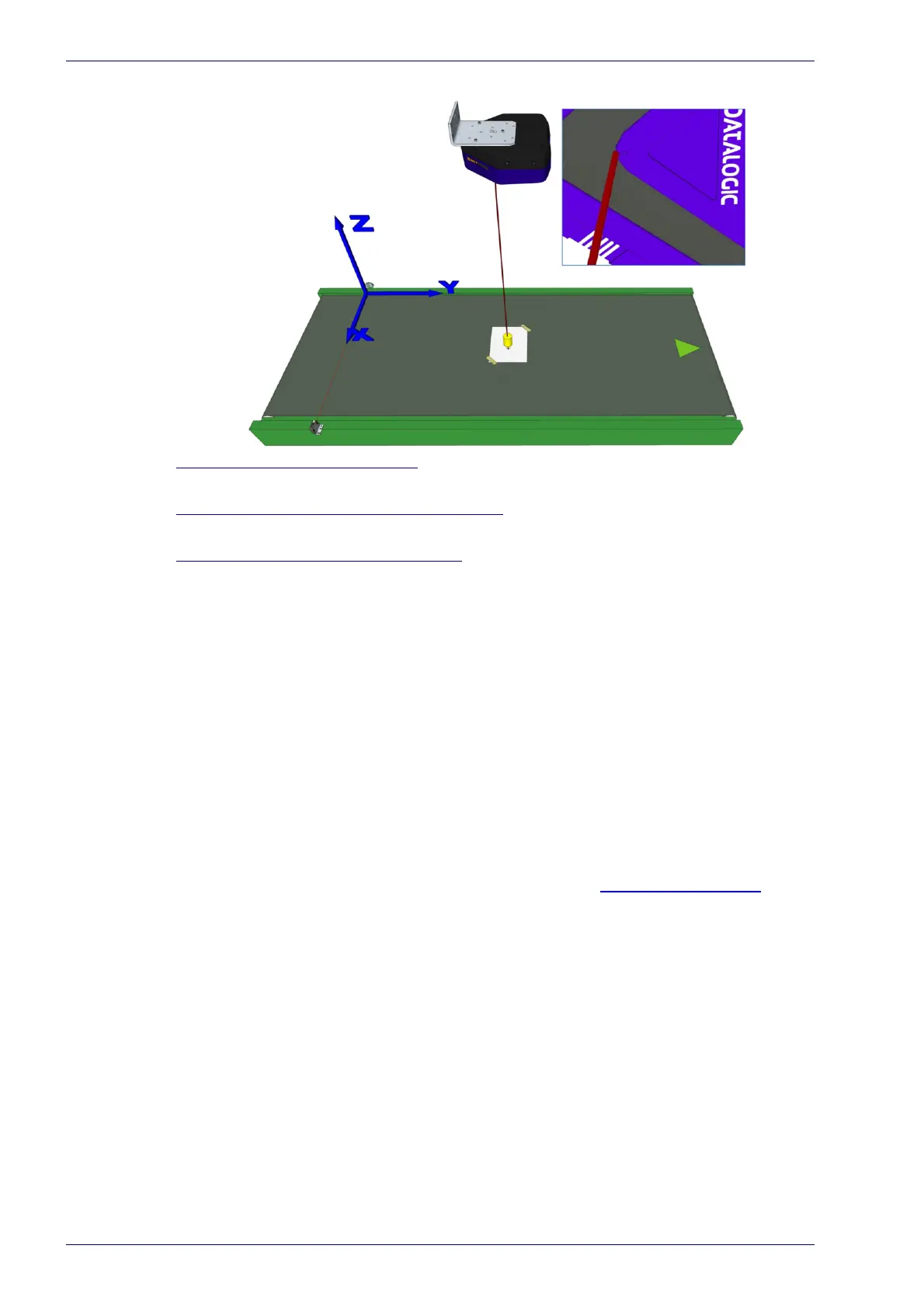

Y Offset (Distance from Trigger)
Enter the distance value in the field provided.
X Offset (Across the Conveyor - OPTIONAL)
Enter the distance value in the field provided.
Z Offset (Scanner Height - OPTIONAL)
Enter the height value in the field provided. The Z measurement is taken from the
DX8210 to the belt surface.
3. When you have finished making changes, click Update All to save all pend-
ing changes, click Reset All to revert to all previously saved values, and click
Reset Page to revert to previous saved values on the current page.
PackTrack™ Calibration Wizard
PackTrack™ is a patented operating mode for Datalogic Omni-Directional Read-
ing Stations used to read and correctly assign codes read on different packs
when placed in the scanner Reading Area at the same time.
For complete instructions on setting up your scanners using PackTrack,
see the
DX8210 and DS8110 Reference Manuals
, available at www.datalogic.com.
