Basic Installation with SC5000 Controller
Reference Manual 195
6. After the scanner(s), SC5000, and accessories have been carefully wired,
apply power to the system.
7. When everything is powered up, connect a laptop to the CFG port on the
fron
t of the SC5000. In a open (non-ring) system, the laptop can be con-
nected to ETH2 of the scanner.
8. Open a browser and enter the defau
lt IP (192.168.3.100,
see section .).
e-
Genius ope
ns.
9. Log on to e-Genius
(see section
.).

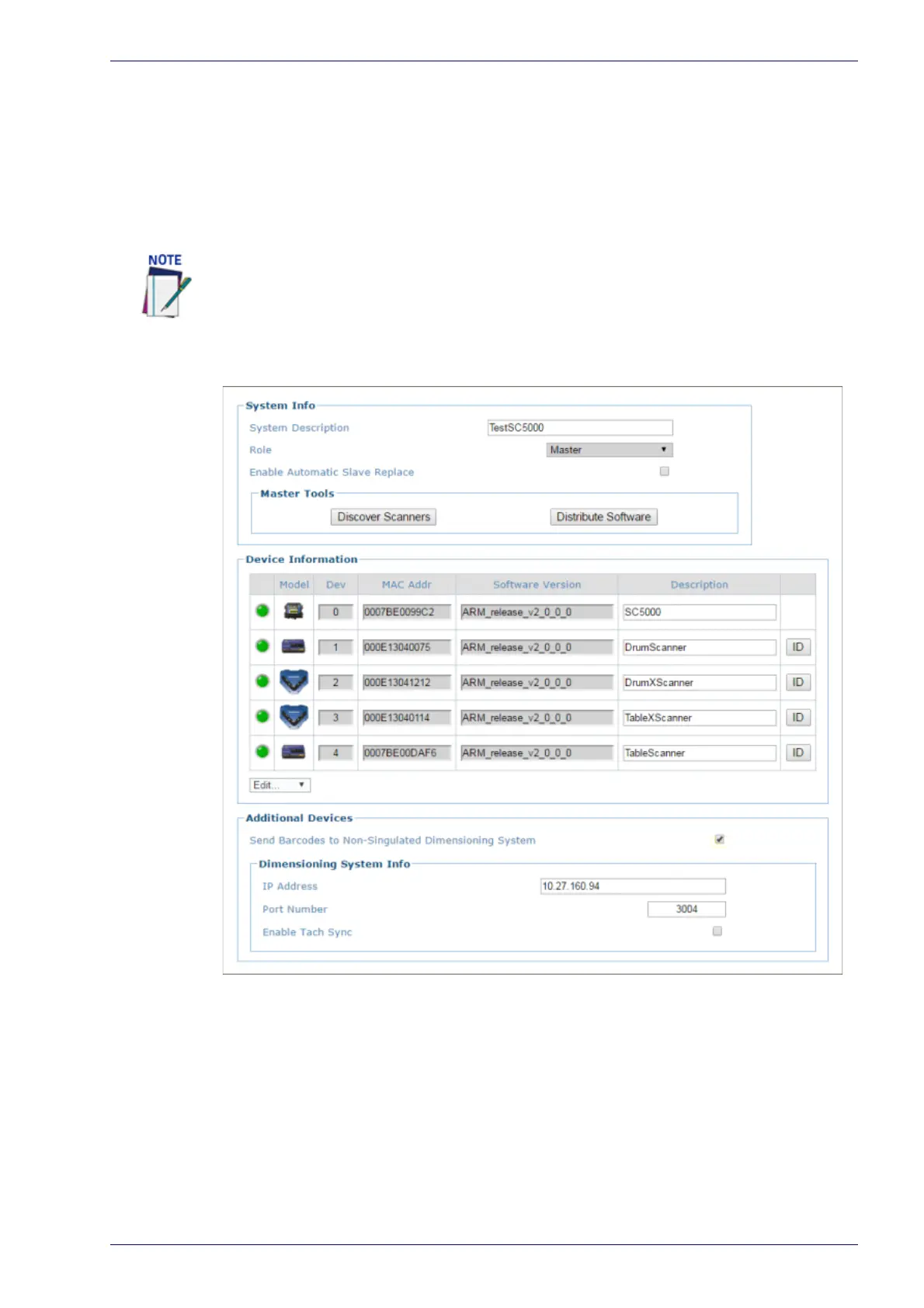

10. From the menu tree, select Modify
Settings | System Info.
11. If Master is selected, the system is poled, and the other scanners are added
to the Device information list. The SC5000 Controller always serves as the
Master when used.
12. From M
odify Settings | Global Settings | Operating Mode, select a mode,
trigger source, encoder setting.
Detailed information on connecting a laptop to the system and using e-Genius is avail-
able in Chapter .
