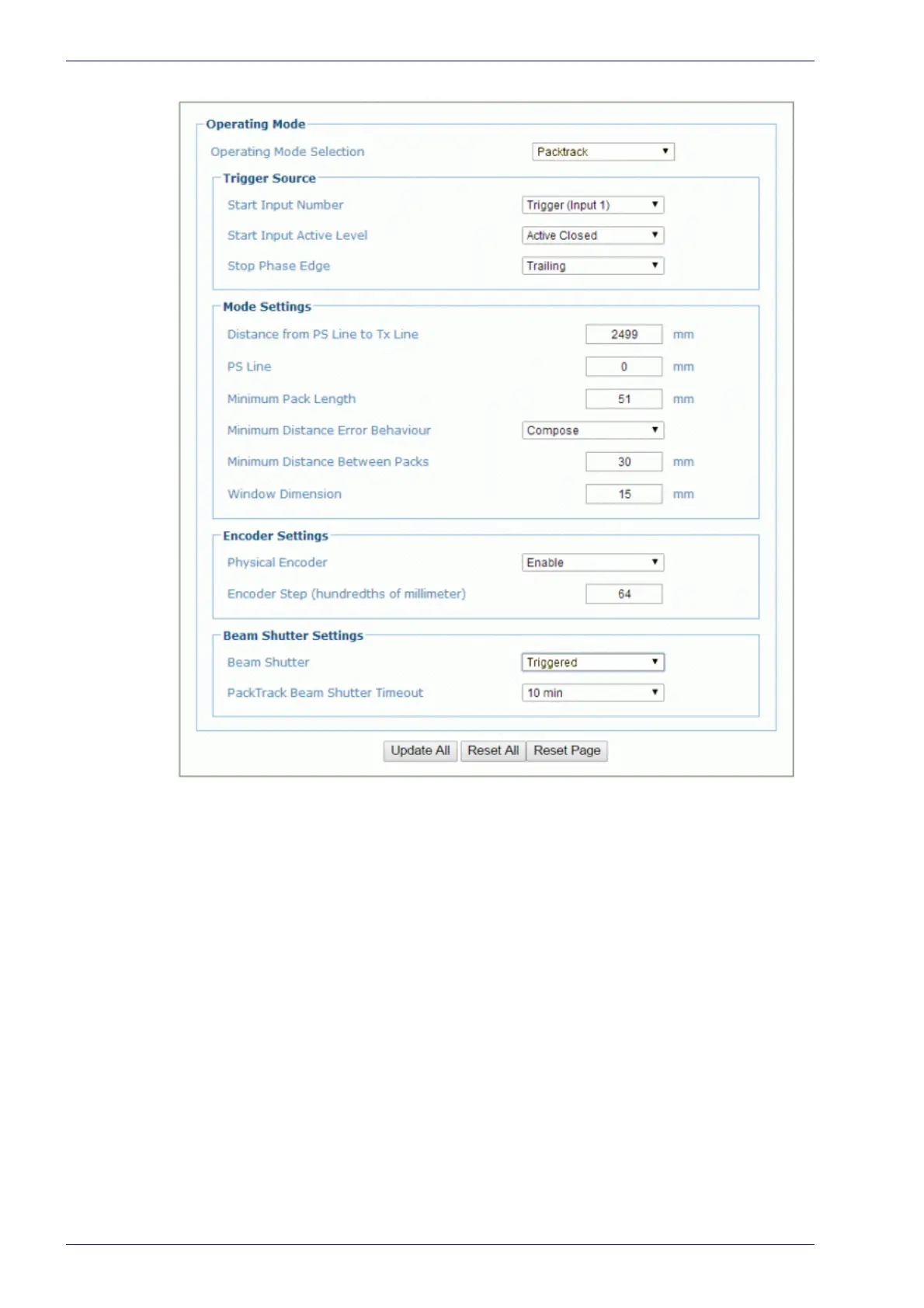

Barcode Scanning Features
196
DX8210 Barcode Scanner
13.
Adjust the barcode setti
ngs in
Modify Settings | Global Settings | Barcode
Settings
Table
according to the needs of
your system.
14.
Adjust the barcode setti
ngs in
Modif
y Settings | Global Settings | Barcode
Settings
Table
according to the needs of
your system.
