as a 32 bit word. The user can specify the byte ordering of this word. If any
non-numeric (not ASCII ‘0’ to ‘9’ or leading or trailing space) characters are
contained in the barcode, the numeric value is zero.
ASCII Message Byte Swap
Select the check box to enable the function. Available when Binary is selected from
the Message Format drop-down list. When ASCII messages are in use, the ASCII
Message Byte Swap selection will swap the high and low byte of data within each 16
bit word. This is useful for processing data on some Programmable Controllers.
Binary Message Byte Order
Select Little Endian or Big Endian from the drop-down list. Available when Binary
is selected from the Message Format drop-down list.
Little Endian: The least significant byte (little end) of the data is positioned at
the byte with the lowest address.
Big Endian: The most significant byte (big end) of the data is positioned at the
byte with the lowest address.

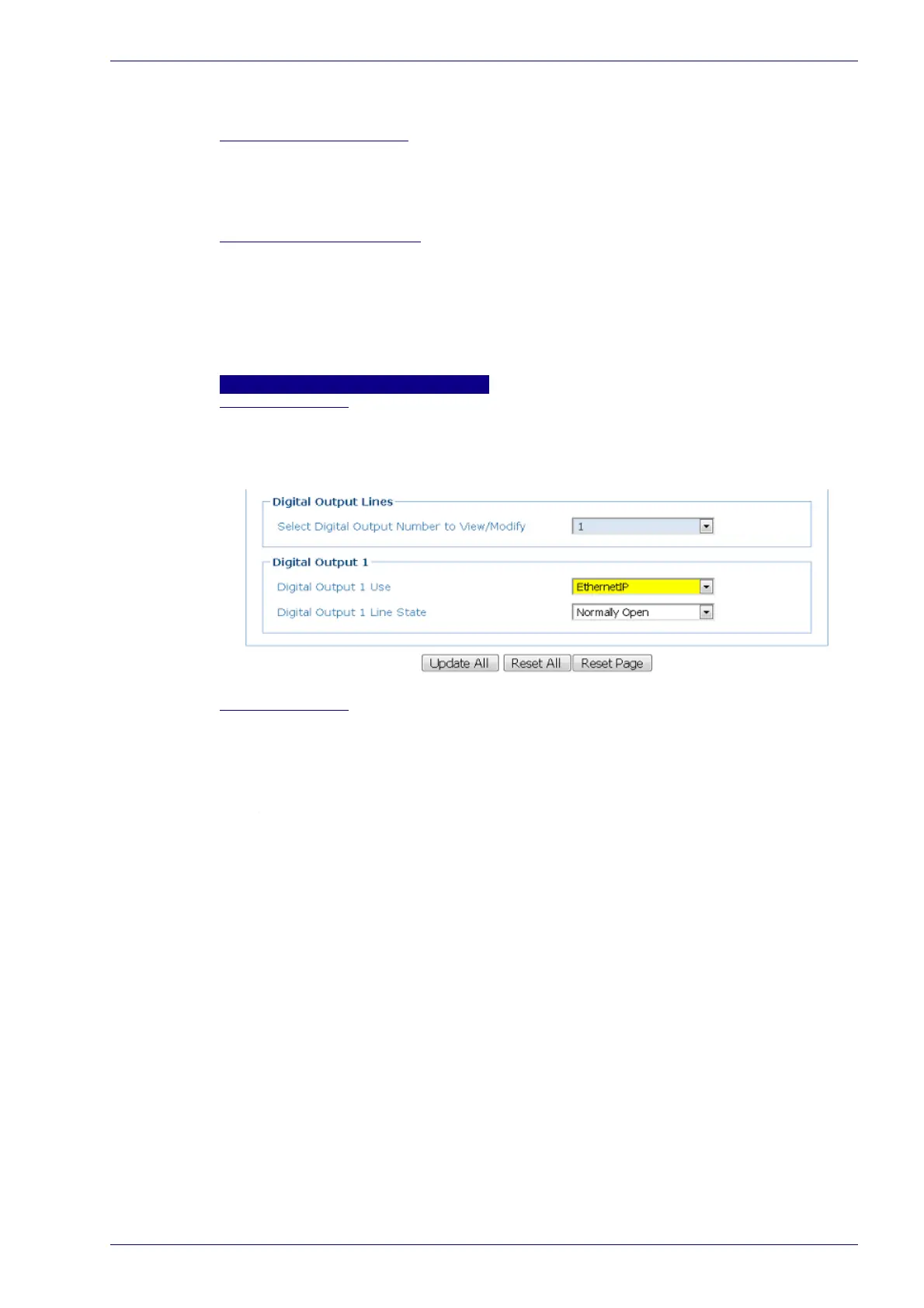

Digital Output Lines
Control Output 1
This parameter is configurable only if Digital Output 1 Use is set to EthernetIP.
Select Disable or Enable from the drop-down list. If enabled, it allows the Ethernet
Client to drive the Scanner Master or SC5000 Controller Output 1 via bit 0 in Byte
OutputBits of the DL_OutputStruct.
Control Output 2
This parameter is configurable only if Digital Output 2 Use is set to EthernetIP.
Select Disable or Enable from the drop-down list. If enabled, it allows the Ethernet
Client to drive the Scanner Master or SC5000 Controller Output 2 via bit 1 in Byte
OutputBits of the DL_OutputStruct.
3. When you have finished making changes, click Update All to save all pend-
ing changes, click Reset All to revert to all previously saved values, and click
Reset Page to revert to previous saved values on the current page. 0.
