Barcode Scanning Features
222
DX8210 Barcode Scanner

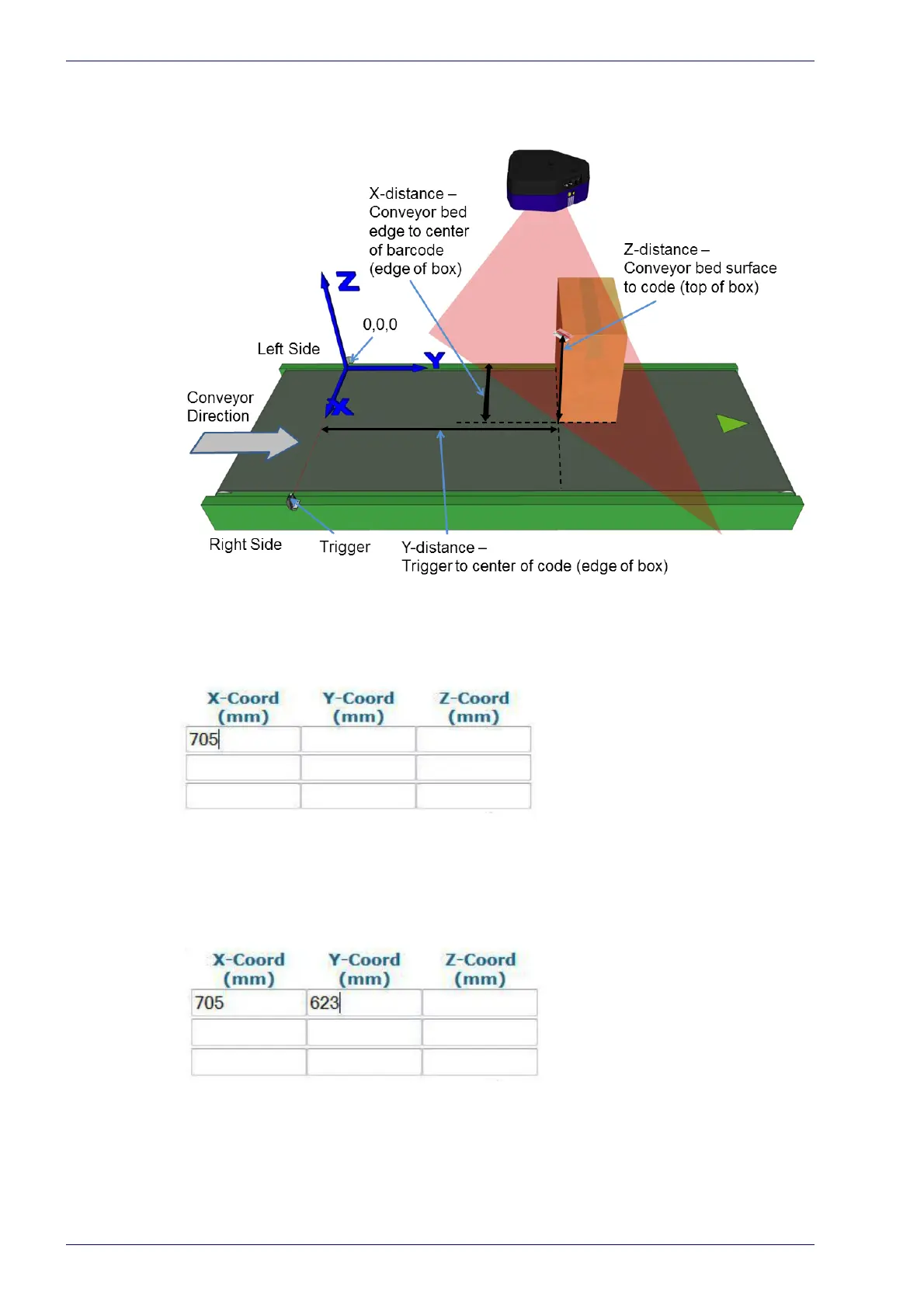

20. Rotate the tall system box 90-degrees and make sure the laser (leg 2) is
centered on the barcode on its top corner, as shown in the illustration
below.
21. Measure the distance for X from the left edge of the conveyor bed to the
center of the barcode (edge of box), and enter that distance in the first box
under X-Coord (mm).
Your measurements will likely differ from those shown below.
22. Measure the distance for Y from the trigger (PS line) to the barcode scan-
ner's laser line on the barcode (edge of box), and enter that distance in the
first
box under Y-Coord (mm).
Your measurements will likely differ from those shown below.
23. Measure the distance for Z from the conveyor bed to the barcode, and enter
that distance in the first box under
Z-Coord (mm).
Your measurements will likely differ from those shown below.
