Delta MH300 Series - Page 103

Chapter 7 Optional AccessoriesMH300
7-38

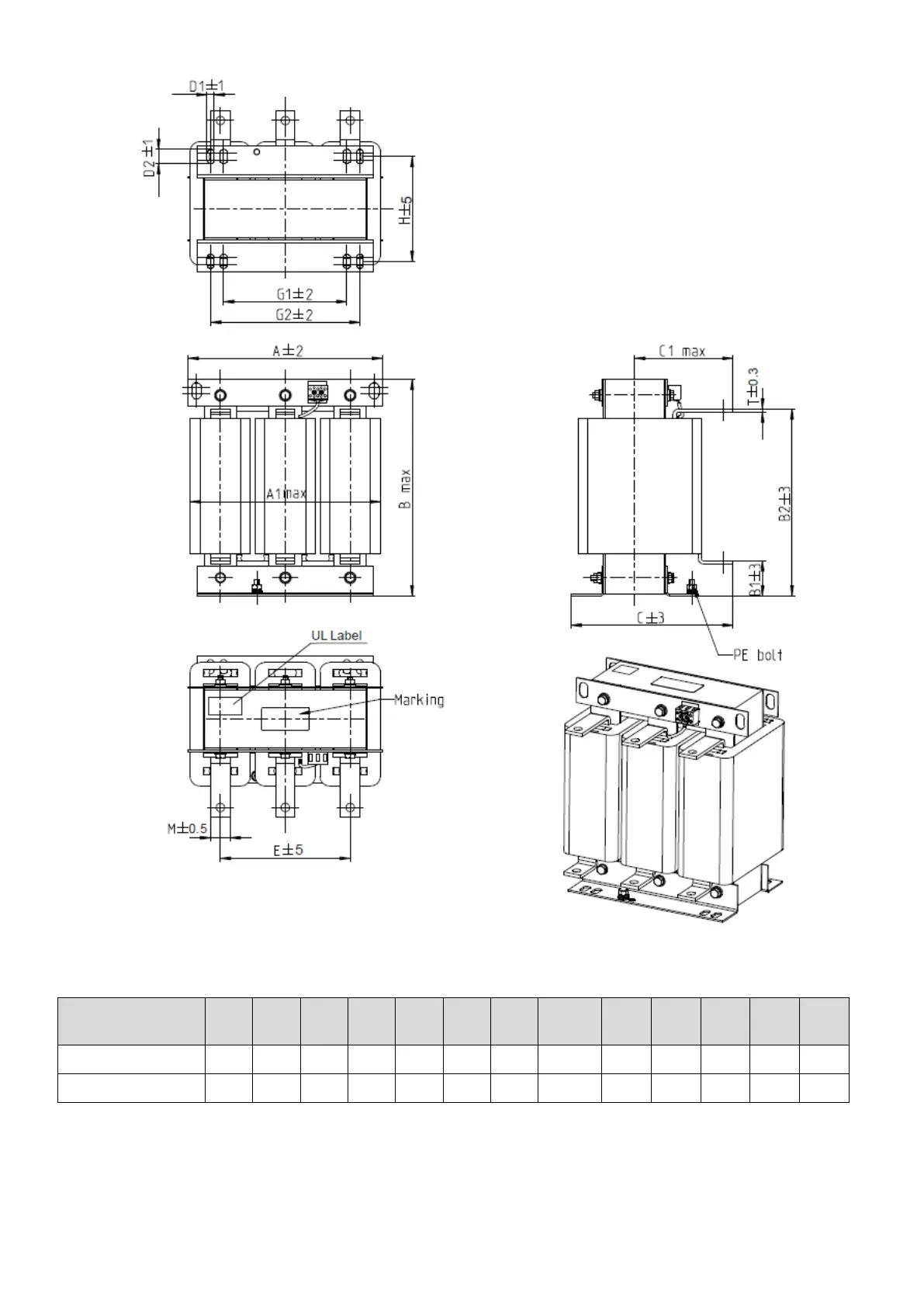

Fig. 7-26
Unit: mm
Delta’s Part No. -
AC Output Reactor
A A1 B B1 B2 C C1 D1*D2 E G1 G2 H M*T
DR150LP162 270 264 265 51 208 192 125 10*18 176 200 / 118 30*3
DR180LP135 300 295 310 55 246 195 125 11*22 200 230 190 142 30*3
Table 7-44
