Chapter 7 Optional AccessoriesMH300
7-39

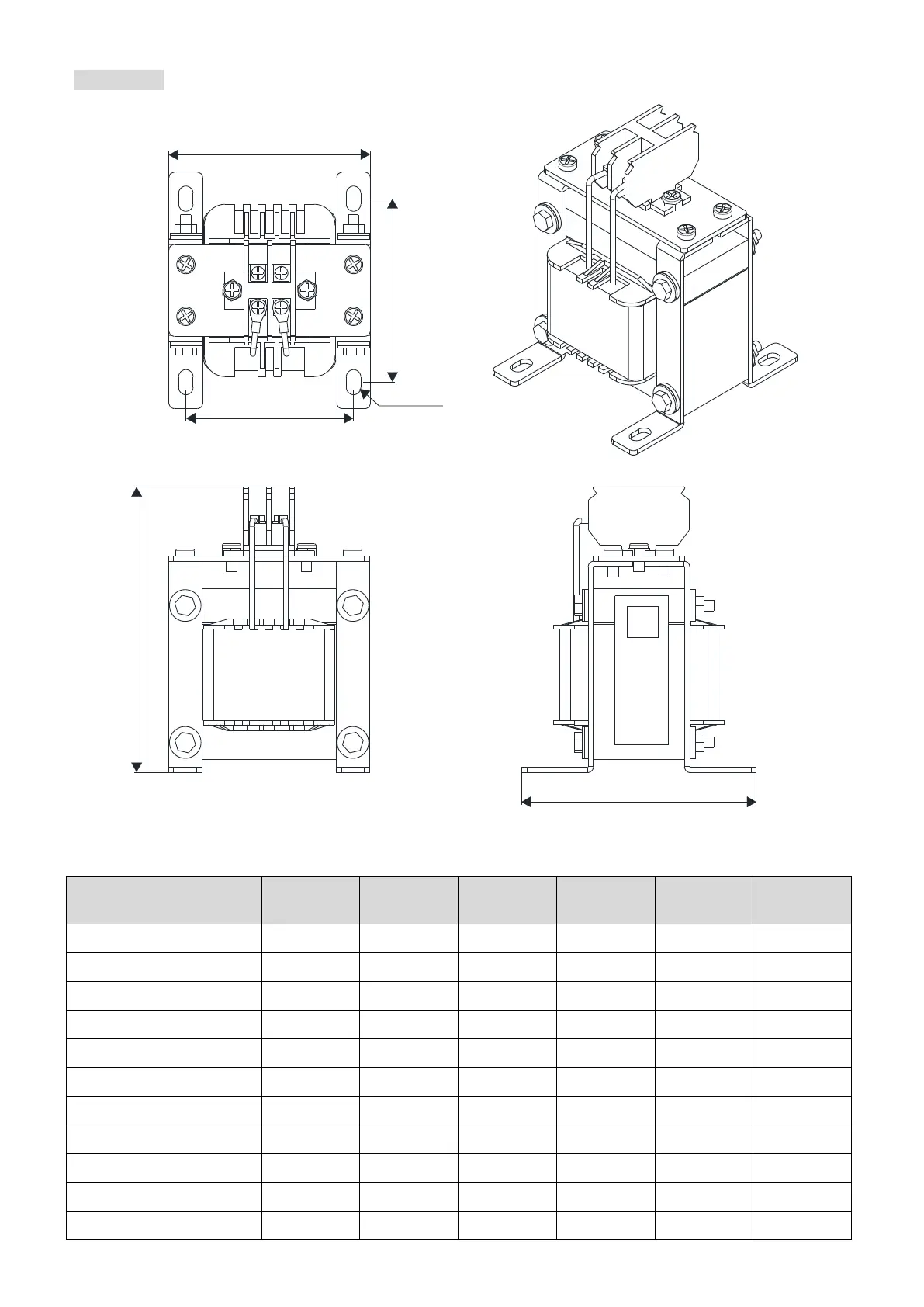

DC Reactor
Fig. 7-27
Unit: mm
Delta’s Part No. -
DC Reactor
A B C D E R
DR005D0585 79 78 112 64±2 56±2 9.5*5.5
DR008D0366 79 78 112 64±2 56±2 9.5*5.5
DR011D0266 79 92 112 64±2 69.5±2 9.5*5.5
DR017D0172 79 112 112 64±2 89.5±2 9.5*5.5
DR025D0117 99 105 128 79±2 82.5±2 9.5*5.5
DR033DP851 117 110 156 95±2 87±2 10*6.5
DR049DP574 117 120 157 95±2 97±2 10*6.5
DR065DP432 117 140 157 95±2 116.5±2 10*6.5
DR075DP391 136 135 178 111±2 112±2 10*6.5
DR090DP325 136 135 179 111±2 112±2 10*6.5
DR003D1870 79 78 112 64±2 56±2 9.5*5.5
C
A
D
E
B
R
