Delta MH300 Series

To Next Page

To Previous Page

Chapter 1 IntroductionMH300

1-6

Built-in EMC filter models

Frame B–F

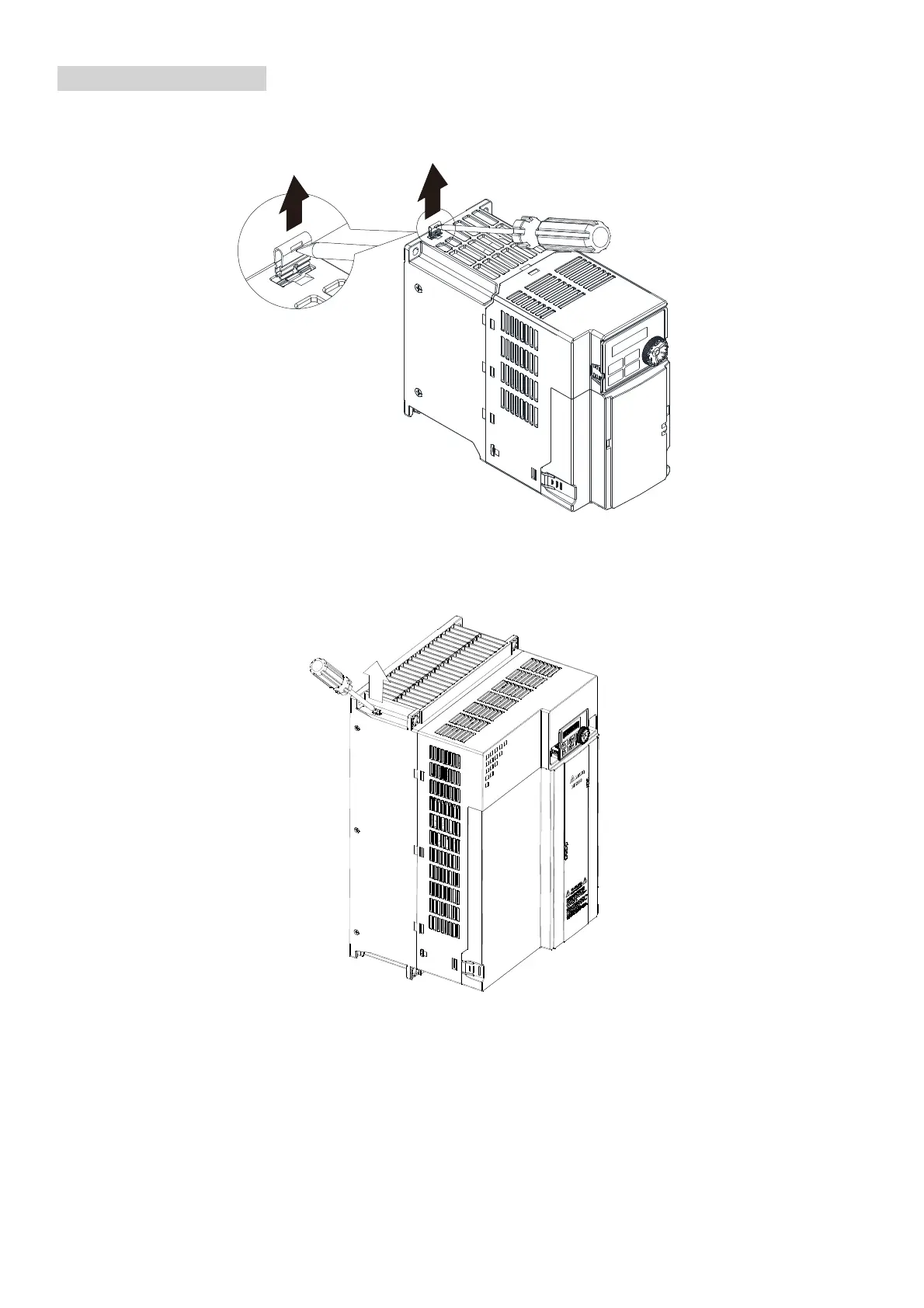

Remove the RFI jumper with a screwdriver (as shown below).

Frame G

Remove the RFI jumper with a screwdriver (as shown below).


