Delta MH300 Series - Page 158

Chapter 7 Optional AccessoriesMH300
7-93
Use the Up / Down keys to select the parameters to check or to change.
Press ENTER to enter the parameter.

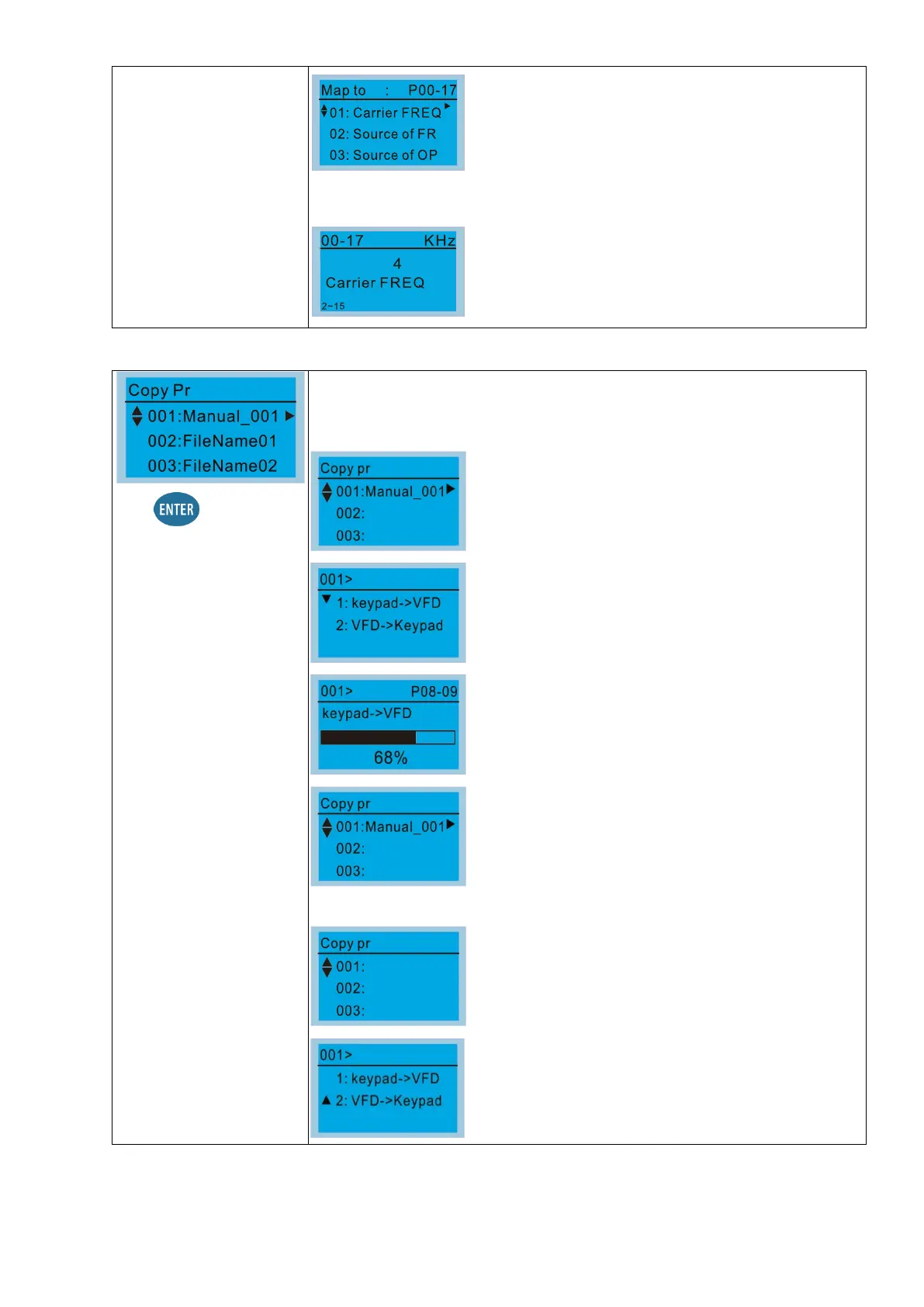

5. Copy Parameter
Press to go to 001–
004 content storage
Four groups of parameters are available to copy
The steps are shown in the example below.
Example: parameter saved in the motor drive.
1. Go to Copy Parameter
2. Select the parameter group to copy and press
ENTER.
1. Select 1: keypad
VFD
2.
Press ENTER to go to the “keypadVFD” screen.
Begin copying parameters until it is done.
After copying is done, the keypad automatically
returns
to this screen.
Example: parameter saved in the keypad.
1.
Go to Copy parameter
2. Select the parameter group to copy and press ENTER.
Press ENTER to go to the
“VFDkeypad” screen.
