Chapter 8 Option CardsMH300
8-3

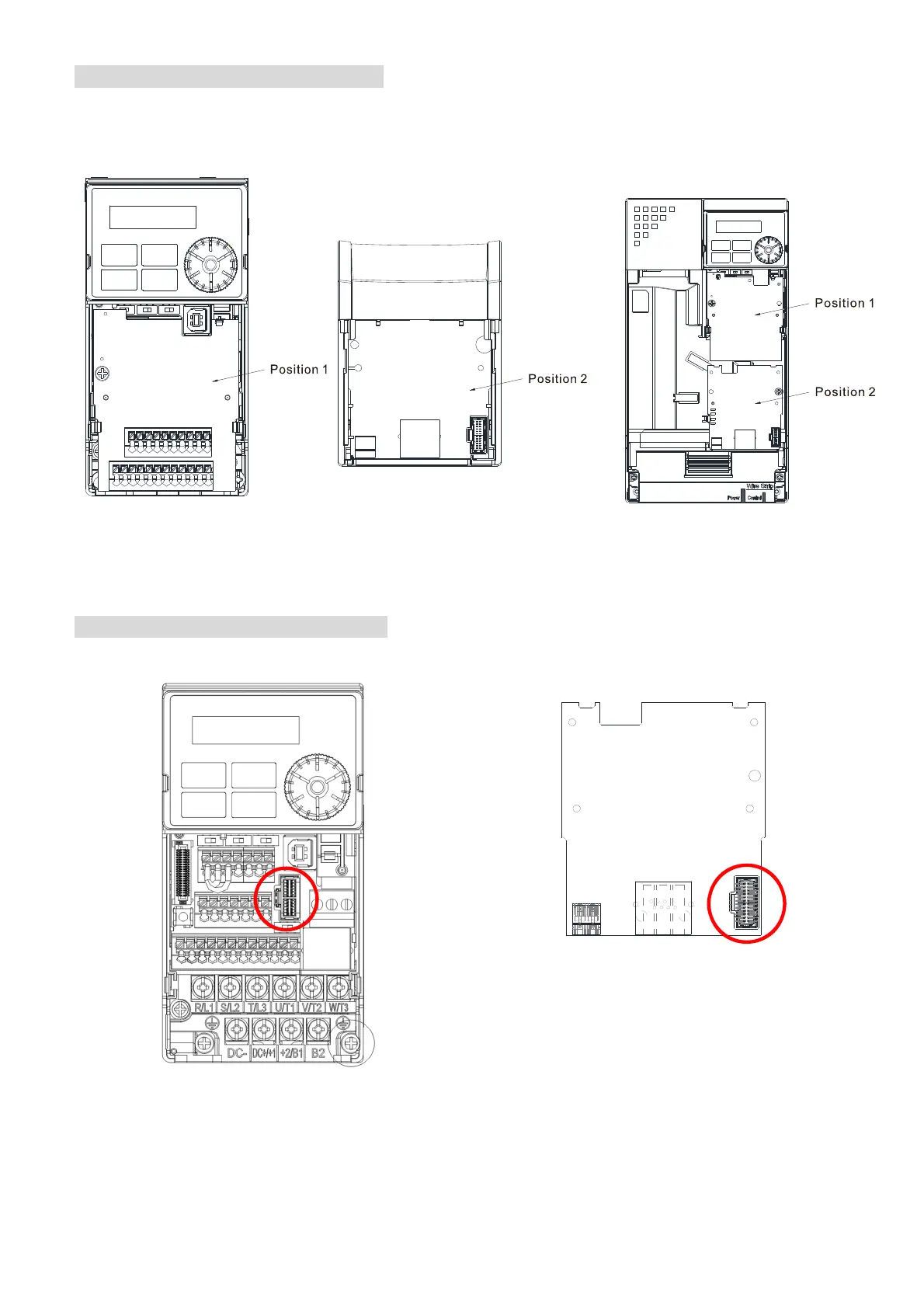

Mounting Position of Option Cards
Frame A–D
Mounting position 1, 2 (Option card installing kit)
Frame E–I
Mounting position 1, 2
(Option card installing kit)
Figure 8-1
Figure 8-2
NOTE: Position 2 is only applicable for the installation of communication cards and power extension card.
The Wiring of Communication Card
MH300 Control Board Connector Option Card Connector
Figure 8-3
Figure 8-4
NOTE: Do not misuse the cables for the communication cards and for the power card. You must read
the descriptions on the cables before wiring.
