Chapter 8 Option CardsMH300
8-4
Communication Card Cables
To correctly use the communication cards, you must purchase the communication card along
with the connection cables. Check your communication card models first. Then, select your applicable
connection cables according to the mounting positions by different frames. Two cable length are
available for your choice. See the table below to select your applicable communication card cables.
Communication Card
CMM-DN02, CMM-EIP02,
CMM-EIP03, CMM-PD02,
CMM-COP02
CMM-EC02 *
Frame
Mounting
Position 1
Mounting
Position 2
Mounting
Position 1
Mounting
Position 2
Model of Cable Model of Cable Model of Cable Model of Cable
A
CBM-CL01A
CBM-CC01A
CBM-CL01A
CBM-CL01A
B
CBM-CC02A
CBM-CL02A
C
CBM-CL02A CBM-CL02A
D
E
CBM-CL02A
F
G
H
I

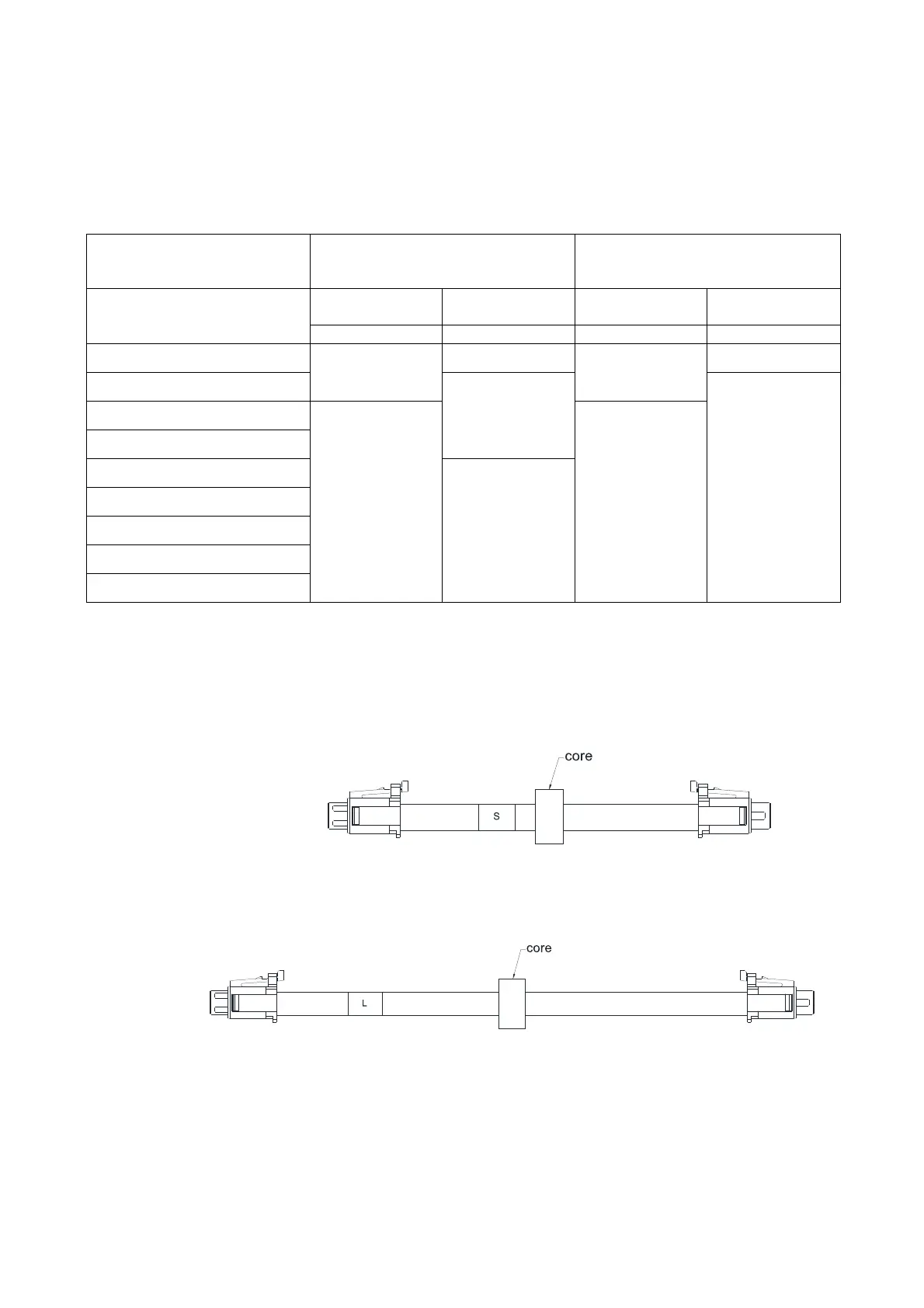

Table 8-2
NOTE: An option card mounting box is included upon purchasing the communication card CMM-
EC02, you need to purchase it with CBM-CL01A or CBM-CL02A.
CBM-CL01A
CBM-CC01A
Figure 8-5
CBM-CL02A
CBM-CC02A
Figure 8-6
NOTE: There is a mounting box included for the model named with CBM-CCxxA.
