Chapter 8 Option CardsMH300
8-5

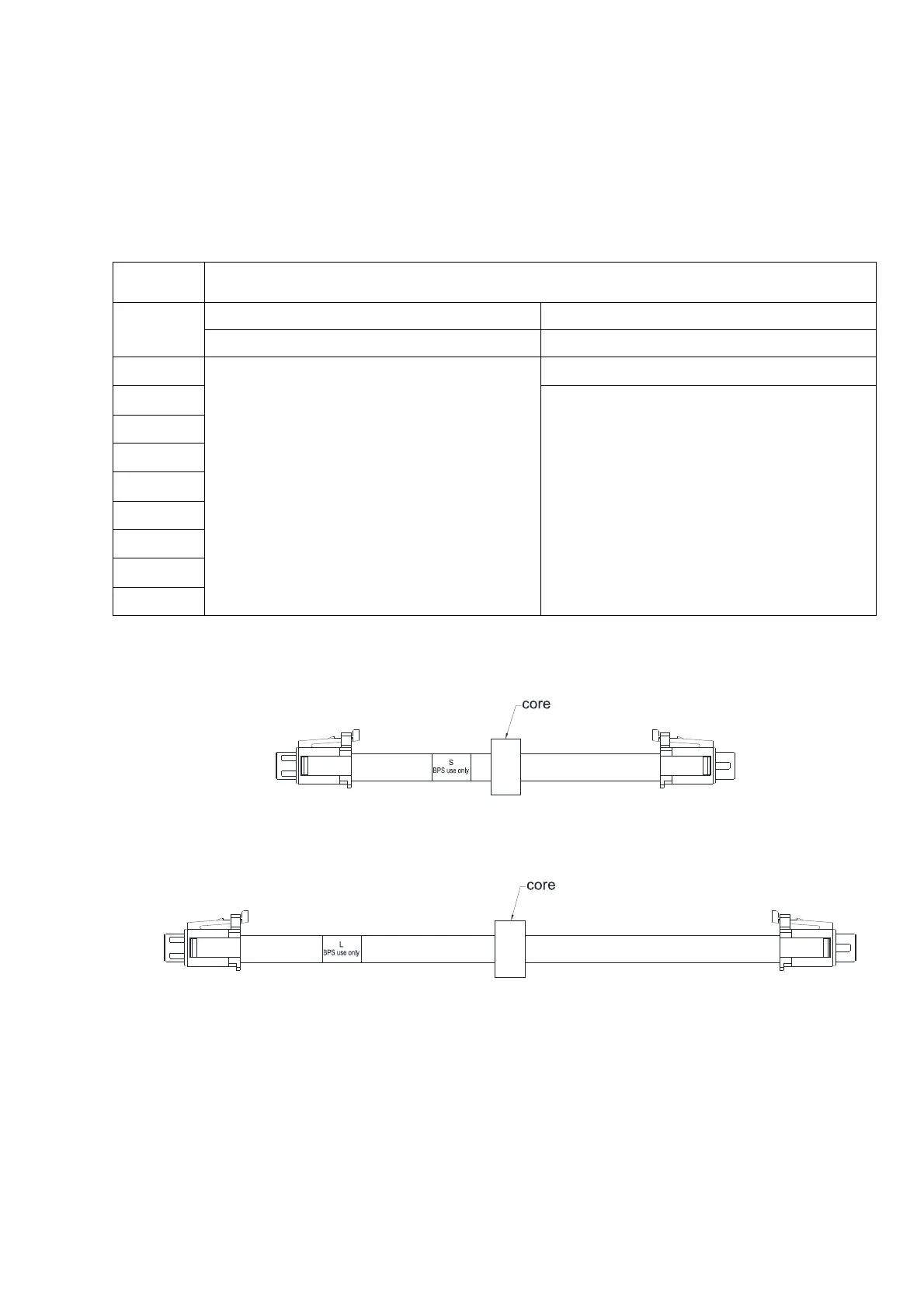

Power Card Cables
An option card mounting box, a connector and cables with two different lengths are included
when you purchase the power card EMM-BPS02 (DC 24 V backup power supply card), so you do
not need to purchase it with the connection cables. “BPS use only” and “# S” or “# L” are marked on
the EMM-BPS02 power card cable. See the table below to select your applicable power card cables
according to different mounting positions.
Power
Card
EMM-BPS02
Frame
Mounting Position 1 Mounting Position 2
Model of Cable Model of Cable
A
Connector
# S
B
# L
C
D
E
F
G
H
I
Table 8-3
# S
Figure 8-7
Figure 8-8
# L
To Next Page
