Chapter 8 Option CardsMH300
8-6
8-1-1 PG / I/O / RELAY Card - Mounting Position 1
Installation method: Front-mounting the option card, by inserting to a connector on the control board.

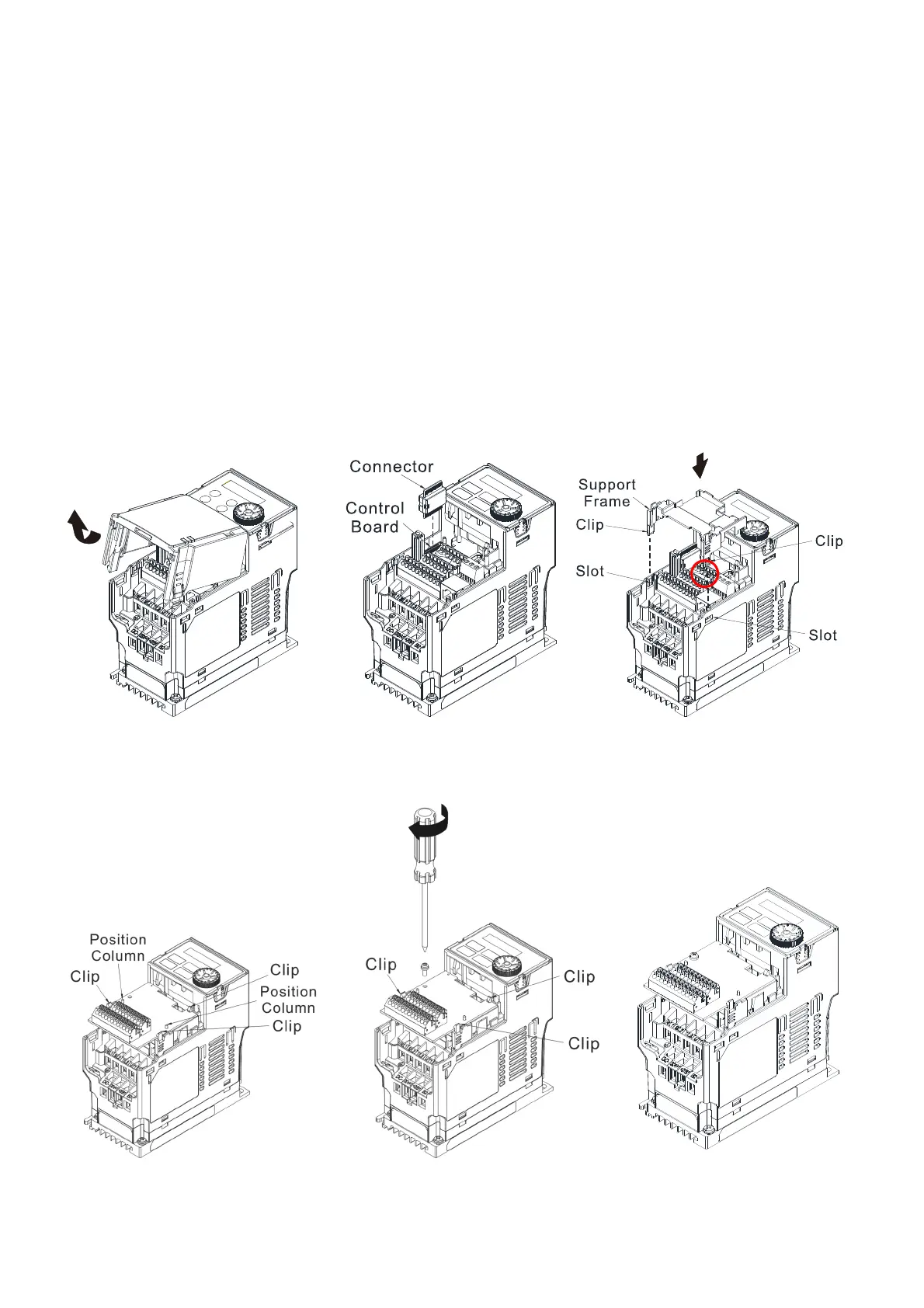

1. As shown in the Figure 8-9, switch off the power of the motor drive, and then remove the front cover.
2. Mounting the connector: as shown in the Figure 8-10, aim the option card at the connector on the
control board and then insert it to the connector.
3. Assembling support frame: as shown in the Figure 8-11, aim the two clips at the two slots on the motor
drive and then press downward to have the two clips engage the slots.
4. Assembling the option card: As shown in the figure 8-12, have the terminal block of the option facing
up, aim the two holes of the option card to the position column and press downard so that the three
clips are engage the option card.
5. As shown in the Figure 8-13, make sure that three clips are properly engage the option card and then
fasten the screw [Suggested torque value: 4–6 kg-cm / (3.5–5.2 lb-in.) / (0.39–0.59 Nm)].
6. As shown in the Figure 8-14, assembly is completed.
Figure 8-9 Figure 8-10
Figure 8-11
Figure 8-12 Figure 8-13
Figure 8-14
