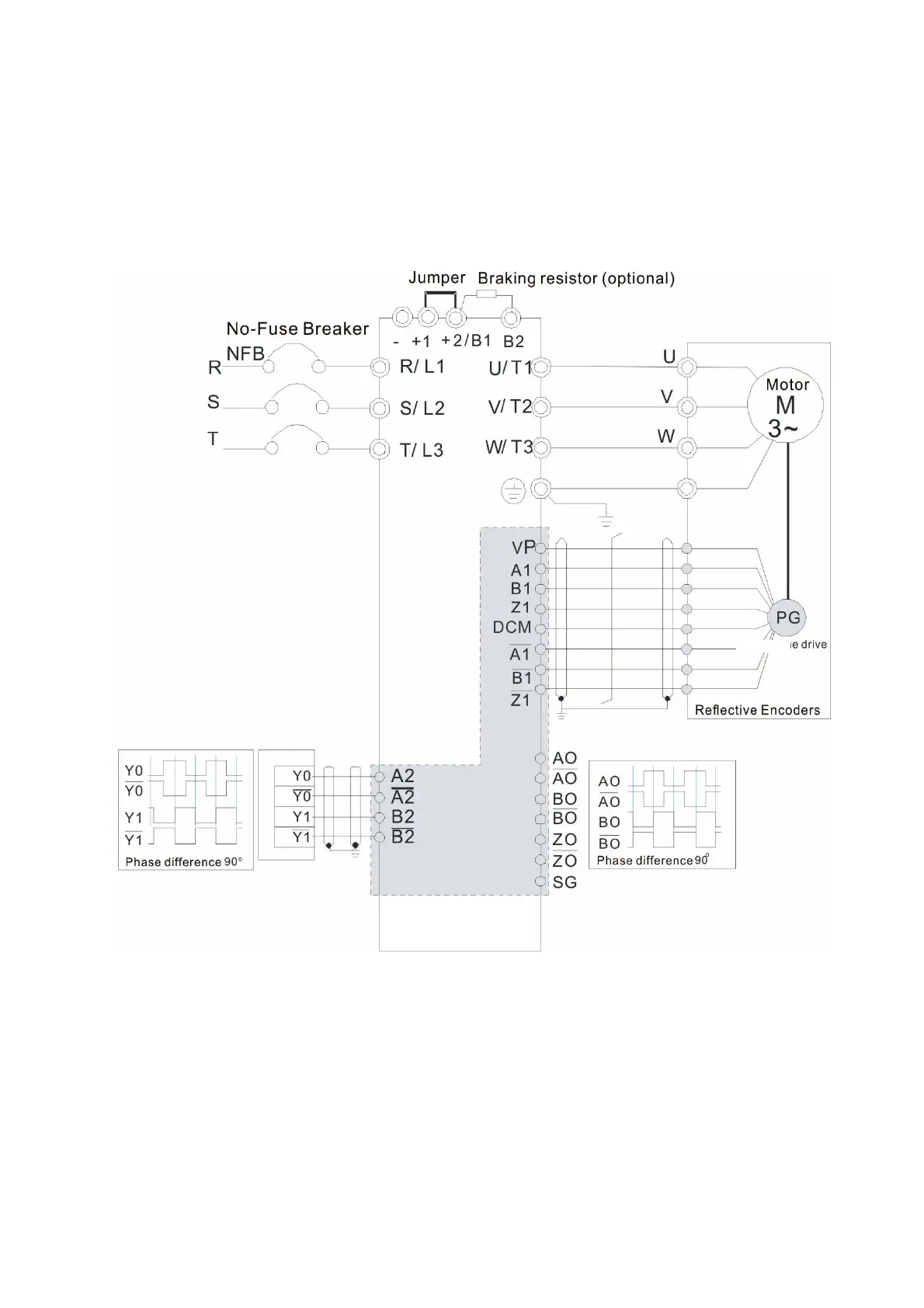

8-2-3 EMM-PG01L Wiring Diagram

Use a shielded cable to prevent interference.
Do not run control wires parallel to any high voltage AC power line (200 V
AC
and above).

Recommended wire size: 0.0509–1.31 mm
2
/ (30–16 AWG).

Cable length: less than 100 m
Figure 8-49
EMM-PG01L
Line driver
