Chapter 8 Option CardsMH300
8-43
LED Status Indication
LINK-OUT Green
ON Network connection is in normal status
Flashes Network is in operation
OFF Doesn’t connect to network
Table 8-48

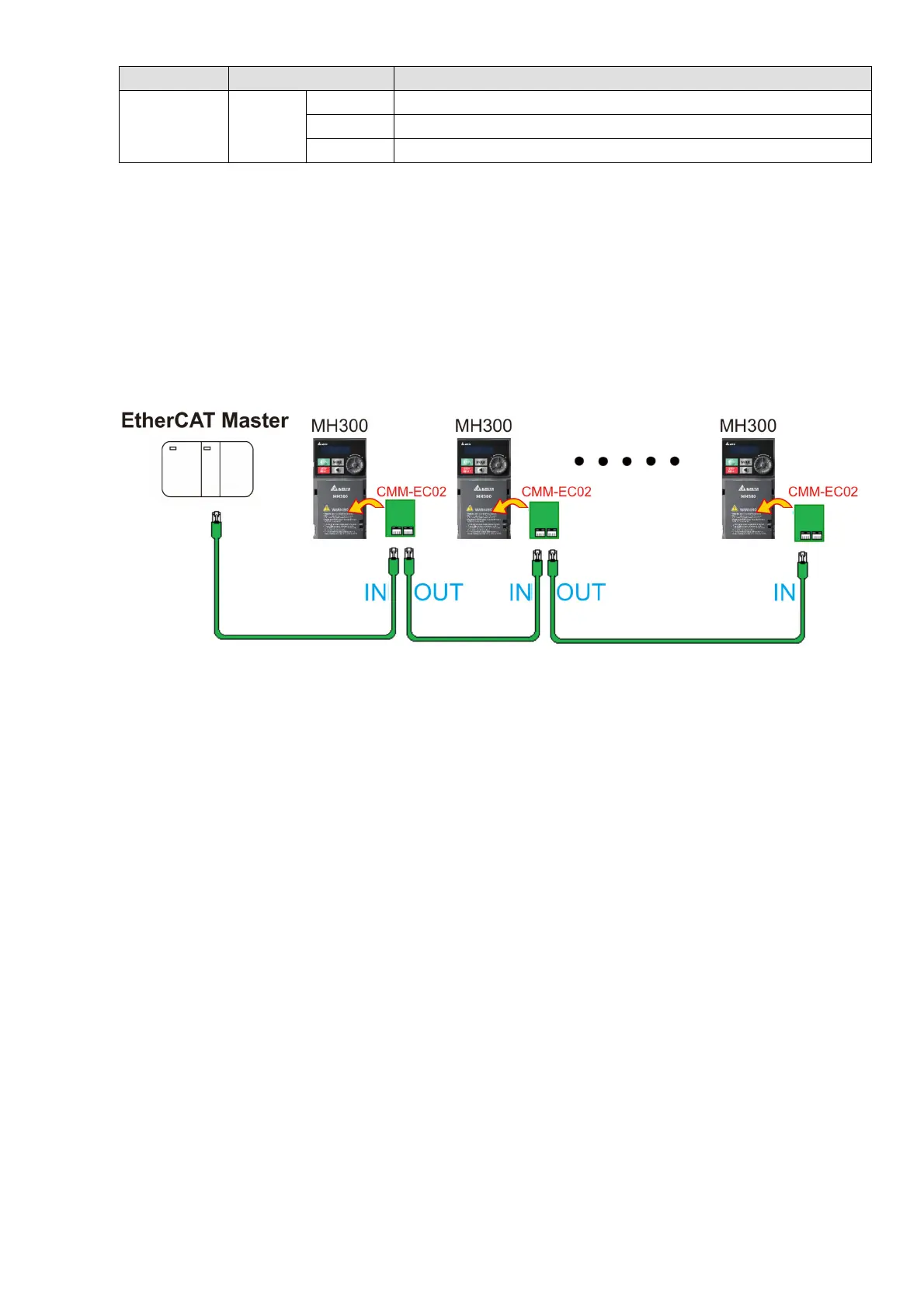

8-14-6 Network Connection
Pay attention to the connection method for EtherCAT because its packet delivery is directional.
When front-mounting the communication card, the delivery direction for CMM-EC02 is from left (IN)
to right (OUT). The diagram below shows the correct wiring for front-mounting CMM-EC01.
Front-mounting the communication card:
Figure 8-91
After finishing assembling the hardware, supply power to the drive. Then, Pr.09-60 on the
drive should display “EtherCAT”, with a current value of 6. If not, make sure your version of the
drive is correct (MH300 needs firmware version 1.02 or later) and verify if the communication
card is correctly connected.
