Chapter 9 Specification
MH300
9-14

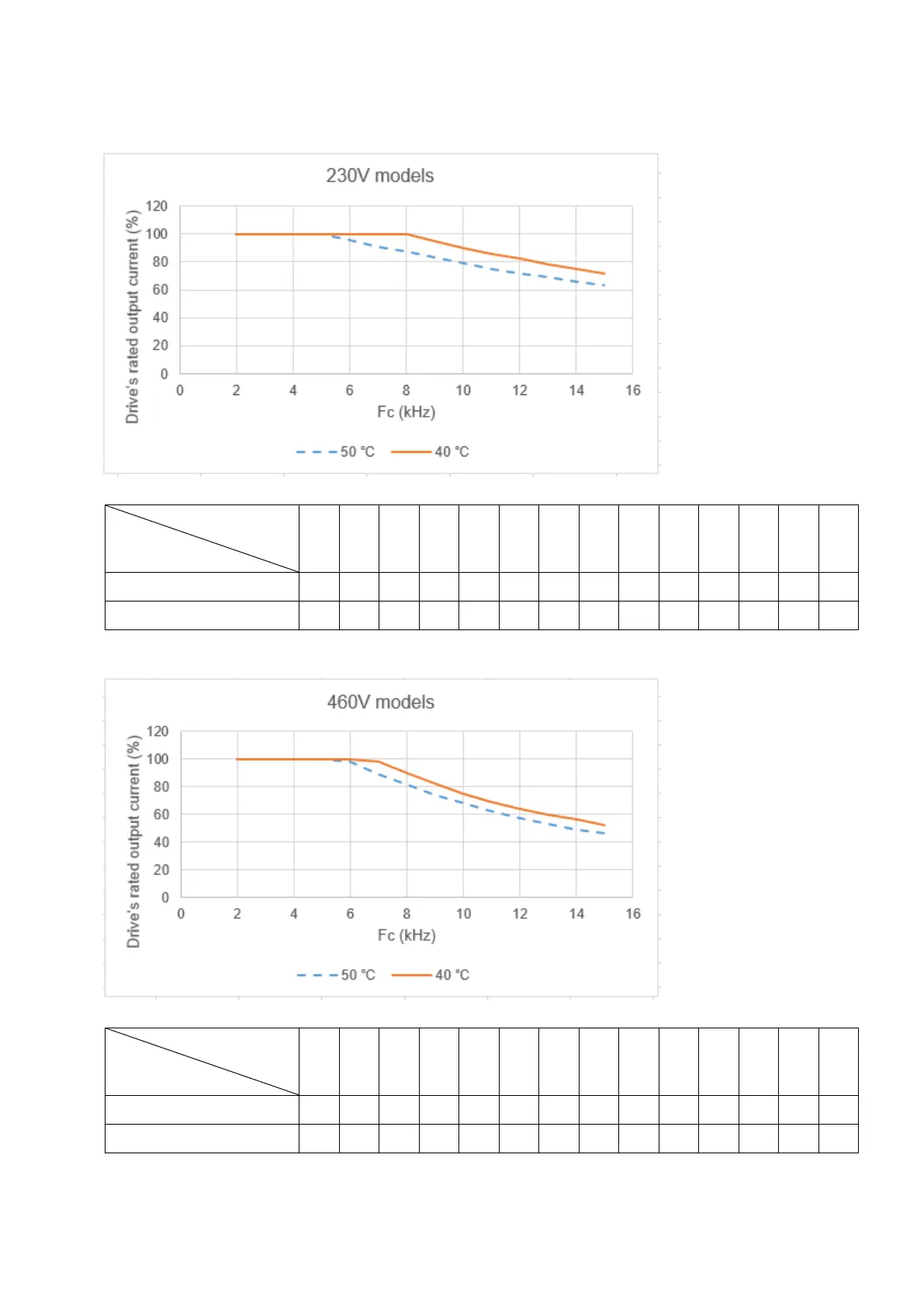

Heavy duty (Pr.00-16 = 1)
 Space vector pulse width modulation (SVPWM) mode
230V models
Fig. 9-7
In heavy duty, the rated output current of SVPWM mode in different carrier frequency. (Unit: %)
Fc (kHz)
Ambient
temperature (Ta)
100% load
2 3 4 5 6 7 8 9 10 11 12 13 14 15
50°C 100 100 100 100 96 91 87 83 79 75 72 69 66 63
40°C 100 100 100 100 100 100 100 95 90 86 82 78 75 72
Table 9-20
460V models
Fig. 9-8
In heavy duty, the rated output current of SVPWM mode in different carrier frequency. (Unit: %)
Fc (kHz)
Ambient
temperature (Ta)
100% load
2 3 4 5 6 7 8 9 10 11 12 13 14 15
50°C 100 100 100 100 98 89 81 74 68 62 57 53 49 46
40°C 100 100 100 100 100 98 90 82 75 69 64 60 56 52
Table 9-21
