02-34
Output Frequency Setting for Multi-function Output Terminal
Default: 0.00
Settings 0.00–599.00 Hz

02-58
Multi-function Output Terminal (Function 42): Brake Frequency Check Point
Default: 0.00
Settings 0.00–599.00 Hz
 Use Pr.02-34 with Pr.02-58 for the crane function and select the crane function MO #42 to set the
multi-function outputs Pr.02-13, Pr.02-16, and Pr.02-17.
 When the output frequency (H) is lower than the setting for Pr.02-58, multi-function output terminal
setting 42 stops after the command breaks off.
 Pr.02-58 must be lower than Pr.02-34 when using MO=42.
 Crane application example:

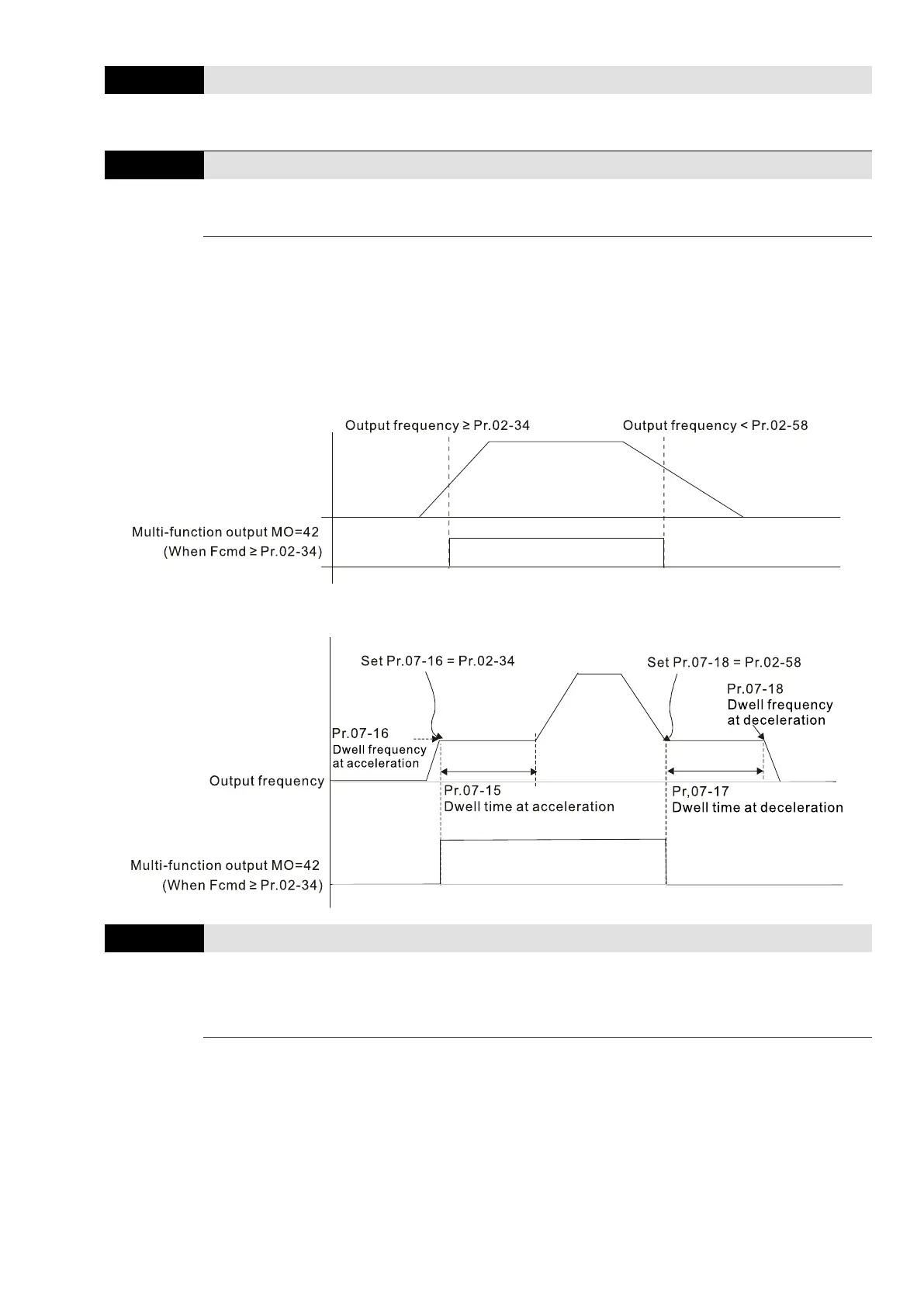

It is recommended that you use this with the Dwell function as shown in the following diagram:

02-35
External Operation Control Selection after Reset and Reboot
Default: 0
Settings 0: Disable
1: Drive runs if the RUN command remains after reset or reboot.
Set value as 1:
Pay attention that the drive will execute the running command by itself in the following status.
 Status 1: After the drive is powered on and the external terminal for RUN stays ON, the drive
runs.
 Status 2: After clearing a fault once a fault is detected and the external terminal for RUN stays
ON, you can run the drive by pressing the RESET key.
