Chapter 12 Description of Parameter Settings

MH300

12.1-08-19

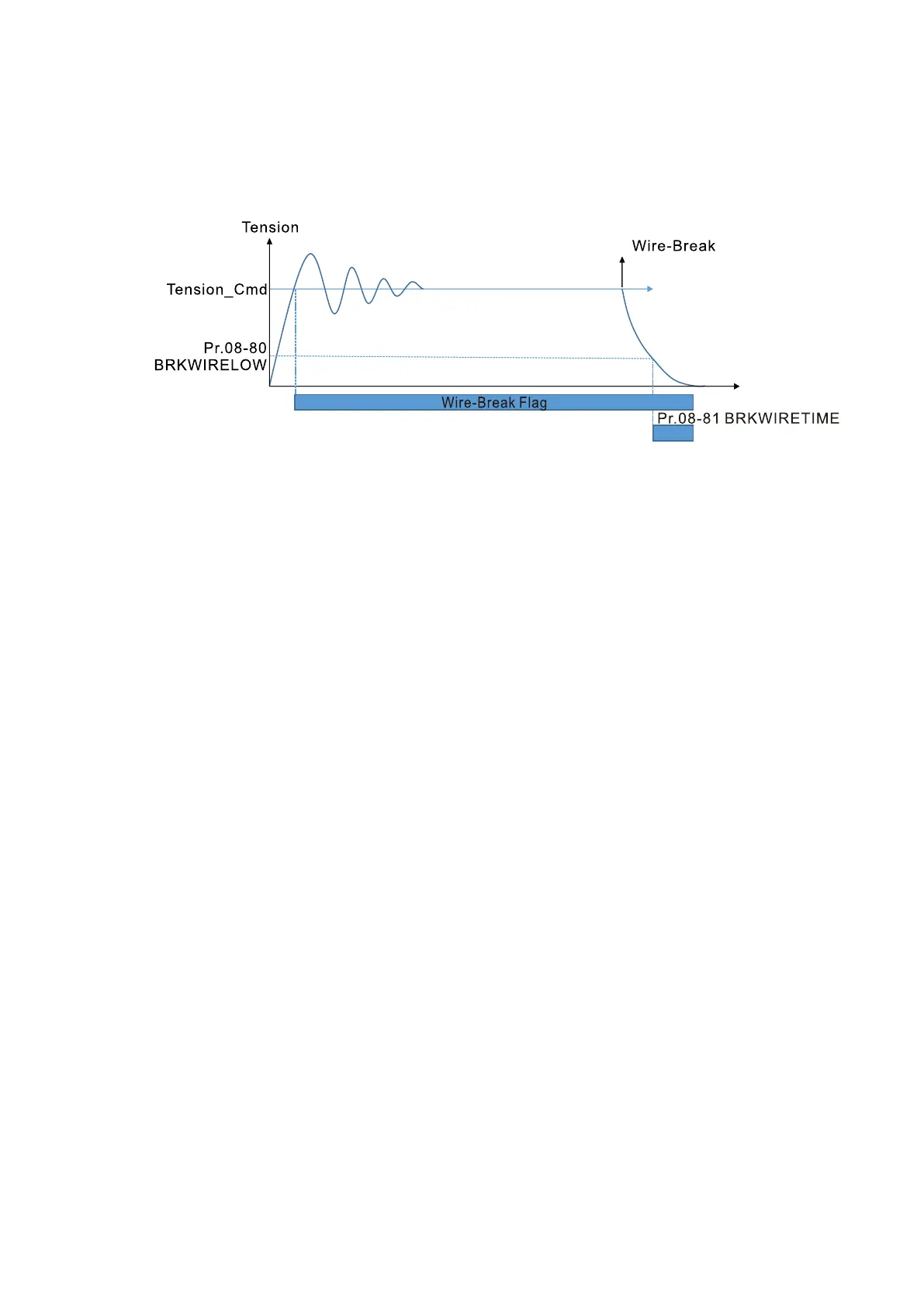

 As shown in the figure, the breaking section is set at the lower level. When WireBreak starting,

the pendulum is at the lower level that the winding condition is not established. When the

pendulum is greater than the command value, the WireBreak condition is established. When the

pendulum reaches the lower level and the count value reaches the setting, the drive stopped

according to Pr.00-22.
