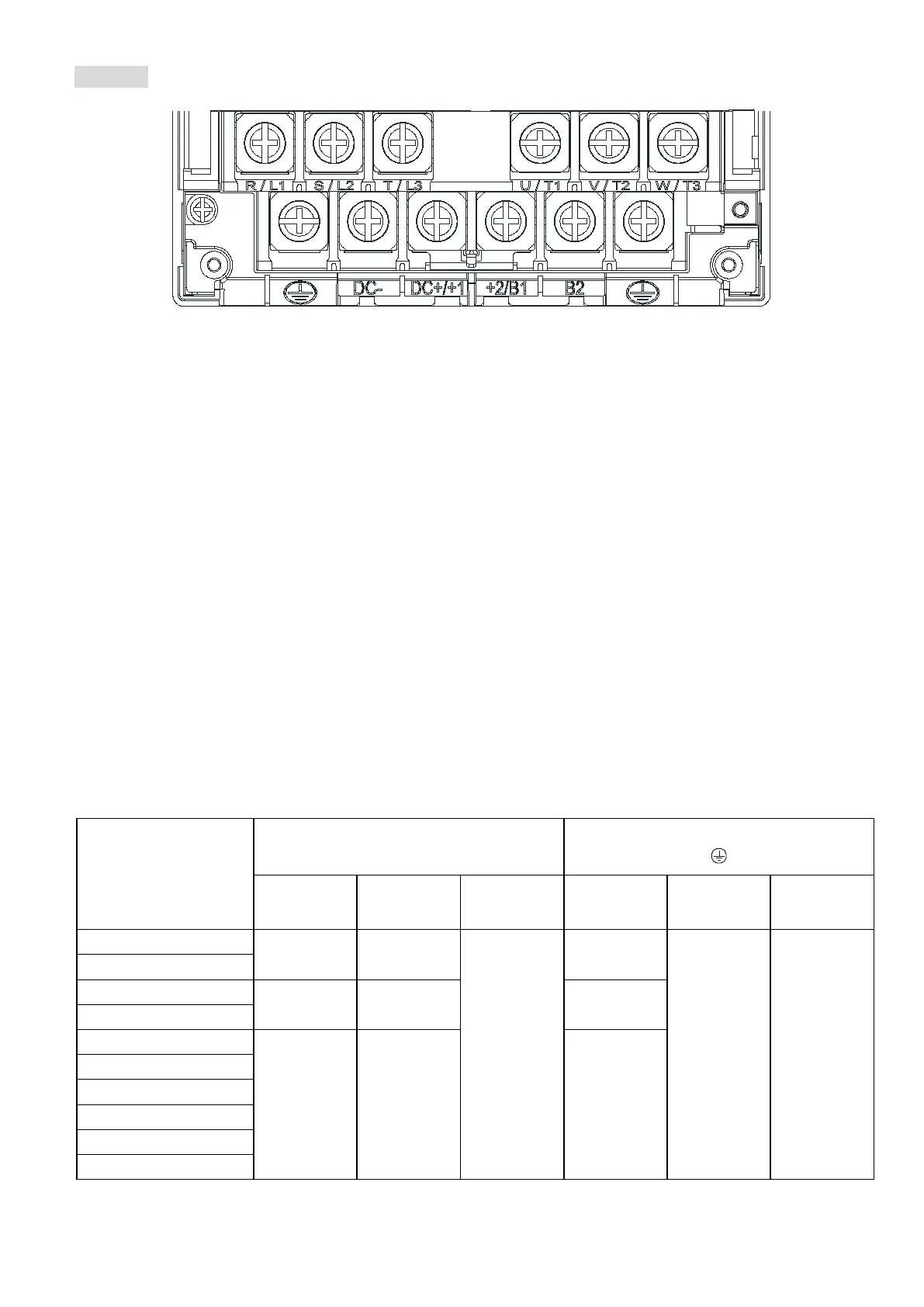

Frame E
 If you install at Ta 50°C
above environment, select copper wire with voltage rating of 600 V and
temperature resistance of 90°C or above.

If you install at Ta 50°C environment, select copper wire with voltage rating of 600 V and temperature
resistance of 75°C or 90°C.
 For VFD33AMH23ANSAA, VFD33AMH23ENSAA models: If you install at Ta 40°C above
environment, select copper wire with voltage rating of 600 V and temperature resistance of 90°C or
above.
 For VFD49AMH23ANSAA, VFD49AMH23ENSAA models: If you install at Ta 35°C above
environment, select copper wire with voltage rating of 600 V and temperature resistance of 90°C or
above.
 For VFD32AMH43ANSAA, VFD32AMH43ENSAA, VFD32AMH43AFSAA models
: If you install at Ta
45°C above environment, select copper wire with voltage rating of 6
00 V and temperature resistance
of 90°C or above.
 For UL installation compliance, use copper wires when installing.
The wire gauge is based on temperature resistance of 75°C
, in accordance with UL requirements
and recommendations. Do not reduce the wire gauge when using high-temperature resistant wires.
 ** These drives must be wired with the specified ring lug dimensions.
Models
Main Circuit Terminals
R/L1, S/L2, T/L3, U/T1, V/T2, W/T3,
DC-, DC+/+1, +2/B1, B2
Terminals
Max. Wire
Gauge
Min. Wire
Gauge
Screw &
Torque
(±10%)
Max. Wire
Gauge
Min. Wire
Gauge
Screw &
Torque
(±10%)
VFD33AMH23ANSAA
16 mm
2
(6 AWG)
16 mm
2
(6 AWG)
M5
25 Kg-cm
(21.7 lb-in.)
(2.45 Nm)
16 mm
2
(6 AWG)
16 mm
2
(6 AWG)
M5
25 Kg-cm
(21.7 lb-in.)
(2.45 Nm)
VFD33AMH23ENSAA
VFD49AMH23ANSAA**
25 mm
2
(4 AWG)
25 mm
2
(4 AWG)
25 mm
2
(4 AWG)
VFD49AMH23ENSAA**
VFD25AMH43ANSAA
16 mm
2
(6 AWG)
16 mm
2
(6 AWG)
16 mm
2
(6 AWG)
VFD25AMH43ENSAA
VFD25AMH43AFSAA
VFD32AMH43ANSAA
VFD32AMH43ENSAA
VFD32AMH43AFSAA
