Delta MH300 Series

Chapter 12 Description of Parameter Settings
MH300
12.1-12-6
12-01
Winding Mode
Default: 0
Settings 0: Rewind
1: Unwind
 When Pr.12-01 = 1, the tension taper function is invalid.

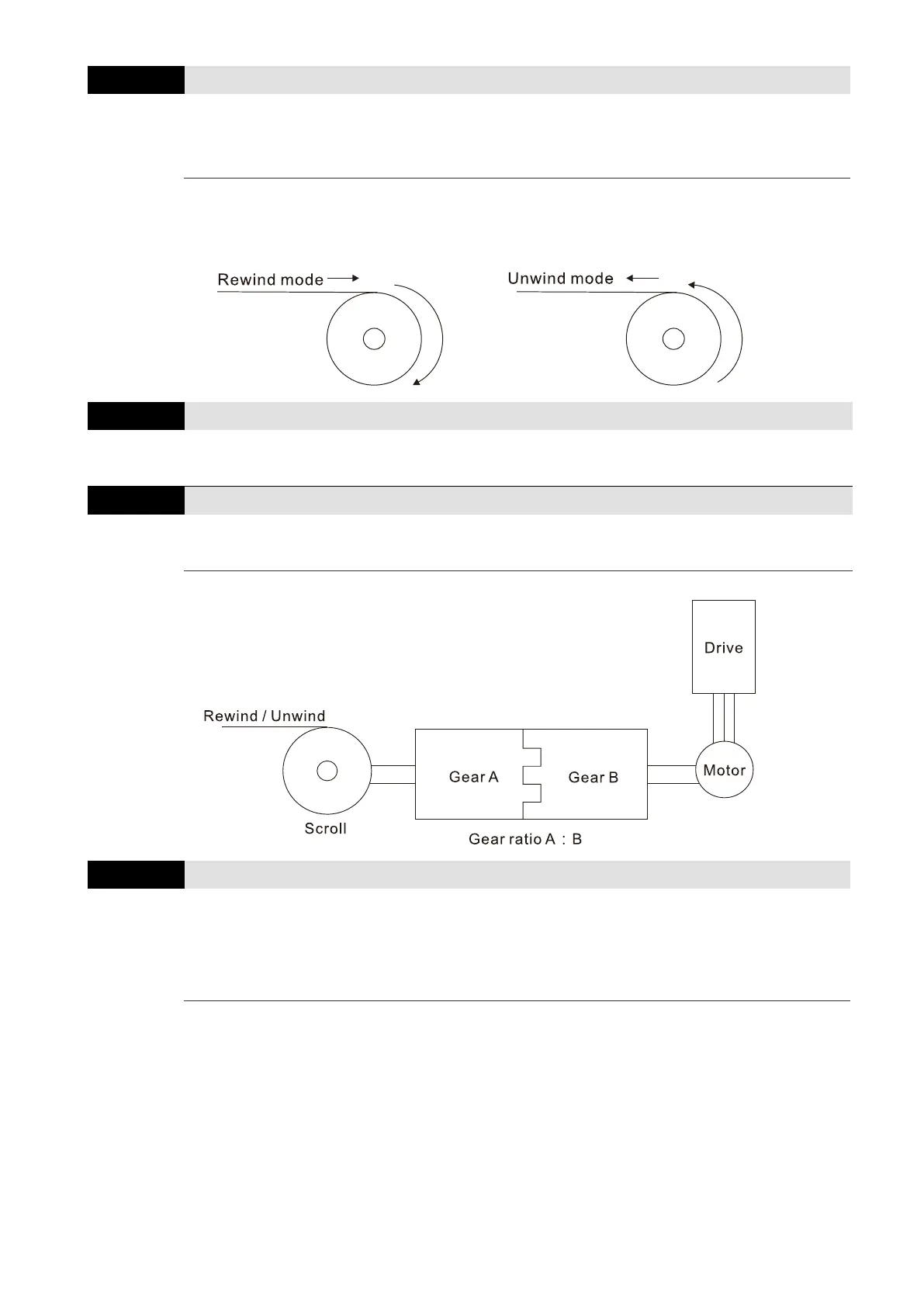

 When using rewind mode, the reel diameter (D) increases gradually; when using unwind mode,
the reel diameter (D) decreases gradually. See the figure below.
12-02
Mechanical Gear A at Load Side
Default: 100
Settings 1–65535
12-03
Mechanical Gear B at Motor Side
Default: 100
Settings 1–65535
 Pr.12-02 and Pr.12-03 are only for using in tension control mode.
12-04
PID Target Source
Default: 0
Settings 0: Set by parameter (Pr.12-05)
1: Set by RS-485
2: Analog input
 This parameter is valid when Pr.12-00 =1 or 2.
 When Pr.12-04 = 0, you can adjust PID target value (Pr.12-05) via digital keypad.
 When Pr.12-04 = 1, you can adjust PID target value (Pr.12-05) via communication.
 When Pr.12-04 = 2, sets AVI / ACI analog input to be tension PID target value (Pr.03-00, Pr.03-01
= d17), and the tension target value will only display in Pr.12-05.
