Chapter 12 Description of Parameter Settings
MH300
12.1-12-5

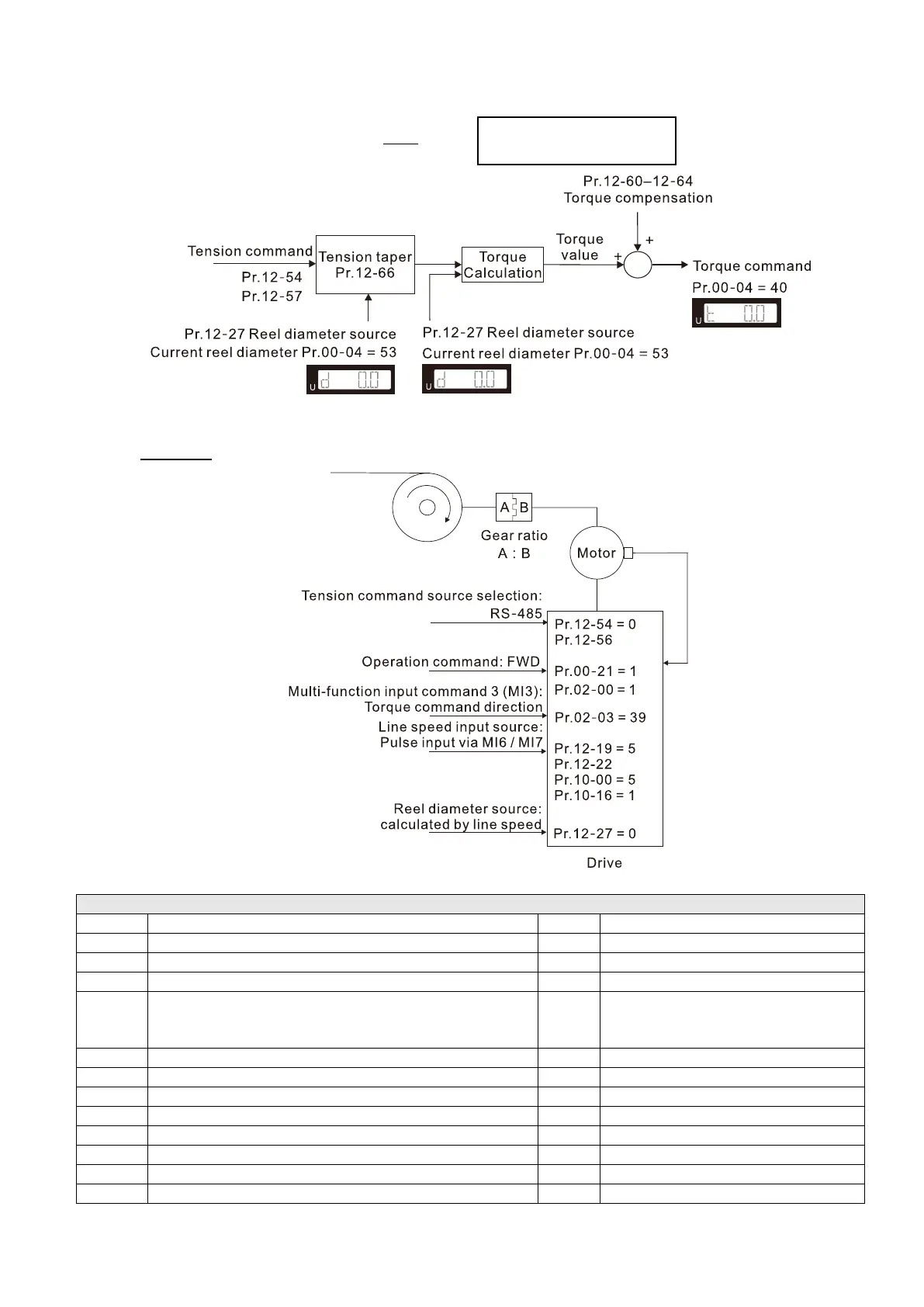

 Setting value 4: Open-loop tension, torque mode
Torque ( −
) =
 ∙ 
2
Example:
A summary of the parameters – Tension open-loop, torque mode
Pr.
Parameter name
Setting
Note
00-21
Operation command source (AUTO, REMOTE)
1
Operates by using external terminals
02-03
Multi-function input command 3 (MI3)
39
Torque command direction
10-00
Encoder type selection
5
Pulse input
10-16 Pulse input type setting 1
Phases A and B are pulse inputs,
forward direction if A-phase leads B-
phase by 90 degrees.
12-00
Tension control selection
4
Open-loop tension, torque mode
12-02
Mechanical gear A at load side
100
Depends on working condition
12-03
Mechanical gear B at motor side
100
Depends on working condition
12-19
Linear speed input command source
5
Pulse input through MI6 / MI7 terminal
12-22
Pulses per meter
1000
Depends on working condition
12-27
Reel diameter source
0
Calculated via linear speed
12-54
Tension command source selection
0
RS-485 communication input
12-56
Tension command setting value
100
Depends on working condition
F: Tension (N)
D: Reel diameter (m)
