Chapter 7 Optional AccessoriesMH300
7-14
DC Output Reactor
A DC reactor can also improve the power factor, reduce input current, and reduce interference
generated from the motor drive. A DC reactor stabilizes the DC BUS voltage. Compared to an AC input
reactor, the advantages are smaller size, lower price, and lower voltage drop (lower power dissipation).

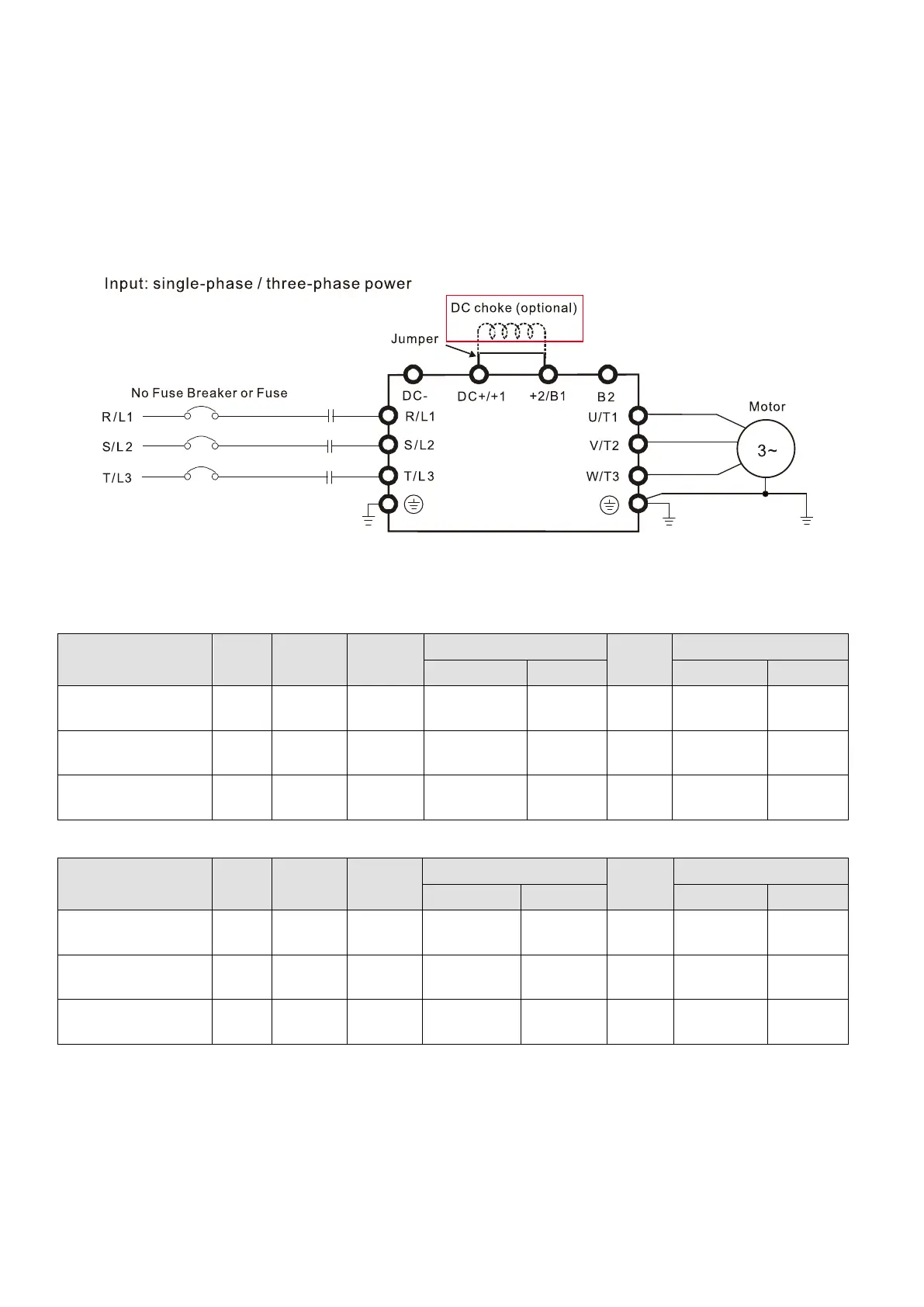

Install the DC reactor between terminals +1 and +2. Remove the jumper before installing the DC
reactor. See the figure below.
NOTE: 115V models have no DC choke.
Fig. 7-6
Reactor Selection Table
115V, 50–60 Hz / Single-phase - Normal duty
Model
Rated
Current
(Arms)
Saturation
Current
(Arms)
Input / DC
Reactor
(mH)
AC Input / DC Reactor
Output
Reactor
(mH)
AC Output Reactor
Delta Part # Weight (kg) Delta Part # Weight (kg)
VFD1A6MH11ANSAA
VFD1A6MH11ENSAA
1.8 2.7 3.66 DR008D0366 0.8 2.54 DR005L0254 1.5
VFD2A5MH11ANSAA
VFD2A5MH11ENSAA
2.7 4.05 2.66 DR011D0266 1.2 2.54 DR005L0254 1.5
VFD5A0MH11ANSAA
VFD5A0MH11ENSAA
5.5 8.25 1.17 DR025D0117 2.8 1.59 DR008L0159 2.5
Table 7-16
115V, 50–60 Hz / Single-phase - Heavy duty
Model
Rated
Current
(Arms)
Saturation
Current
(Arms)
Input / DC
Reactor
(mH)
AC Input / DC Reactor
Output
Reactor
(mH)
AC Output Reactor
Delta Part # Weight (kg) Delta Part # Weight (kg)
VFD1A6MH11ANSAA
VFD1A6MH11ENSAA
1.6 3.2 3.66 DR008D0366 0.8 2.54 DR005L0254 1.5
VFD2A5MH11ANSAA
VFD2A5MH11ENSAA
2.5 5 2.66 DR011D0266 1.2 2.54 DR005L0254 1.5
VFD5A0MH11ANSAA
VFD5A0MH11ENSAA
5 9.6 1.17 DR025D0117 2.8 2.54 DR005L0254 1.5
Table 7-17
