Chapter 7 Optional AccessoriesMH300
7-19

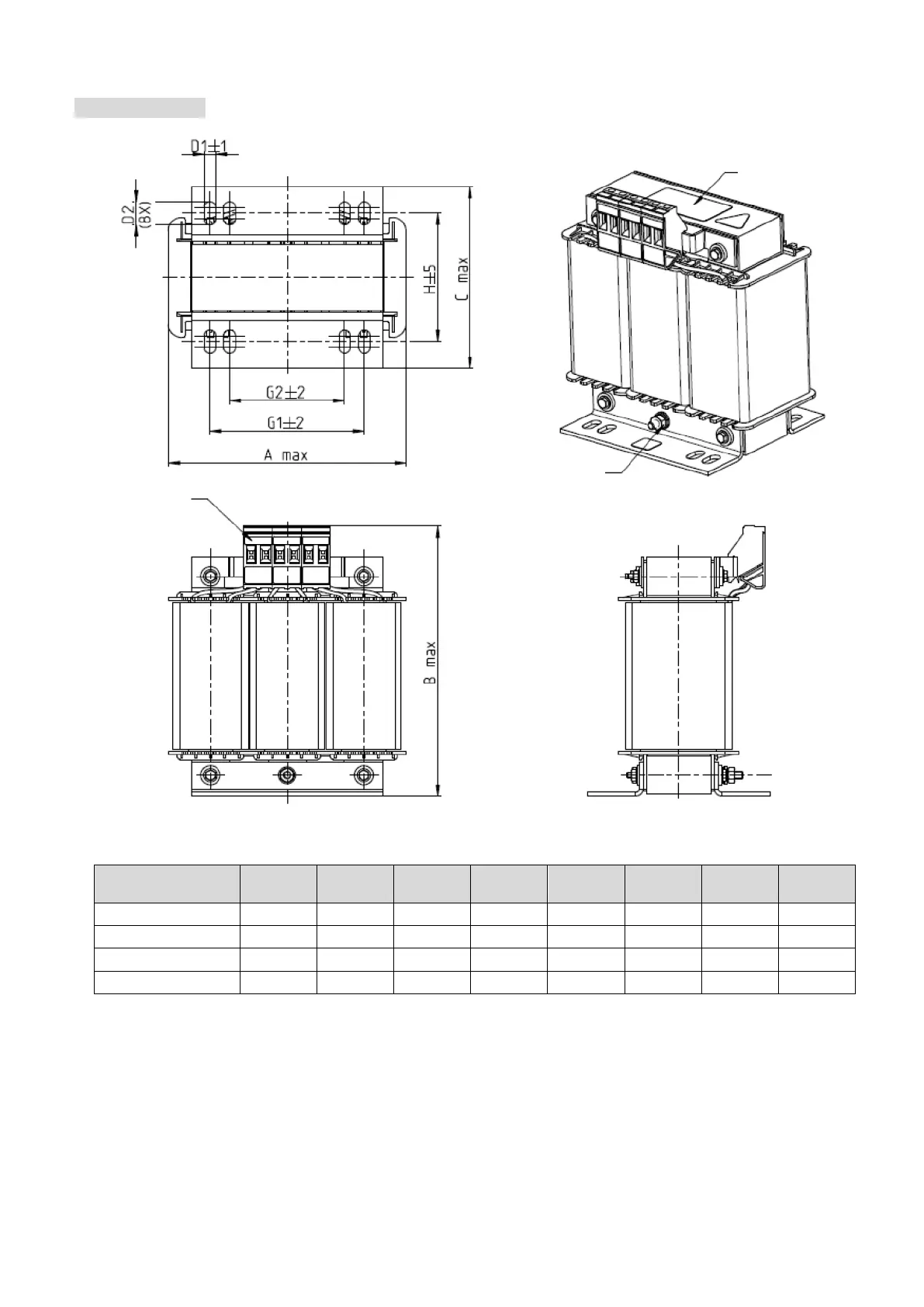

Dimensions and Specifications of Reactors
AC Input Reactor
Fig. 7-7
Unit: mm
Delta’s Part No. -
AC Input Reactor
A B C D1*D2 H G1 G2 PE D
DR005A0254 100 115 65 6*9 45 60 40 M4
DR008A0159
100
115
65
6*9
45
60
40
M4
DR011A0115
130
135
95
6*12
60
80.5
60
M4
DR017AP746 130 135 100 6*12 65 80.5 60 M4
Table 7-25
Marking
PE bolt
Torque:
11.2–13.3 kg-cm
/
[9.7–11.5 lb-in] /
[1.1–1.3 Nm]
Torque: 6.1–8.2 kg-cm /
[5.3–7.1 lb-in] /
[0.6–0.8 Nm]
Screw length must
not interfere with
the mounting
holes
