Delta MH300 Series - Page 85

Chapter 7 Optional AccessoriesMH300
7-20

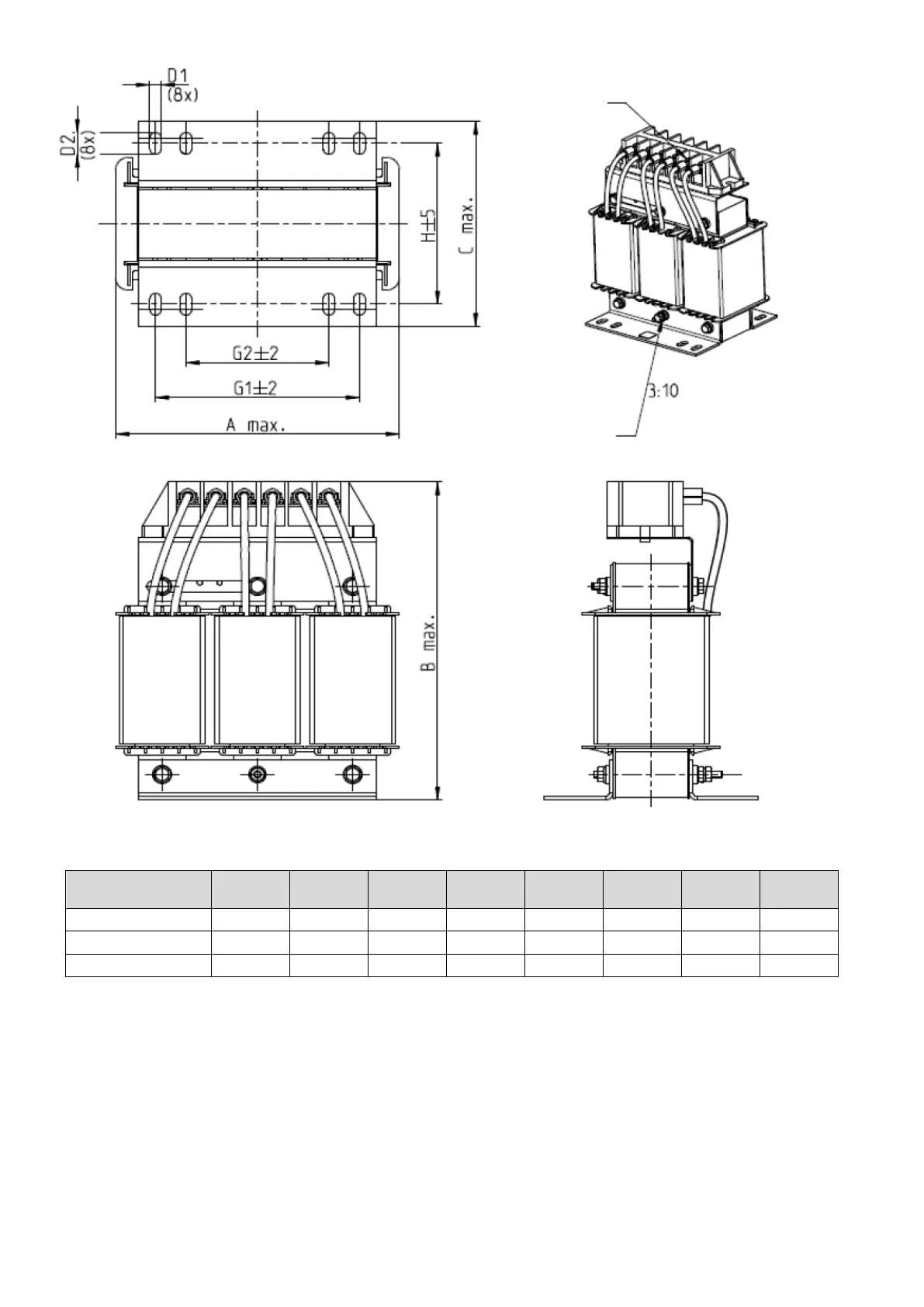

Fig. 7-8
Unit: mm
Delta’s Part No. -
AC Input Reactor
A B C D1*D2 H G1 G2 PE D
DR025AP507
130
195
100
6*12
65
80.5
60
M4
DR033AP320
130
195
100
6*12
65
80.5
60
M4
DR049AP215
160
200
125
6*12
90
107
75
M4
Table 7-26
PE bolt
Torque:
11.2–13.3 kg-cm
/
[9.7–11.5 lb-in] /
[1.1–1.3 Nm]
Installing Screw M5
Screw length must
not interfere with
the mounting
holes
