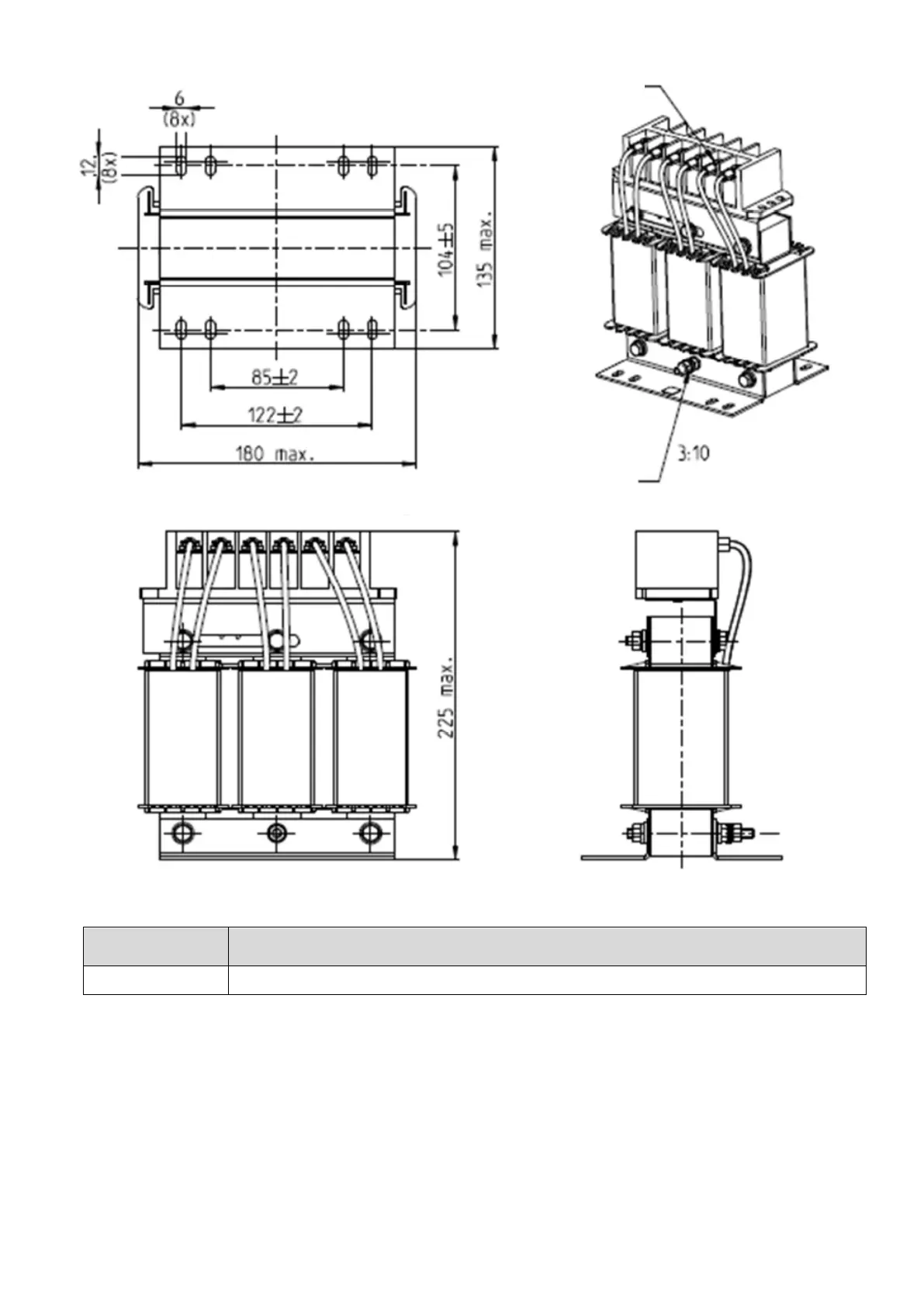

Fig. 7-9
Unit: mm
Delta’s Part No. -
AC Input Reactor
Dimensions
DR065AP162 As shown in the figure above
Table 7-27
Installing Screw M6
PE bolt
Torque:
15.3–45.9 kg-cm /
[13.3–39.8 lb-in] /
[1.5–4.5 Nm]
Screw length must
not interfere with
the mounting
holes
