Chapter 15 CANopen Overview

MH300

15-12

NOTE:

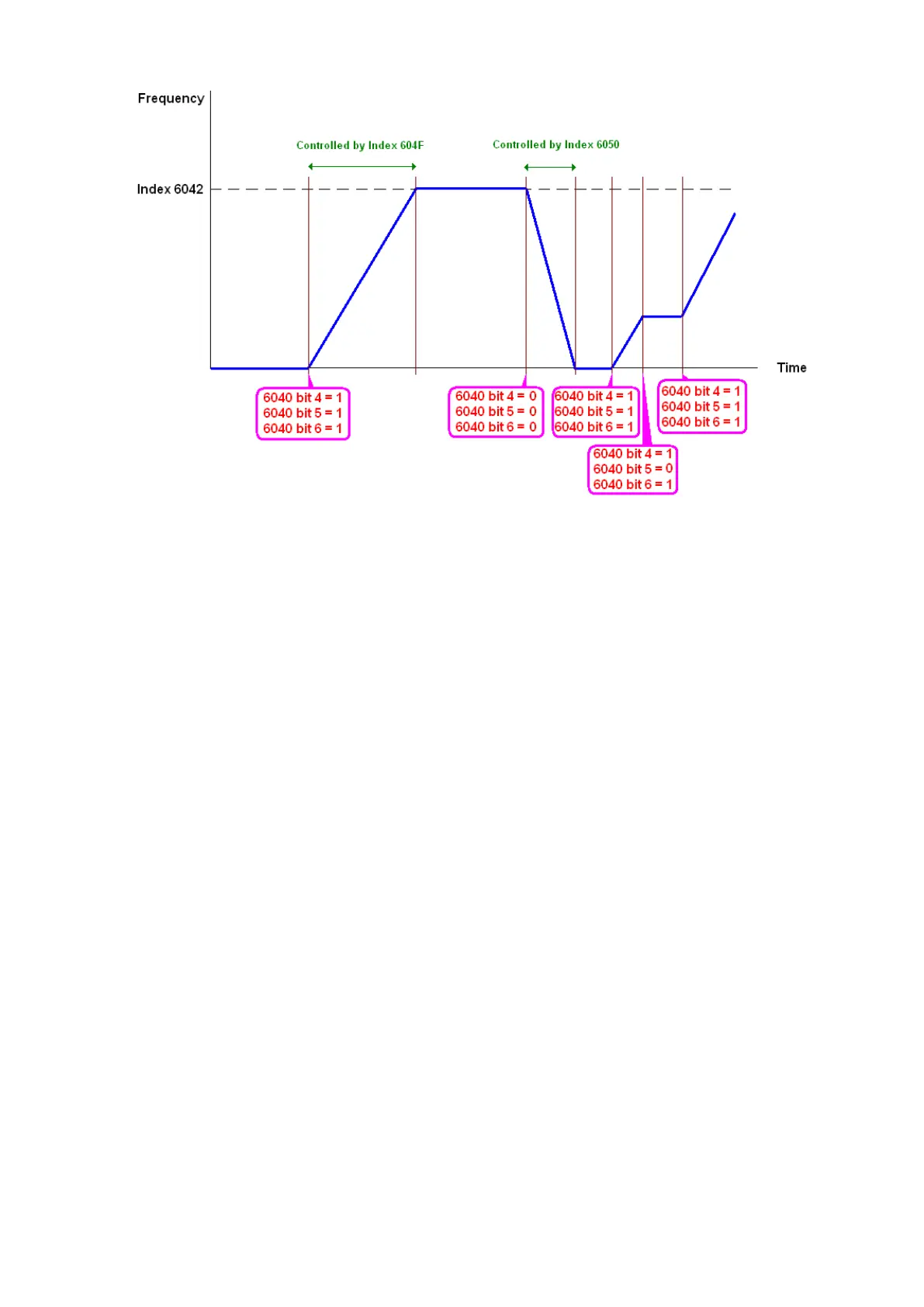

1. Read 6043 to get the current rotation speed (unit: rpm).

2. Read bit 10 of 6041 to find if the rotation speed has reached the targeting value

(0: Not reached; 1: Reached).
