Chapter 16 PLC Function ApplicationsMH300

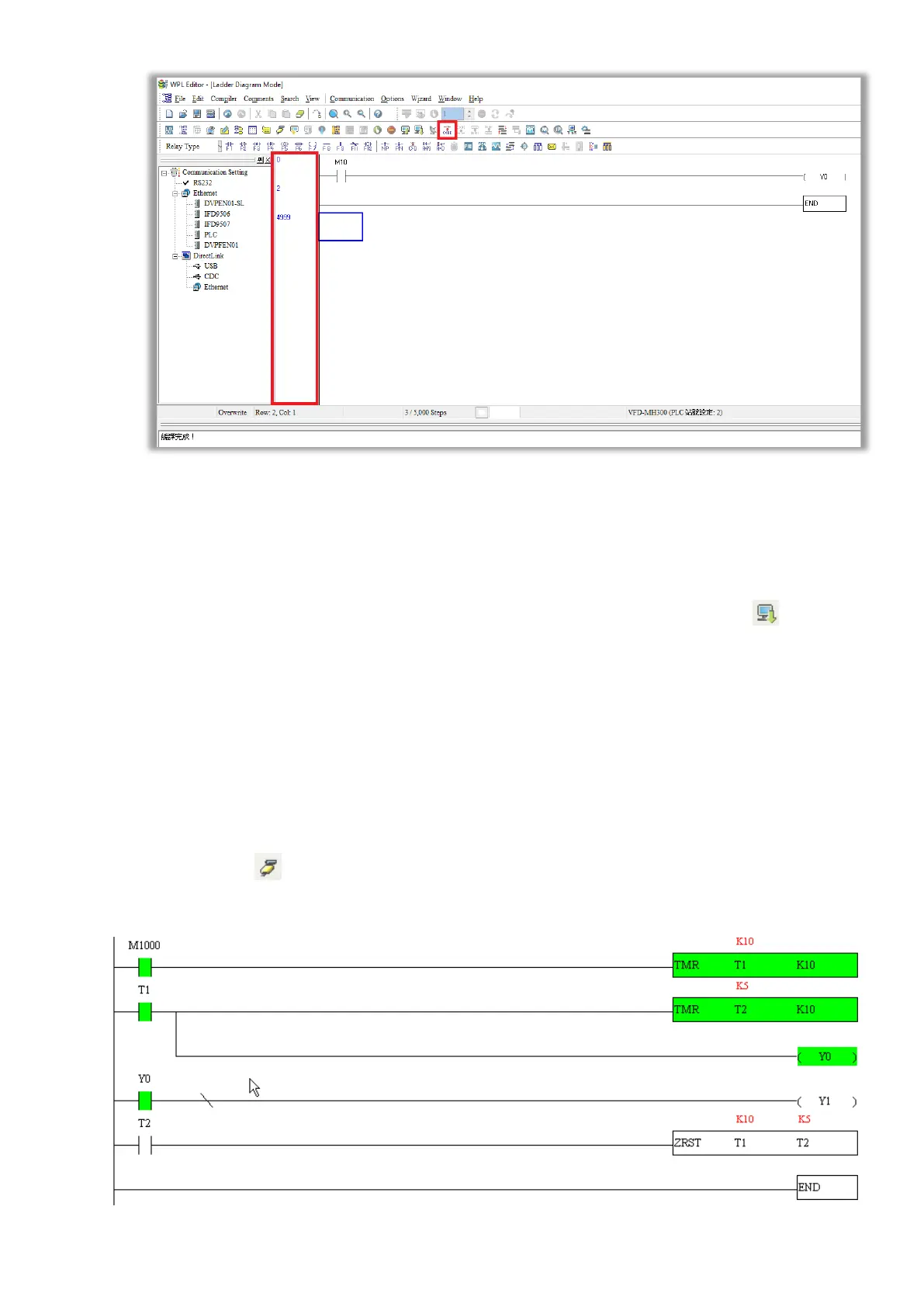

Figure 16-25
16-3-5 Program download
After you compile your program, download it to the device. Click the Download button . WPLSoft
downloads the program to the online PLC in the communication format that you specified for the
communication settings.
16-3-6 Program monitoring
After you download the program, confirm that the PLC is in Run mode. On the Communication menu,
click Online Mode , and then click Start Ladder Diagram Control (as shown in Figure 16-26).
This allows you to supervise and operate the ladder diagram while online.
Figure 16-26
