Delta MH300 Series

Chapter 7 Optional AccessoriesMH300
7-27

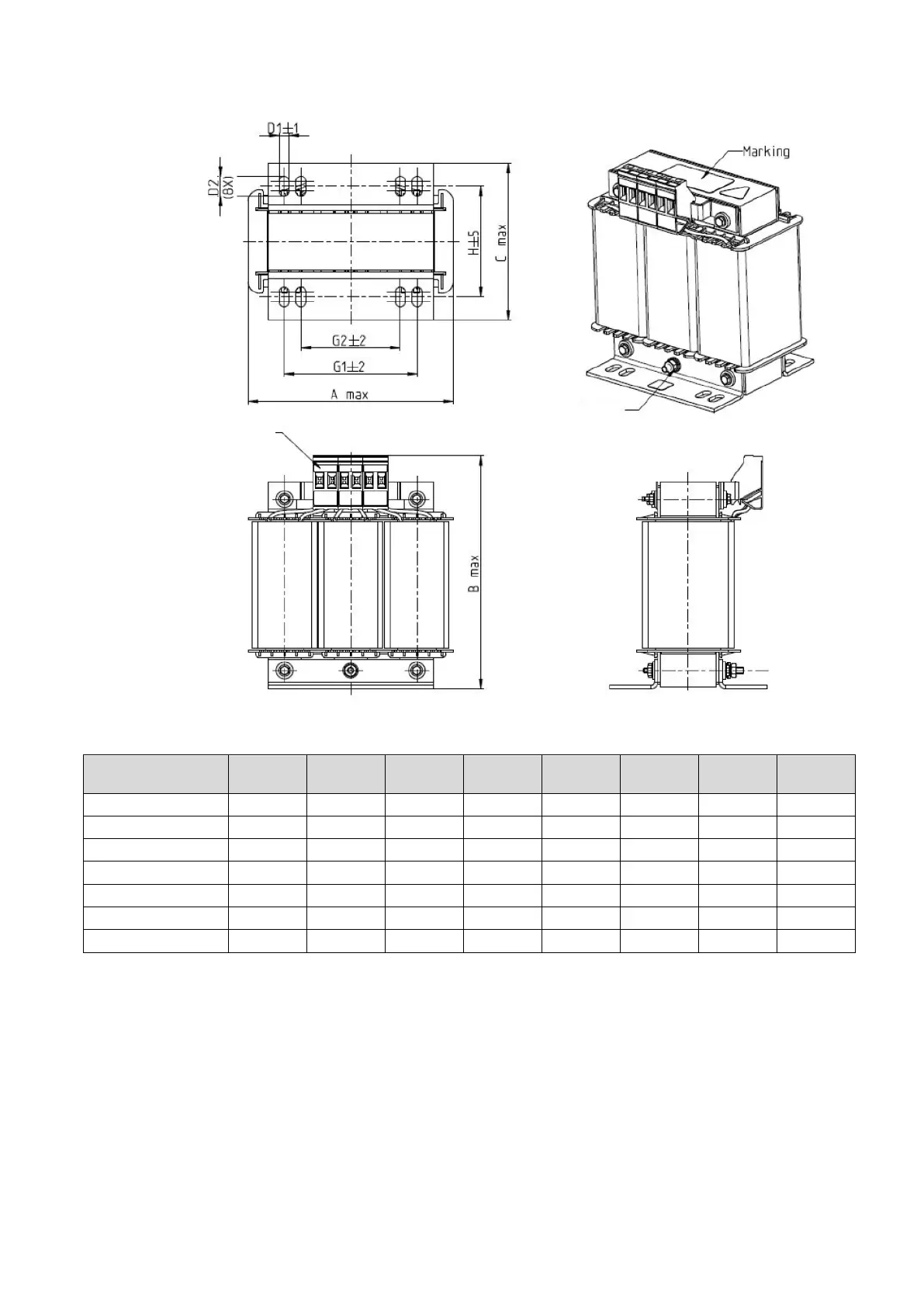

Fig. 7-15
Unit: mm
Delta’s Part No. -
AC Input Reactor
A B C D1*D2 H G1 G2 PE D
DR003A0810
100
125
65
6*9
43
60
40
M4
DR004A0607 100 125 65 6*9 43 60 40 M4
DR006A0405
130
135
95
6*12
60
80.5
60
M4
DR009A0270
160
160
105
6*12
75
107
75
M4
DR010A0231 160 160 115 6*12 90 107 75 M4
DR012A0202
160
160
115
6*12
90
107
75
M4
DR018A0117
160
160
115
6*12
90
107
75
M4
Table 7-33
Screw length
must not
interfere with
the mounting
holes
PE bolt
Torque: 11.2–13.3 kg-cm
/
[9.7–11.5 lb-in.] /
[1 1 1 3 N]
Torque: 6.1–8.2 kg-cm /
[5.3–7.1 lb-in.] /
[0.6–0.8 Nm]
