Delta MH300 Series

Chapter 7 Optional AccessoriesMH300
7-28

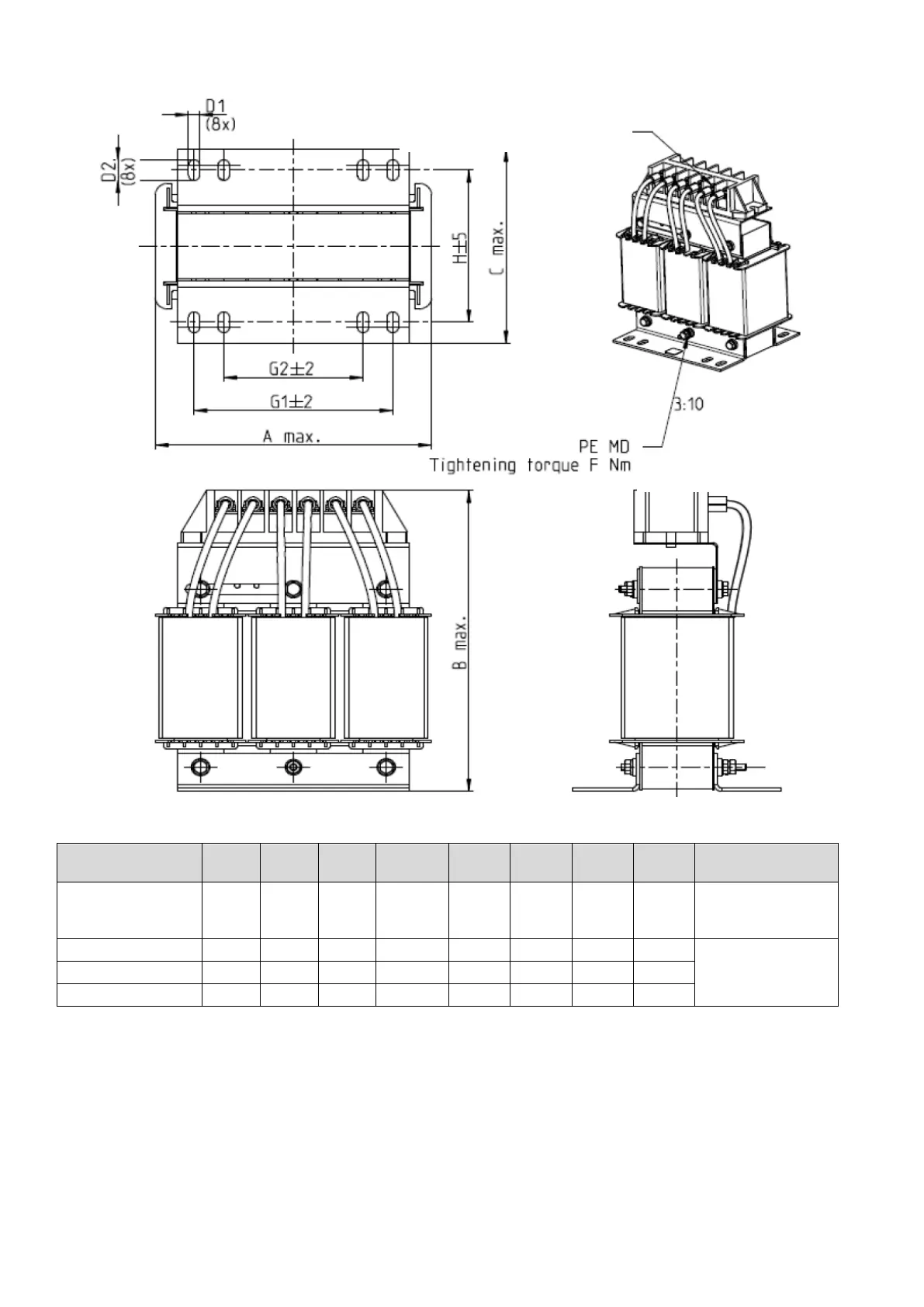

Fig. 7-16
Unit: mm
Delta’s Part No. -
AC Input Reactor
A B C D1*D2 H G1 G2 PE D
F
DR024AP881 160 175 115 6*12 90 107 75 M4
11.2–13.3 kg-cm /
[9.7–11.5 lb-in.] /
[1.1–1.3 Nm]
DR032AP660
195
200
145
6*12
115
122
85
M6
29.1–32.1 kg-cm /
[25.3–27.9 lb-in.] /
[2.85–3.15 Nm]
DR038AP639
190
200
145
6*12
115
122
85
M6
DR045AP541
190
200
145
6*12
115
122
85
M6
Table 7-34
Installing Screw M5
Screw length
must not
interfere with
the mounting
holes
