Delta MH300 Series

Chapter 7 Optional AccessoriesMH300
7-29
Fig. 7-17
Unit: mm
Delta’s Part No. -
AC Input Reactor

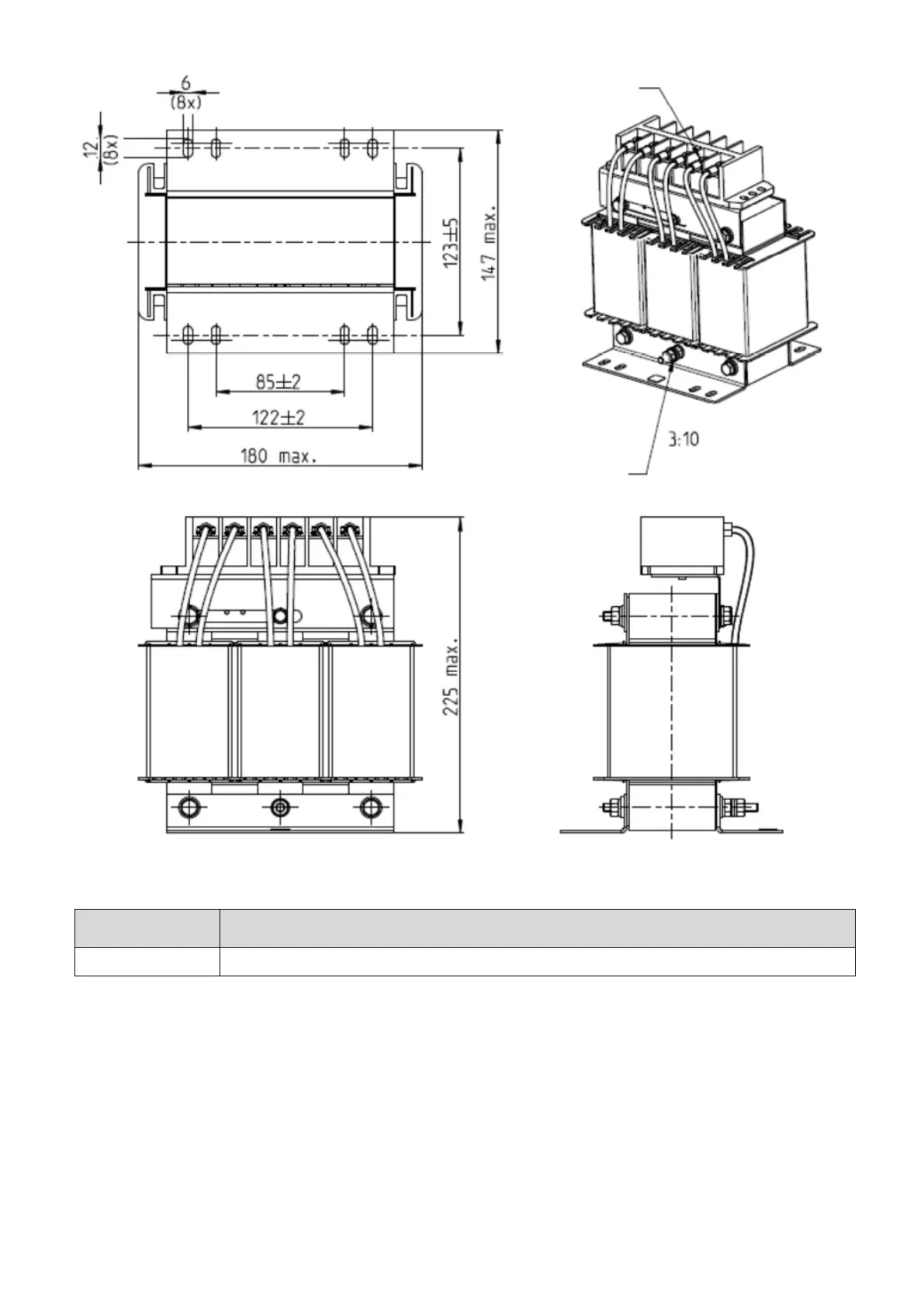

Dimensions
DR060AP405
As shown in the figure above
Table 7-35
Installing Screw M6
PE Screw M6
Torque: 15.3–45.9 kg-cm /
[13.3–39.8 lb-in.] /
[1.5–4.5 Nm]
Screw length
must not
interfere with
the mounting
holes
