Delta MH300 Series - Page 98

Chapter 7 Optional AccessoriesMH300
7-33

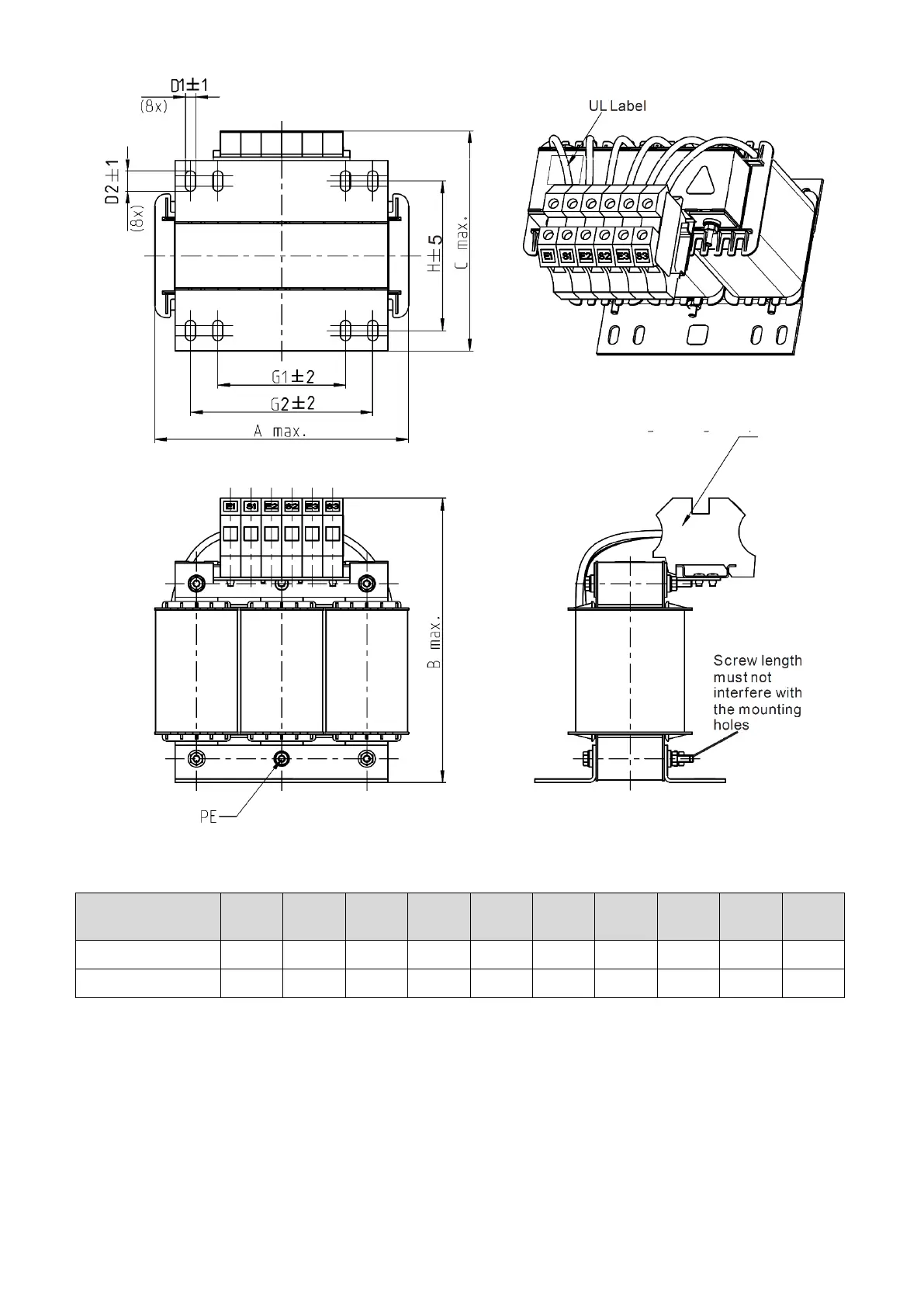

Fig. 7-21
Unit: mm
Delta’s Part No. -
AC Output Reactor
A B C D1*D2 H G G1 Q M PE D
DR049LP215 180 205 175 6*12 115 85 122 16 1.2–1.4 M4
DR065LP162 180 215 185 6*12 115 85 122 35 2.5–3.0 M4
Table 7-39
Terminal 16 mm
2
Torque: 12.2–14.3 kg-cm / [10.6–12.4 lb-in] /
[1.2–1.4 Nm]
