AC Output Reactor

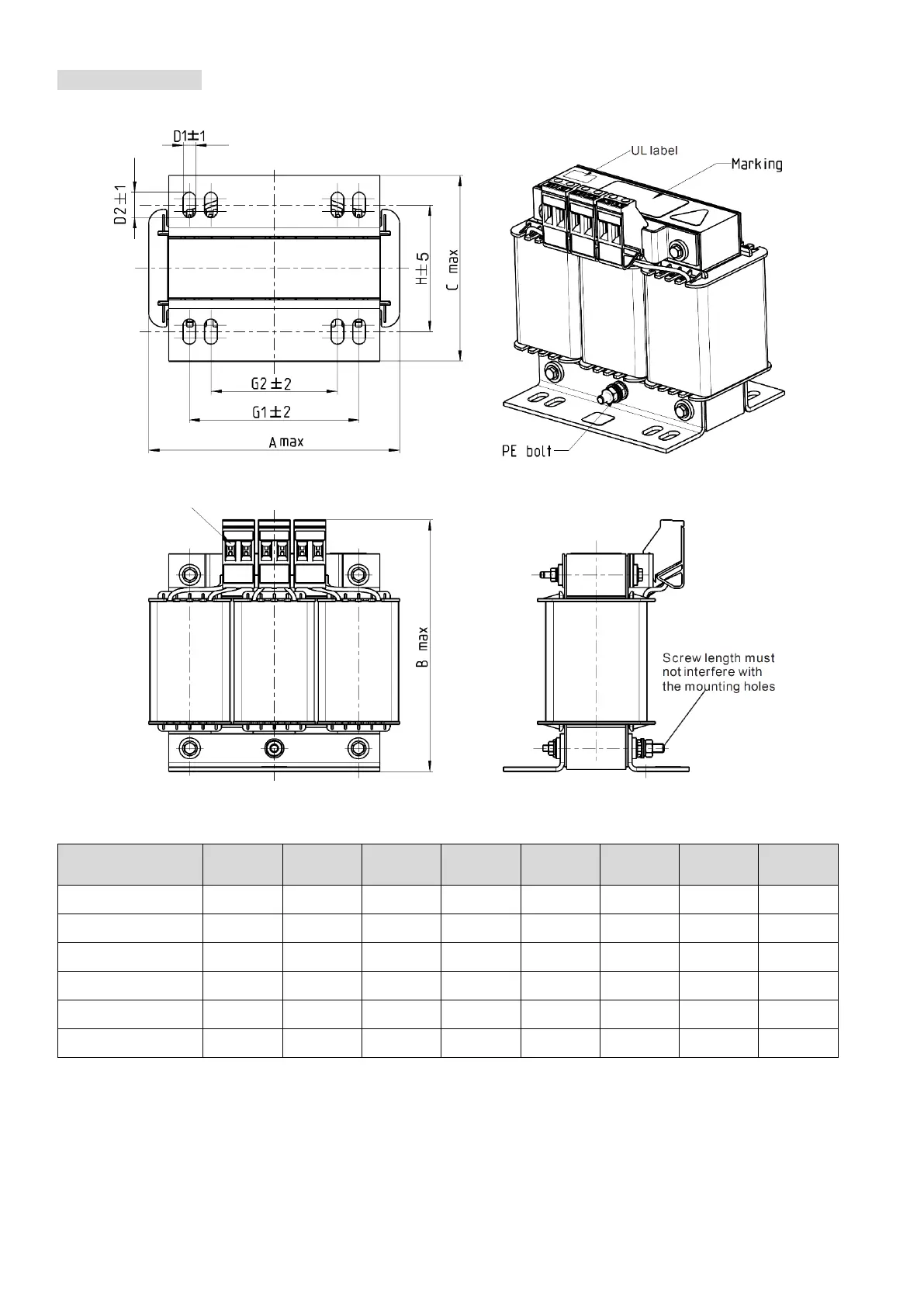

Fig. 7-20
Unit: mm
Delta’s Part No. -
AC Output Reactor
A B C D1*D2 H H1 H2 PE D
DR005L0254 96 110 70 6*9 42 60 40 M4
DR008L0159 120 135 96 6*12 60 80.5 60 M4
DR011L0115 120 135 96 6*12 60 80.5 60 M4
DR017LP746 120 135 105 6*12 65 80.5 60 M4
DR025LP507 150 160 120 6*12 88 107 75 M4
DR033LP320 150 160 120 6*12 88 107 75 M4
Table 7-38
Torque: 6.1–8.2 kg-cm / [5.3–7.1 lb-in] /
[0.6–0.8 Nm]
Torque: 10.2–12.2 kg-cm / [8.9–10.6 lb-in] /
[1.0–1.2 Nm]
