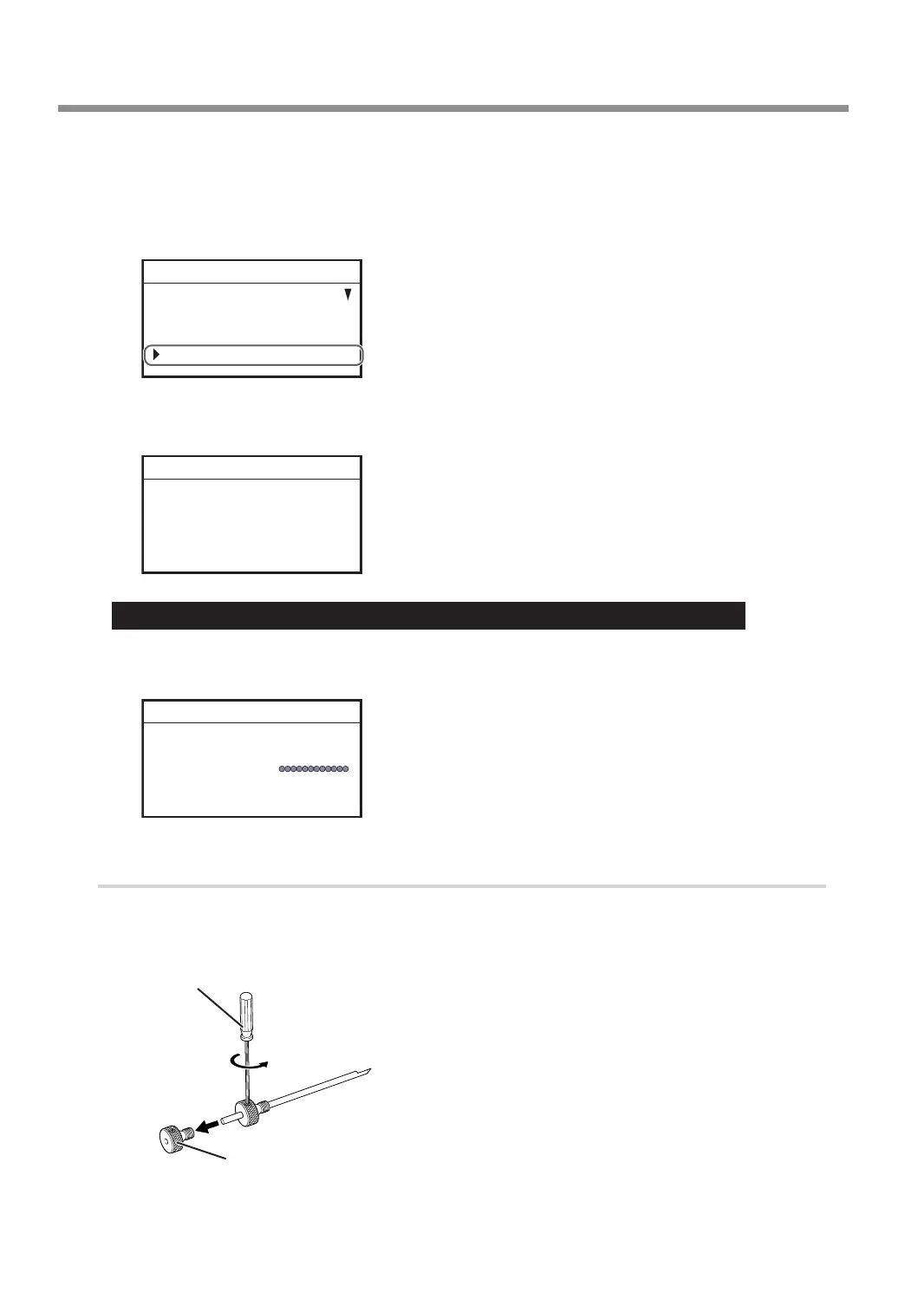

E
Press [ENTER/PAUSE].
F
Turn the [Dial] and select [OFF].
* The engraving depth varies according to the engraving data created using Dr. Engrave Plus.
" P. 35 "Step 5: Setting the Engraving Parameters"
SETTINGS
OPERATING MODE
SPINDLE REVOLUTION ON
AUTO Z CONTROL OFF
012345678901234567 READY
G
Press [ENTER/PAUSE] to conrm.
After the following message is displayed for three seconds, the previous screen appears again.
Please set the lock lever
at the 3 position.
012345678901234567 READY
Important: Accurately perform P. 108 "3. Set the lock lever." later in this procedure.
H
Press [MENU/TOP].
The main screen appears again.
X 15.00mm
Y 23.00mm
Z 0.00mm S 5000rpm
012345678901234567 READY
2.
Install the cutter holder and solid collet.
A
Open the front cover.
B
Detach the cutter holder from the cutter.
Loosen
Hexagonal screwdriver
Cutter holder
Using Various Tools
106
Chapter 5 Various Engraving Methods
