Dieci SAMSON AGRI MAX - Joystick; Joystick with Capacitive Deadman Sensor

8 | Components description
114 DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A

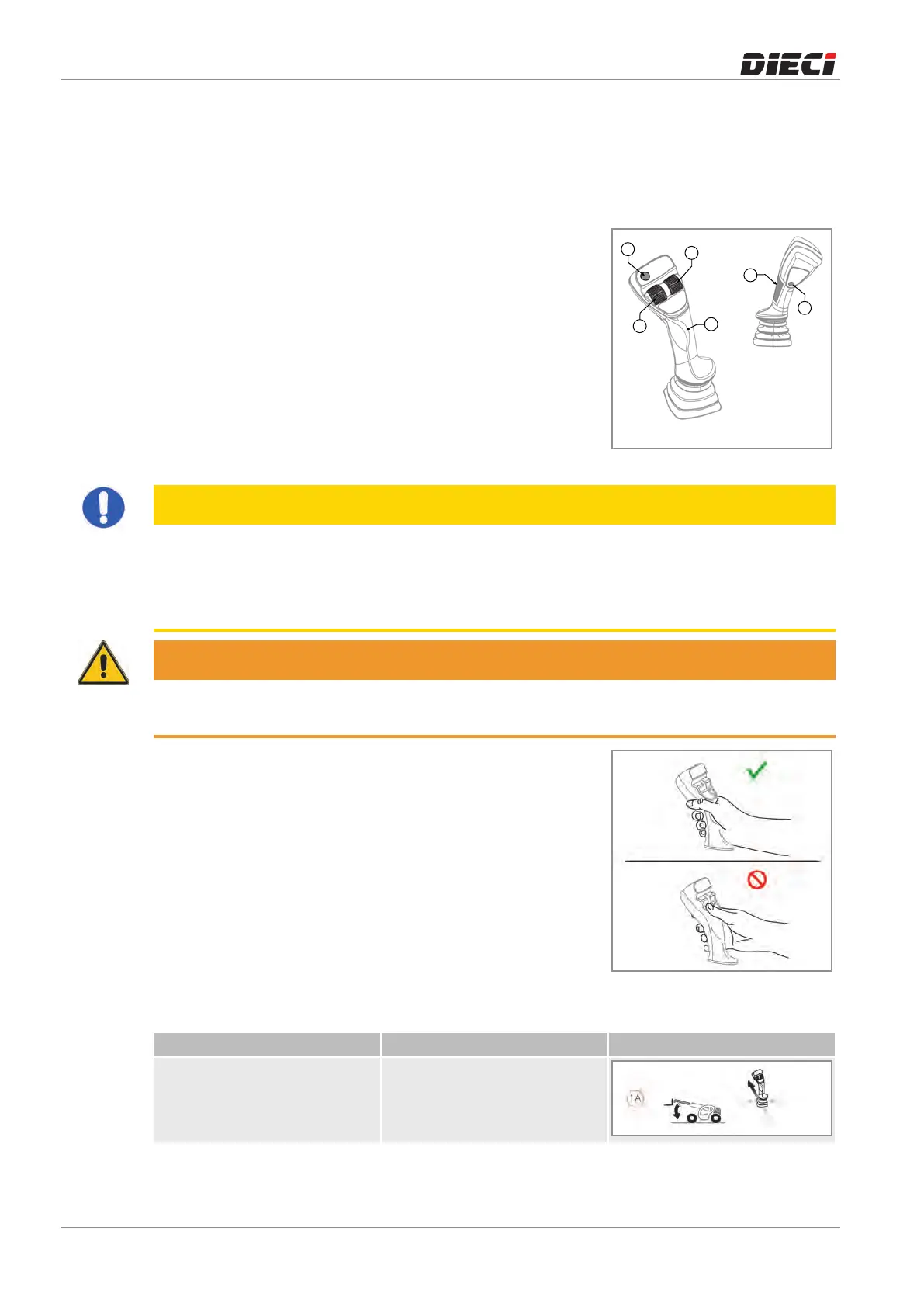

8.6 Joystick
8.6.1 Joystick with capacitive deadman sensor
TheJoystickallowsyoutooperateallthetelescopicboommovements.
Itconsistsof(fig.1504501):
1. Grip
2. Capacitivesensor
3. Deadmanbutton
4. Extension/retractionroller
5. Servicesroller
6. Continuousoilfunctionbutton**
** Components depending on optional equipment or pre
arrangements.
1
2
3
4
6
5
150450-1
CAUTION
The deadman joystick function prevents any accidental movements of the boom.
The Joystick features a "deadman" capacitive sensor: to enable it to function you need to place your hand
on the grip "1" correctly so as to activate the capacitive sensor "2".
If your hand is not resting on the capacitive sensor "2", boom movements are disabled.
WARNING
Before operating the boom, make sure that the area around the vehicle is clear.
Make sure that the loads to be lifted are within the vehicle capacity.
Adjust the seat so you can hold the joystick correctly (fig.
1504502).
Itispossibletousethedeadmanbutton“3”ifthesensor“2”fails
toworkproperly.
Unless you hold the joystick correctly or press the deadman
button,allthejoystickfunctionsaredisabled.
150450-2
Themovementsthatarepossibleusingthejoystickare:
CONTROL MOVEMENT
Gripforwards Boomdown
