Dieci SAMSON AGRI MAX - Boom Extension; Retraction Lever; Services Lever; Turret Rotation Lever (for Rotary Vehicles)

Components description | 8
DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A 155

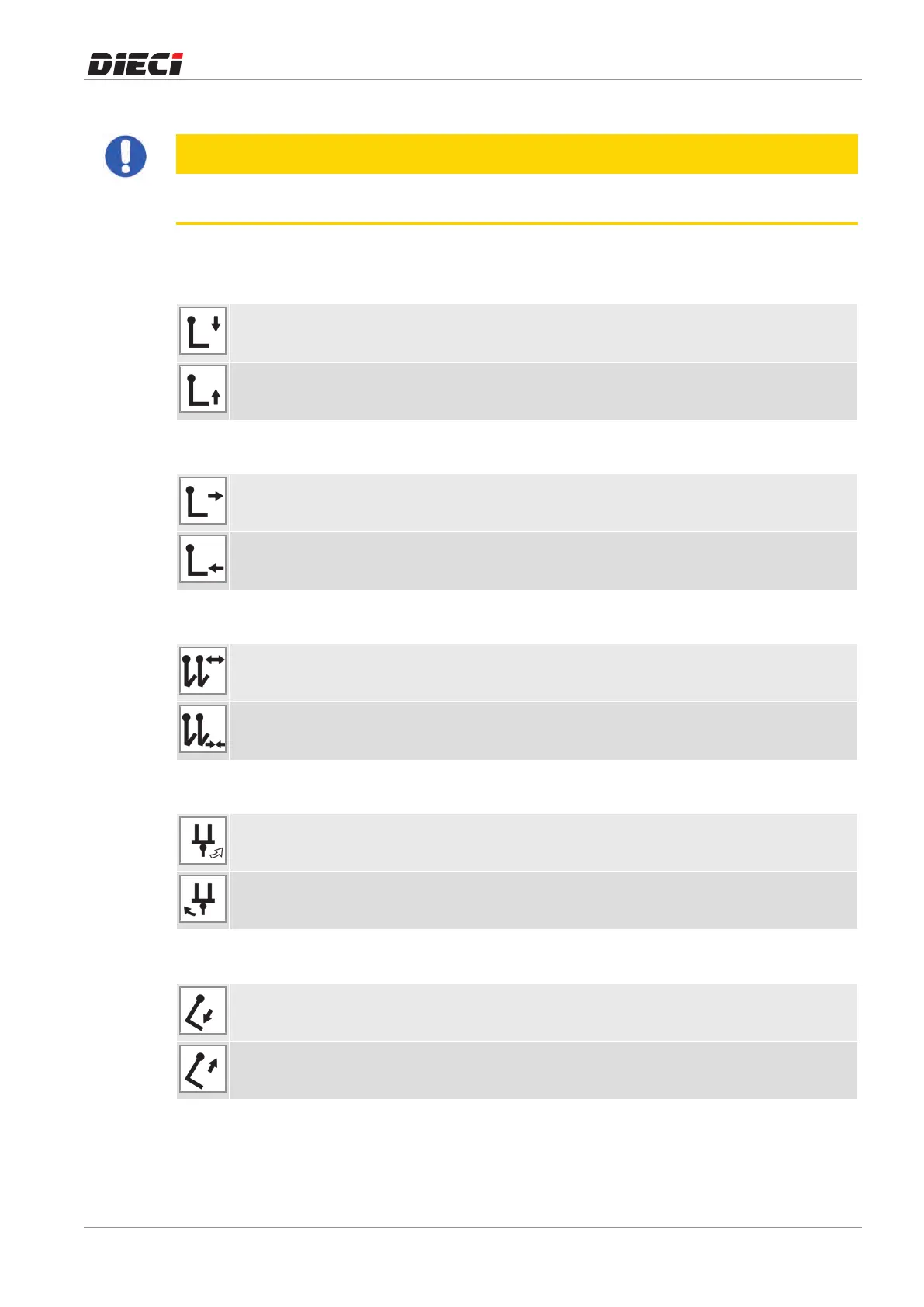

8.22.1.7 Boom control levers
CAUTION
To carry out the movements it is necessary to press and hold the deadman button and then move the
lever in the direction corresponding to the desired movement
Theboomcontrolleversareusedtocarryoutvariousmovements:
Boom lowering / lifting lever “2” (fig. 160601-1)
Boomdown
Boomup
Boom extension / retraction lever “3” (fig. 160601-1)
Boomextension
Boomretraction
Services lever "4" (fig. 160601-1)
Services
Services
Turret rotation lever "5" (fig. 160601-1) [if installed]
Turretcounterclockwiserotation
Turretclockwiserotation
Swivel lever “6” (fig. 160601-1)
Downwardswivel
Upwardsswing
8.22.1.8 Deadman button
Thedeadmanbuttons“13”(fig.1606012)and“14”(fig.1606013)enabletheuseoftheboomcontrollevers.
Itisnecessarytopressandholdatleastoneofthetwobuttonsandoperatetheboomcontrollevers.
