Dieci SAMSON AGRI MAX - Flat-Face Couplings Connection

Equipment | 10
DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A 187
10.3.5 Flat-Face couplings connection
ToconnecttheFlatFacequickcouplings:
1. Perform the equipment installation procedures
described in the chapter: "Equipment installation
procedure".
2. Turnoffthevehicle.
3. In case of closed center distributor, discharge the
system residue pressure (refer to chapter Closed
center distributor: Relieve the pressure through
the trailer Descent button [}188]).
4. Cleantheplugandsocket,ifsoiled
5. Rest the plug at center of the socket and push the
fullyplug(fig.1505122),untilthesocketringislifted
6. Turntheringtoblockthepluginsidethesocket(fig.
1505123).
7. Checkthehydraulictubeiscorrectlyfixed
8. Carryoutthesameoperationforbothhoses

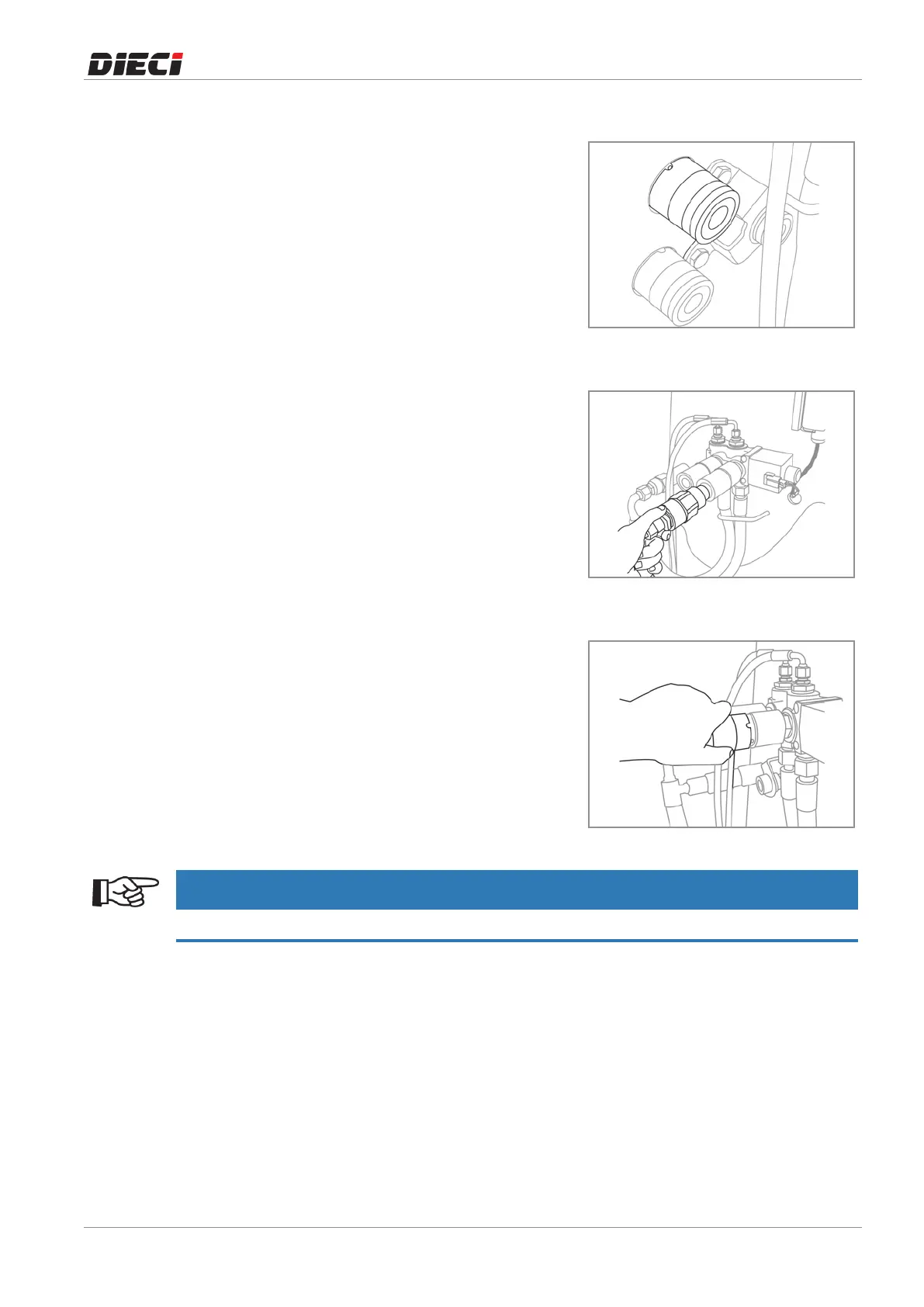

150512-1
150512-2
150512-3
NOTICE
Consult the equipment manual to verify correct operation.
