Dieci SAMSON AGRI MAX - Manual Gear Shift Selection

Components description | 8
DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A 137
WARNING
It is dangerous to operate the movement selection lever with the engine at high rpm or at
a speed higher than 2 km/h (1.2 mph).
Before reversing the direction of movement, minimize the engine speed and select the new direction.
Danger of vehicle overturning severe breakage of mechanical parts.

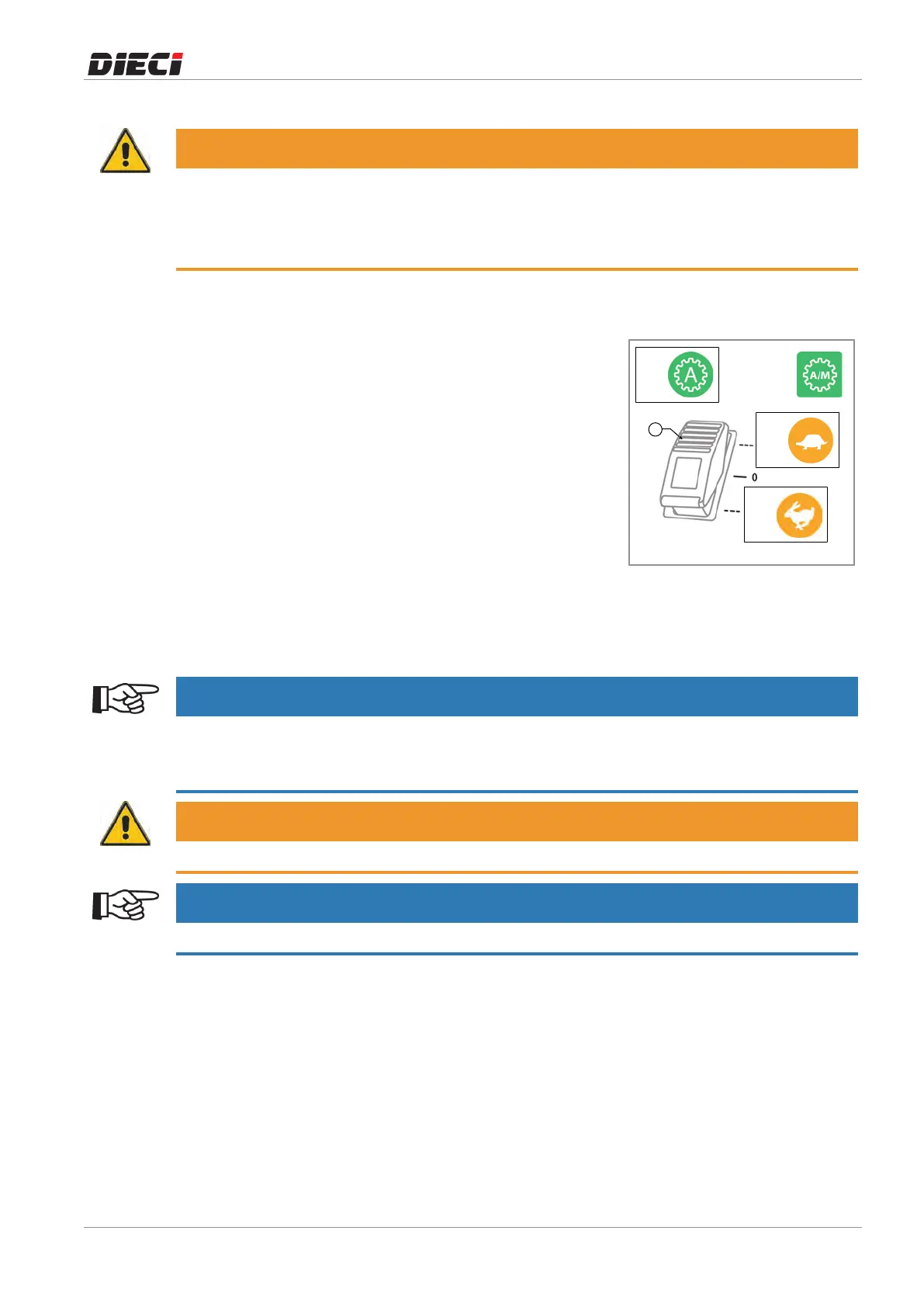

8.13.2 Manual gear shift selection
The"1"button(fig.1504581)allowschangingthemanualgear
shift.
To change the manual gear shift:
Stopthemachinecompletely.
1. Presstheinchingandbrakepedalsandhold.
2. Press"1"forafewseconds:
Down to shift the Fast gear, the indicator light "A" on the
instrumentpanelturnsontoindicateitsselection.
UptoshifttheSlowgear,theilluminationofthe"B"onthe
instrumentpanelturnsontoindicateitsselection.
3. Waitthattherelatedindicatorlightturnson.
4. Releasetheinchingandbrakepedals.
5. Driveslowlyandgraduallytoallowthegeartofitproperly.
Theindicatorlight"C"indicatesthegearproperlyshifted.
1
C
B
A
150458-1
NOTICE
Shift the first gear to operate on the work site.
Shift the second gear for long trips with no load, at clear work sites, with good visibility, in the absence of
obstacles, with consistent and level ground floor, without transit of people.
WARNING
Never try to shift gears with the machine in motion.
NOTICE
The "1" and "2" gear selection on the movement selection lever is not active.
