Dieci SAMSON AGRI MAX - Equipment Quick Coupling; Quick Coupling with Single Lock on Closed Circuit Machine

8 | Components description
132 DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A
8.11 Equipment quick coupling *
NOTICE
* The equipment quick coupling is an optional accessory.
Theequipmentquickcoupling allowsthe operatorto installandfastentheequipmenttothetoolsholder
plate.
Therearedifferentmodelsofquickcouplingsforequipment,theycanbewithasinglelockcylinderlockor
doublelockcylinder,theproceduresforusechangeaccordingtothetypeofhydraulicsystemofthemachine.

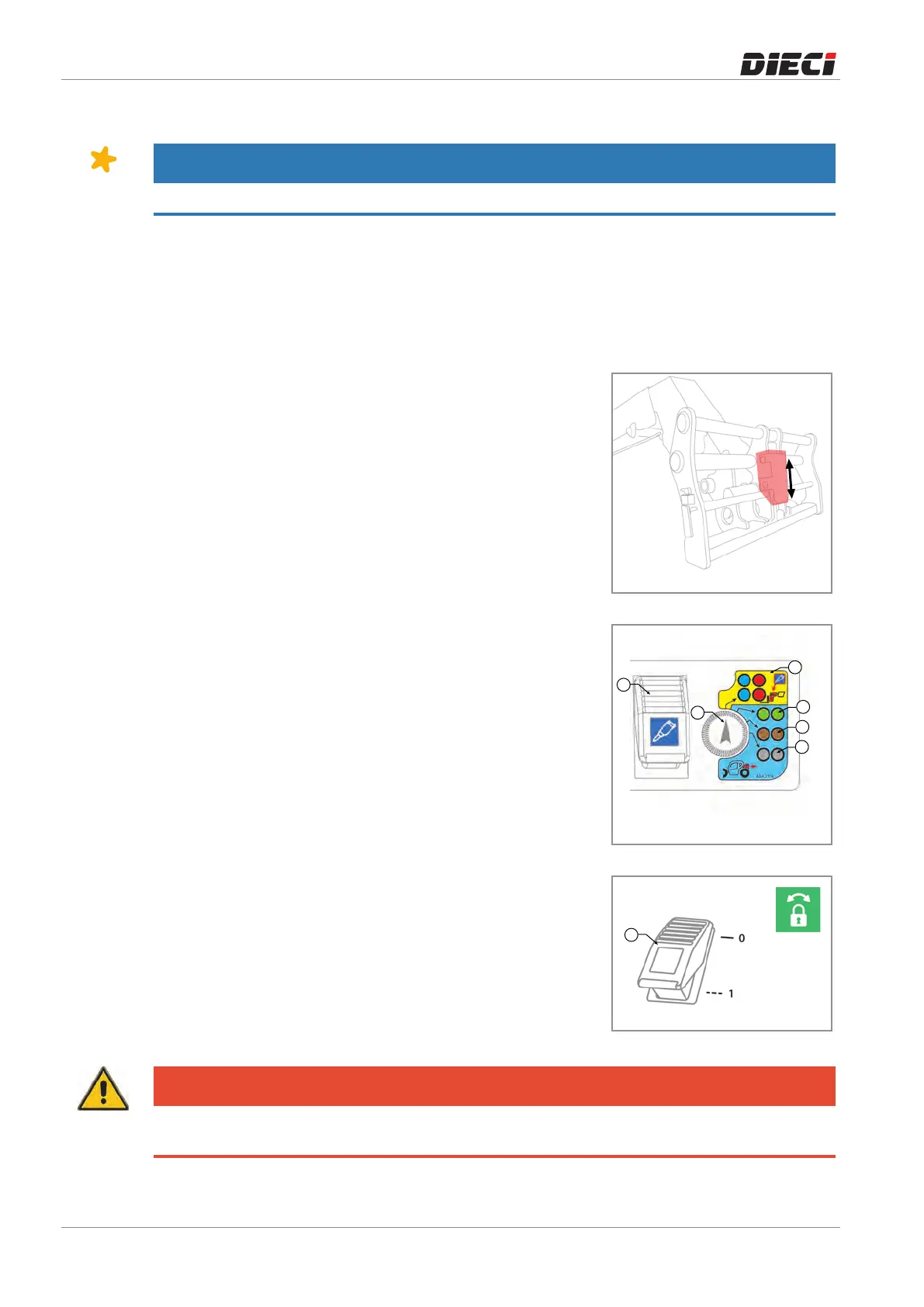

8.11.1 Quick coupling with single lock on closed circuit machine
To use the quick coupling (fig. 1502061) for the equipment
installationitisnecessaryto:
1. Carry out the normal hooking operations set out in
paragraphs 1, 2, 3 and 4 of the chapter "Equipment
installation".
2. Select the sockets on the boom head “A” (fig. 1502062)
throughtheHydraulicsocketsselector"1"(ifpresent).
3. PresstheQuickCouplingbutton"1"(fig.1502063)andatthe
sametimeoperatetherollerontheservicesjoysticktoopen
thequickcoupling.
4. Tilttheplateupwardtomakesurethattheequipmentisfully
restingonthetoolholderplate.
5. Press the Quick Coupling button "1" and at the same time
operate the roller on the services joystick in the opposite
direction, to close the quick coupling and lock the
equipment.
6. If the equipment is not properly fastened, repeat the
installation.
150206-1
2
1
A
B
C
D
150206-2
1
150206-3
DANGER
Do not operate without having properly secured the equipment to the plate, danger of load and
equipment falling.
