Components description | 8
DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A 93
General alarm warning light Acoustic signal Condition
On Intermittent Highenginewatertemperature
Intermittent Continuous Reachedengineoverspeedlimit
Intermittent Continuous Reachedmaximumspeedlimit
Generalalarmwarninglight Acousticsignal Condition
On Intermittent Generator,batteryfailure

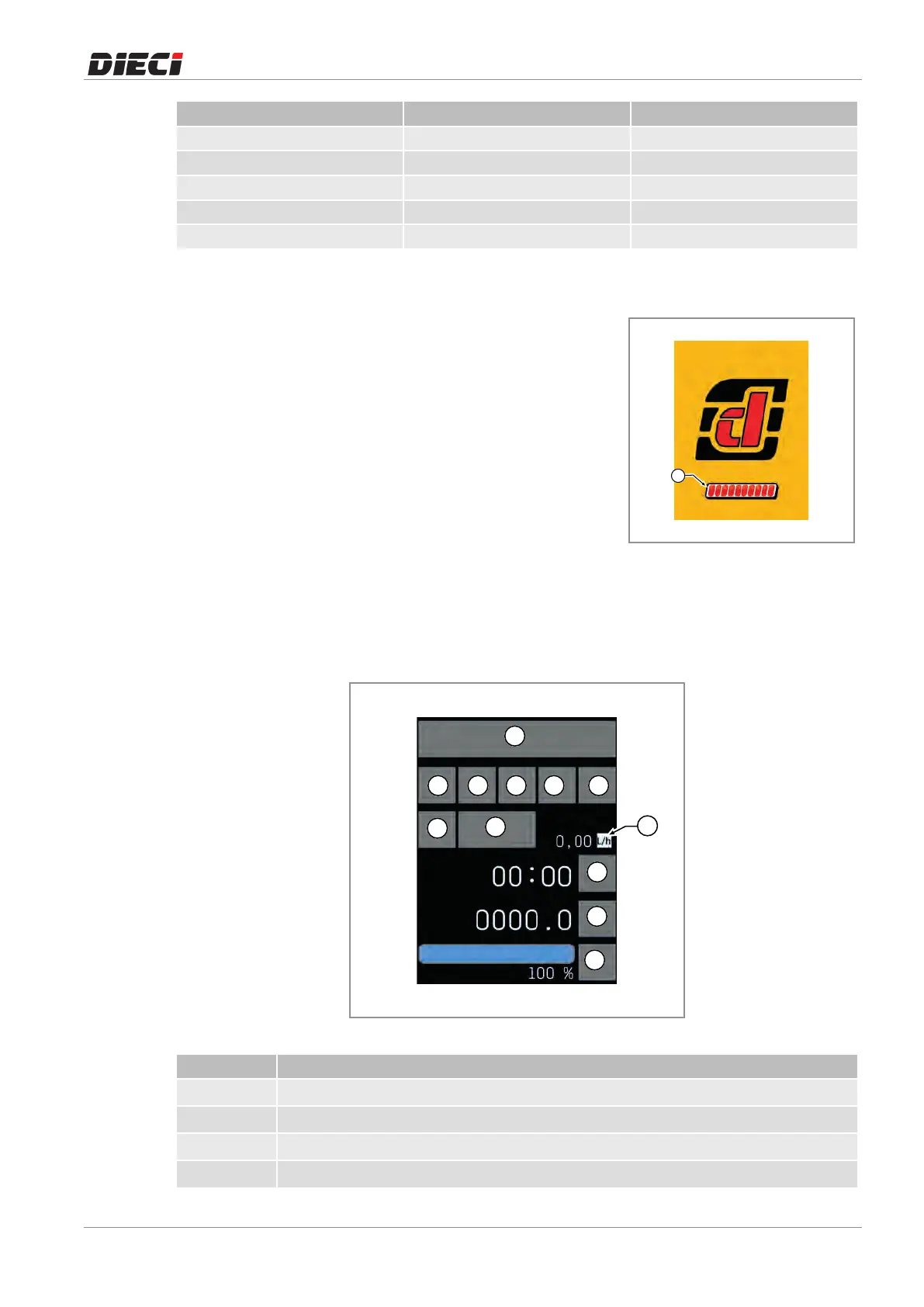

8.2.3 Initial check
Whenthepanelisswitchedon,thesystemwillperformacheck
ofalltheindicatorlightsandalltheindicators.Duringthecheck,
thescreenwillshowaloadingbar"1"(fig.1509221).
After completing the initial check the display shows the main
Homescreen.
1
150922-1
8.2.4 Home
TheHomescreen(fig.1504281)isthestandarddisplay,containingtheinformationrequiredbytheoperator
tousethevehicle.
2
10
1
8
6543
9
7
12
11
150428-1
Position Description
1
Longitudinal movement indicator and anti‐tipping icon [}102]
2
Speed limiter icon [}96]
3
Levelness Icon [}95]
4
Boom chains Error icon [}95]
