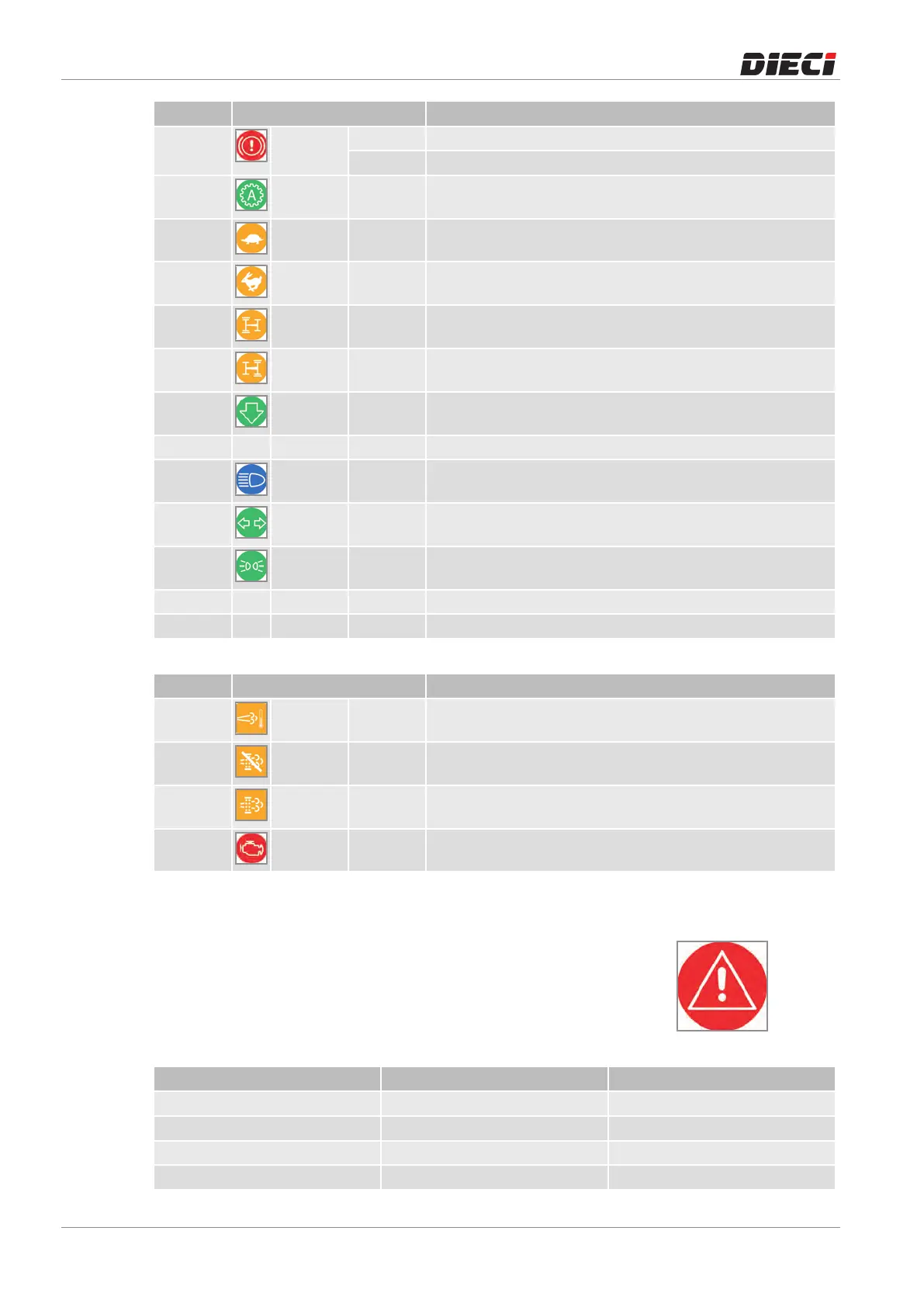

8 | Components description
92 DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A
Position Indicator light Description
10 Red Flashing Brakesoillowlevel
Fixed Brakingsystemfailure
11 Green Fixed
12 Yellow Fixed Slowgearengaged*
13 Yellow Fixed Fastgearengaged*
14 Yellow Fixed Frontaxlewheelsalignment*
15 Yellow Fixed Rearaxlewheelsalignment*
16 Green Fixed Backwardmovementengaged
17    Notused
18 Blue Fixed Highbeam
19 Green Fixed Directionindicators
21 Green Fixed Sidelights
22  Red  Enginewaterhightemperature
23  Yellow  Fuelreserve
* Indicator lights used depending on configurations or optional equipment.
Position Indicator light Description
24 Yellow  Notused
25 Yellow  Notused
26 Yellow  Notused
27 Red  Notused
8.2.2 General alarm warning light
Thegeneralalarmwarninglight(fig.1510111)lightsontogether
withothersignals,tounderlinedangertothesafetyofthevehicle
ortheoperator.
If the vehicle is in motion, the General alarm warning light is
accompaniedbyageneralalarmacousticsignal.
1510111
General alarm warning light Acoustic signal Condition
On Intermittent Generator,batteryfailure
On Intermittent Engineoillowpressure
On Intermittent Engineairfilterclogging
On Intermittent Hydrostaticoilfilterclogging
