Dieci SAMSON AGRI MAX - Quick Coupling with Double Cylinder

8 | Components description
134 DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A

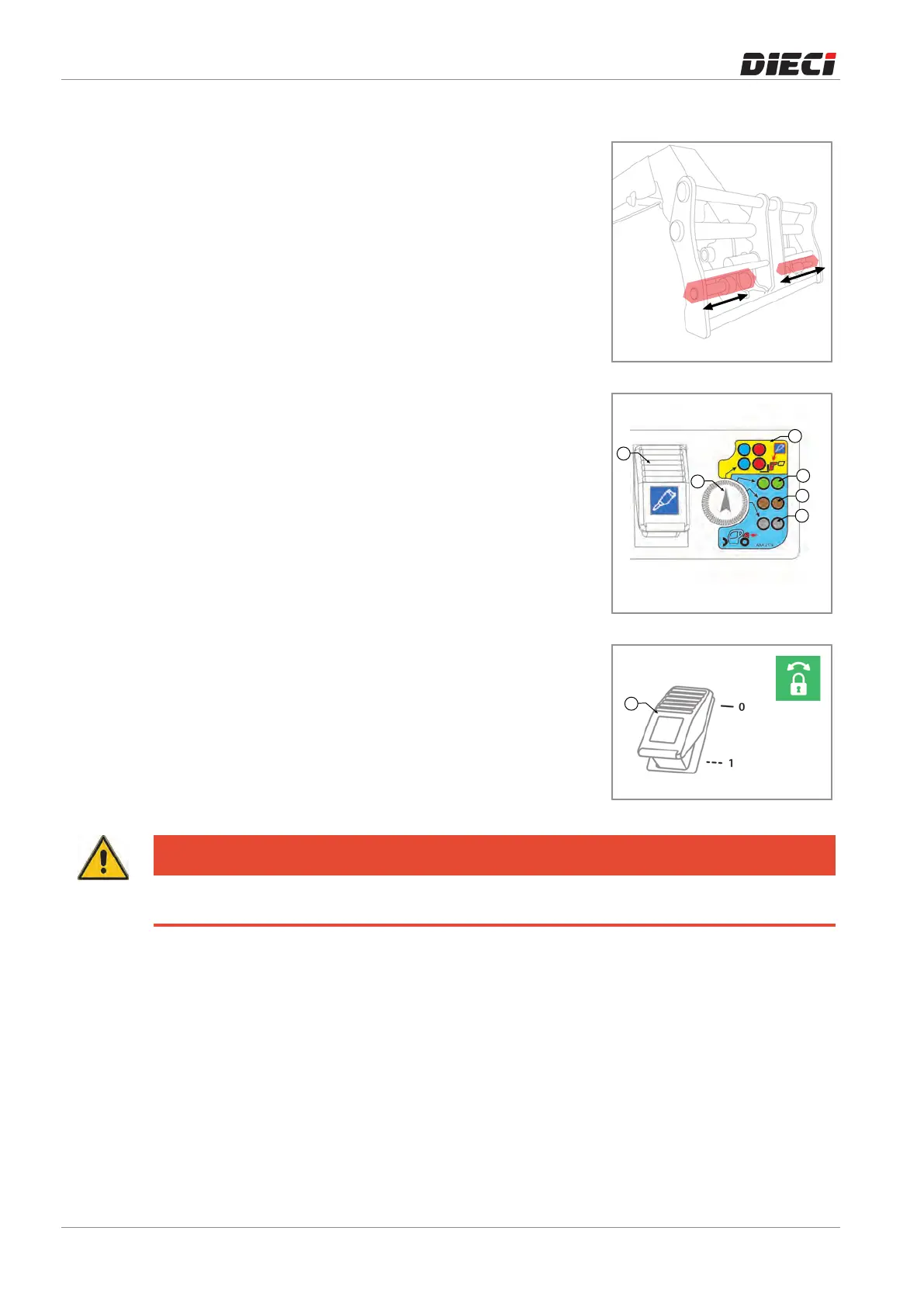

8.11.3 Quick coupling with double cylinder
To use the quick coupling (fig. 1502064) for the equipment
installationitisnecessaryto:
1. Carry out the normal hooking operations set out in
paragraphs 1, 2, 3 and 4 of the chapter "Equipment
installation".
2. Select the sockets on the boom head “A” (fig. 1502065)
throughtheHydraulicsocketsselector"1"(ifpresent).
3. PresstheQuickCouplingbutton"1"(fig.1502066)andatthe
sametimeoperatetherollerontheservicesjoysticktoopen
thequickcoupling.
4. Keepthequickcouplingopen,tilttheplateupwardtomake
sure that the equipment is fully resting on the tool holder
plate.
5. Release the roller on the services joystick and the Quick
couplingbutton“2”toclosethequickcouplingandlockthe
equipment.
6. If the equipment is not properly fastened, repeat the
installation.
150206-7
2
1
A
B
C
D
150206-8
1
150206-9
DANGER
Do not operate without having properly secured the equipment to the plate, danger of load and
equipment falling.
