9.9 Height adjustable tow hitch adjustment *
NOTICE
The Height adjustable tow hitch is an optional accessory for the agricultural sector.

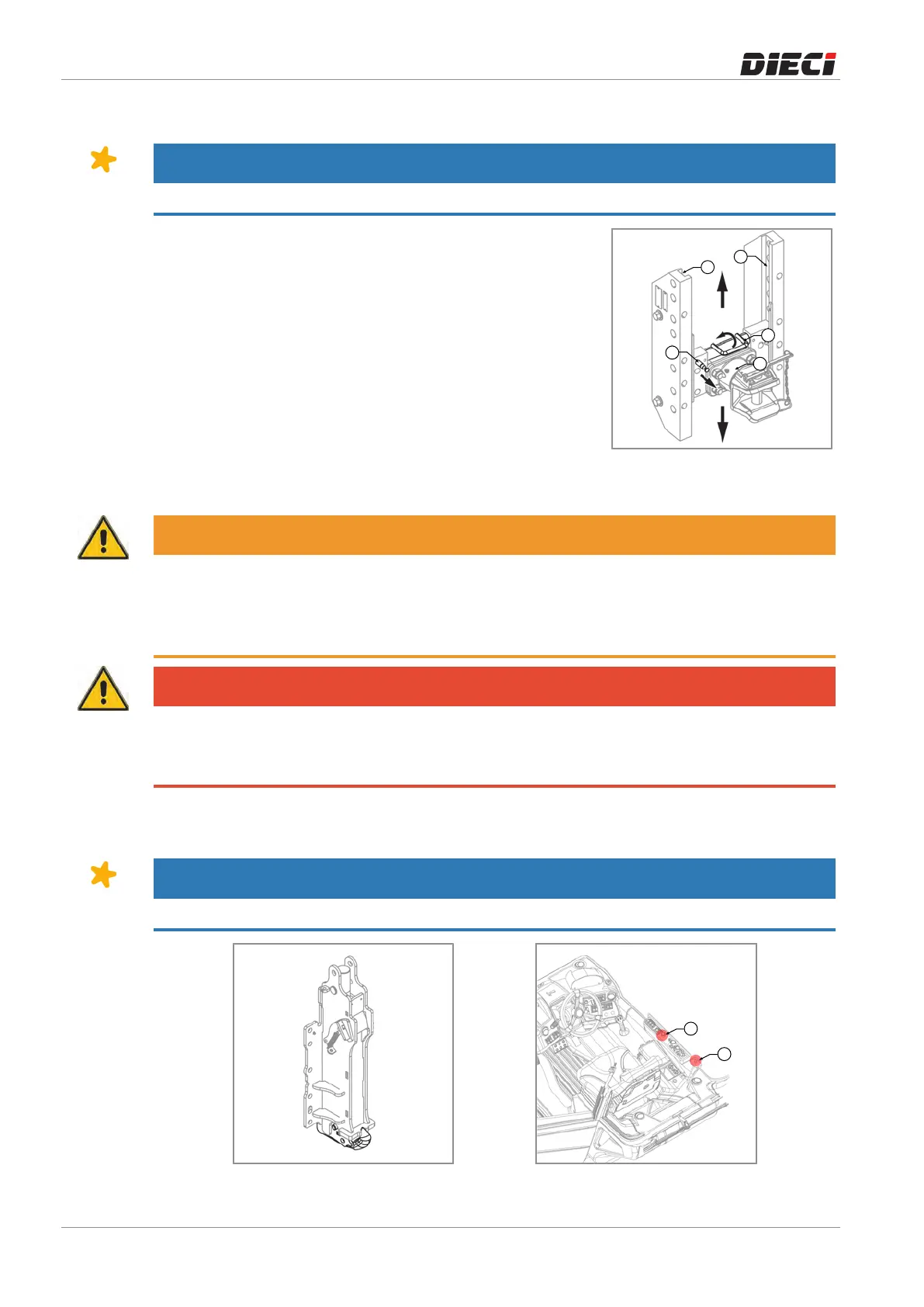

The height adjustable tow hitch (fig. 1505021) allows the
operator to adapt the tow hitch according to the type or
characteristicsofthetrailertowed.
Toadjustthetowhitchheight:
1. Holdthepin"1"andpulloutward.
2. Keep the pin "1" pulled and lift the handle with safety lock
"2";intheseconditionsthehookisfreetomoveinitsguides.
3. Releasethepin"1".
4. Lowerorliftthehook"3"accompanyingitbythehandle"2".
5. Afterreachingthedesiredposition,releasethepin"1".
6. Lower the safety handle "2" until the hook "3" locks in the
desiredposition.
4
1
2
3
4
1505021
WARNING
The vehicle driving maneuverability and safety depends on the proper adjustment of the
tow hitch.
The tow hitch located at the top increases the pulling capacity but also prevents the risk of tipping. Do
not allow that the drawbar to position too tilted up.
DANGER
Be careful during the tow hitch height adjustment; danger of crushing of hands or feet.
Keep the guides "4" clean and lubricate according to the deadlines specified in the "Maintenance"
chapter.
9.10 Pick-up hitch **
NOTICE
The Pick-up hitch is an optional accessory for the agricultural sector.
1505031
1
2
1505032
