Dieci SAMSON AGRI MAX - Rear Trailer Hitch

Agriculture components description | 9
DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A 173
9.8 Rear trailer hitch **
NOTICE
All different types of trailer hitches are optional accessories for the agricultural sector.
Thetrailerhitchesarelocatedintherearpartofthevehicleand
may have different capacities depending on the customer's
request.
Thetowingcapacityislimitedforeachvehicleinaccordancewith
the authorized weight to be towed, the traction force and the
verticalloadofthetowpin.Thesedataareshownonthevehicle
registrationdocument.
Before moving the vehicle with the trailer ensure the correct
positioningofthelockingpin.

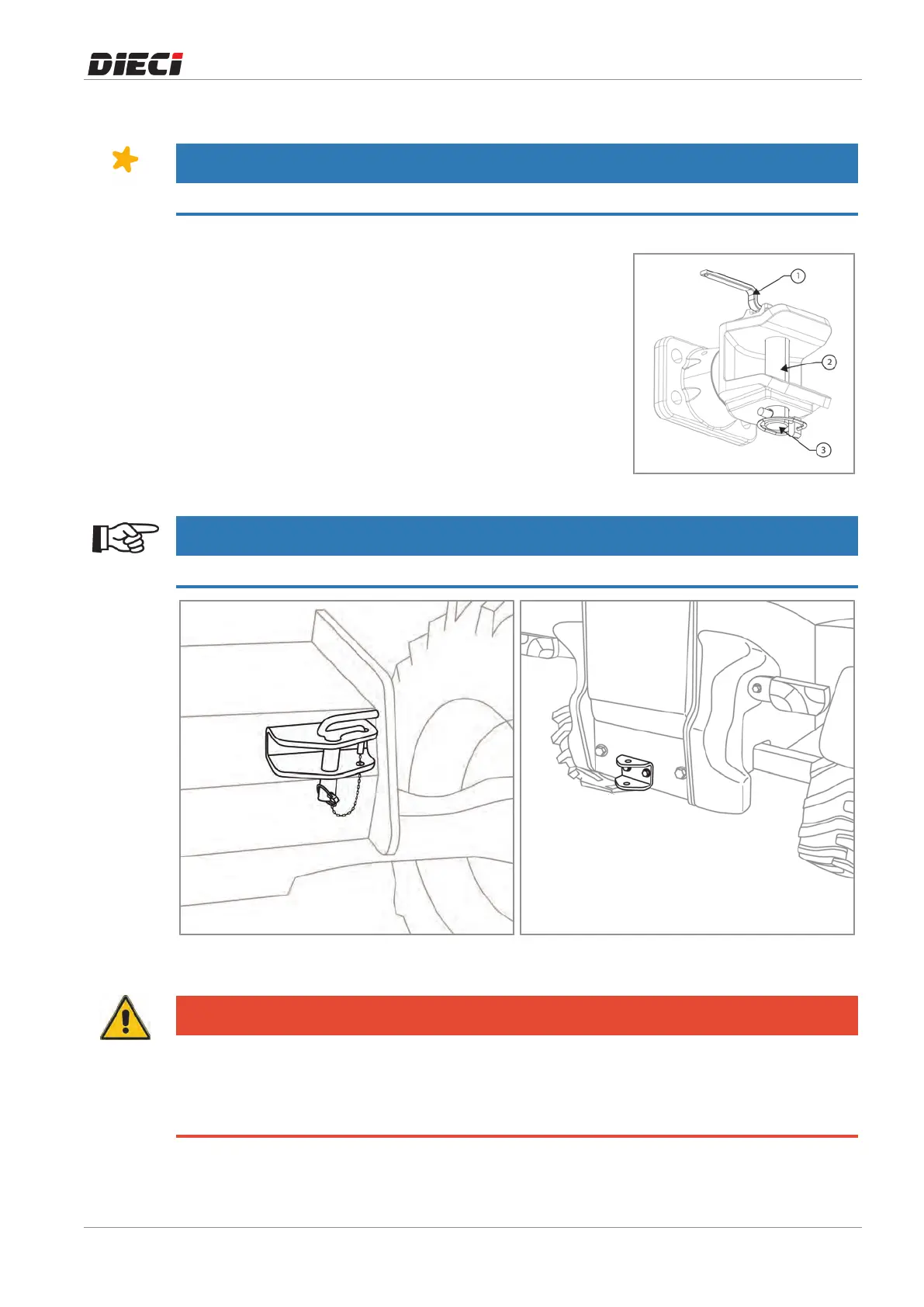

Thepinoftherearhitch“1”(fig.1502131)iscorrectlypositioned
andlockedwhenthispassesthroughbothsidesofthehook“2”
andislockedbyitssplitpin“3”.
1502131
NOTICE
Refer to the "Technical data" chapter to know the characteristics of the towing hook installed.
1502132
1502133
DANGER
On the vehicle there are sheet metal hooks (fig. 150213-2 and fig. 150213-3) to facilitate
the vehicle towing operations in case of emergency or breakdown.
It is forbidden to use these hitches for towing trailers, danger of damage to the vehicle and to the trailer
as these hitches have capacity and resistance inadequate for this purpose.
