Dieci SAMSON AGRI MAX - TFT Instrument Panel; Components

Components description | 8
DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A 91
8.2 TFT Instrument panel
8.2.1 Components
1
8
5
4
7
6
3
2
18 21
20
19
S1
S2
T1
T2
9
13
12
14
15
11
10
16
25
26
24
27
T4
T3
D1
S4
S3
22
23

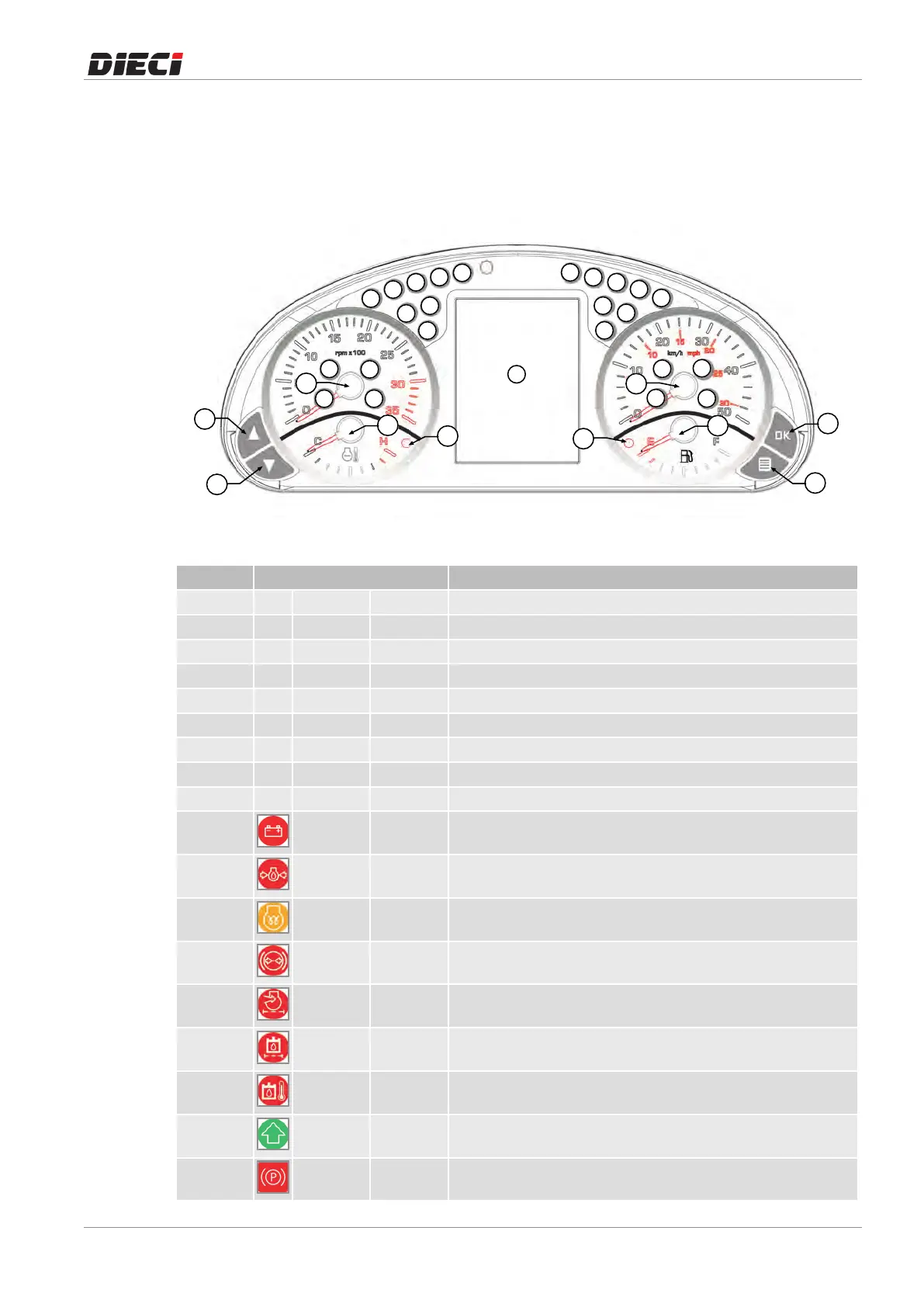

Illustration5: 1504251Instrumentpanelcomponents
Position Indicator light Description
T1    UPbutton
T2    DOWNbutton
T3    OKbutton
T4    MENUkey
D1    Display
S1    Tachometerindicator
S2    Enginewatertemperatureindicator
S3    Speedindicator
S4    Fuellevelindicator
1 Red Fixed Generator,batteryfailure
2 Red Fixed Engineoillowpressure
3 Yellow Fixed Glowplugs
4 Red Fixed Parkingbrakeinsufficientpressure
5 Red Fixed Engineairfilterclogging
6 Red Fixed Hydrostaticoilfilterclogging
7 Red Fixed Hydraulicoilhightemperature
8 Green Fixed Forwardmovementengaged
9 Red Fixed Parkingbrakeengaged
