Components description | 8
DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A 123
CONTROL MOVEMENT
Extension/retraction roller
backwards
Boomretraction
Servicesrollerforwards Oil to the hydraulic coupler
selected(colorblueorsign“+”)
Servicesrollerbackwards Oil to the hydraulic coupler
selected(colorredorsign“-”)
NOTICE
The joystick controls correspond to proportional movements of the machine.

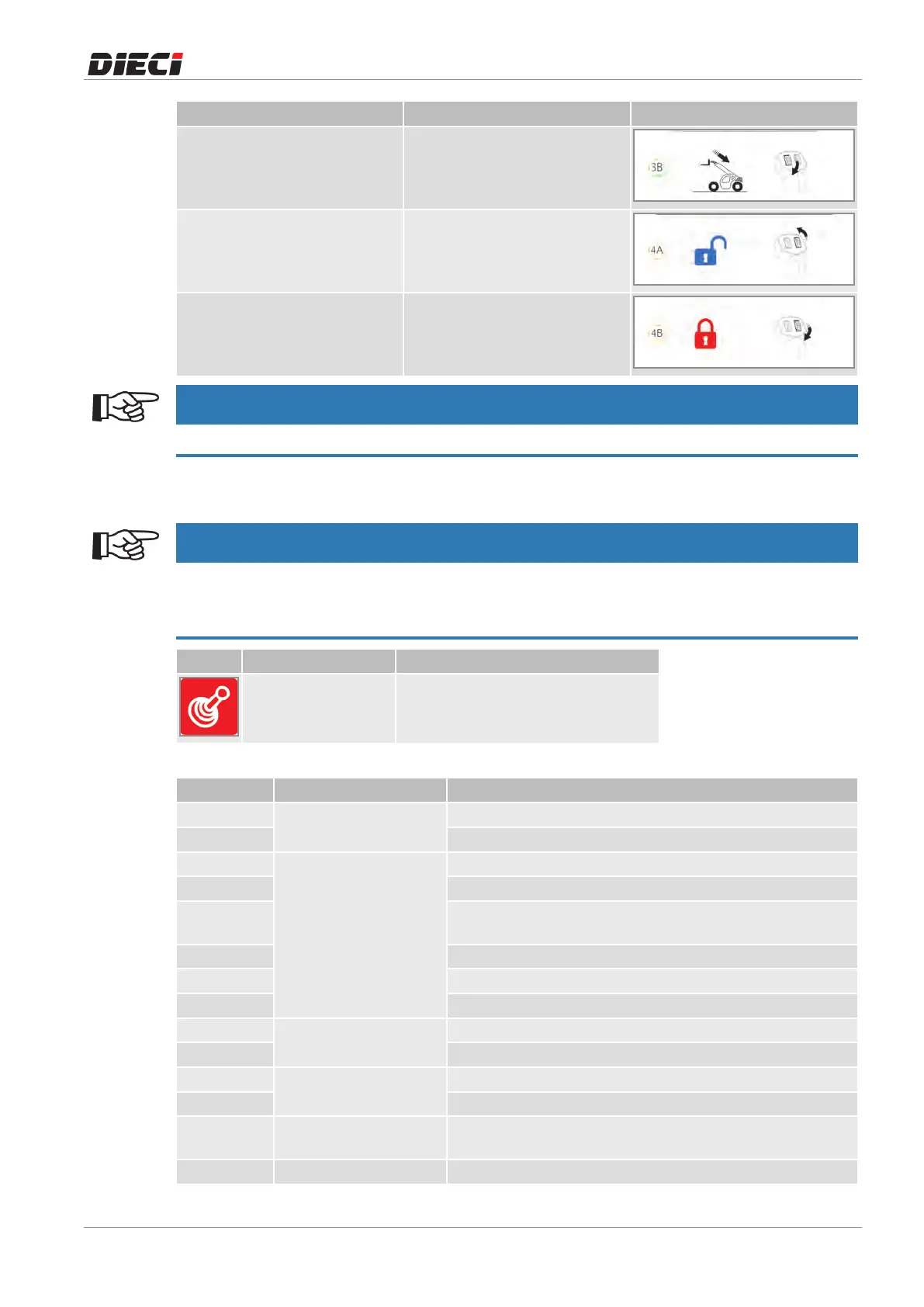

8.6.5 Joystick error list
NOTICE
In case the vehicle is in error, contact a Dieci service center to solve the problem, indicating the error code
reported.
For more information about the errors display, refer to the "Central instrument panel" chapter.
Icon Example Description
000.E4 Joystickerrors
CODE COMPONENT ALARM
006.E4 Powersupplyvoltage5VlowwithEngineON
007.E4 Powersupplyvoltage5VhighwithEngineON
010.E4 SAR Invalidinputvoltage
011.E4 Invalidinputvoltage
015.E4 SLOW MOTION signal inconsistent with the active SAR alarm
PreAlarmnotactive
016.E4 SARalarmactive
017.E4 SLOWMOTIONprealarmactive
018.E4 Inconsistencybetween2CUTOFFsignals
025.E4 HandThrottle Oneofthe2switchespressedorbrokenattheENGINESTART
026.E4 Pressedsimultaneously
030.E4 PedalThrottle Redundancycontroloutoftolerance
031.E4 Atleastonesignaloutofrange
041.E4 SwivelingRodMicroswitch ENGINE START with mechanical lever not released or broken
microswitch
050.E4 FNR Invalidinputvoltage
