CAUTION
With the hand throttle in operation, the vehicle travel is disabled.
CAUTION
When turning off the vehicle, the function must be disabled and the engine must be brought to the
minimum speed.
WARNING
Do not use the electronic throttle in the cab during the use of the basket and/or of the remote control.
8.15 Safety rod
Thesafetyrodmustbeusedasasafetymeasureduringmaintenanceoperations,topreventthedescentor
falloftheboomincaseoffailures.
WARNING
DANGER OF CRUSHING
In case of maintenance to the boom lifting cylinder or the relative lock valve it is required to support the
boom by means of an appropriate lifting device with minimum capacity of at least 3000 kg (6614 lb).

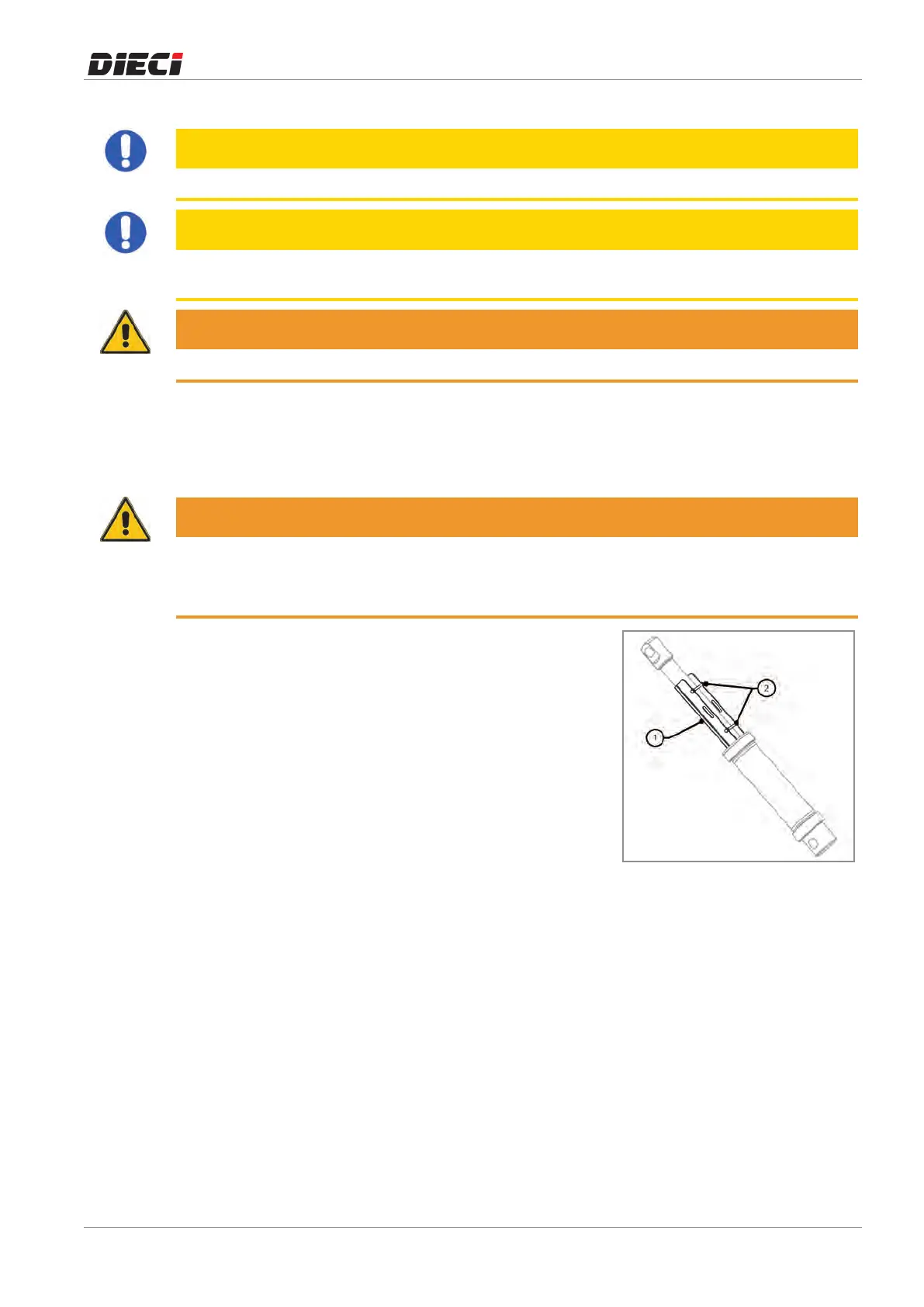

Toinsertthesafetyrod"1"(fig.1504591)operateasfollows:
– Completelyclosetheextensionsofthetelescopicboom
– Lifttheboom totheminimum heightnecessaryto apply
thesafetyrod
– Applythesafetyrodaroundtheliftingcylinderrod
Lockthesafetyrodbymeansoftheappropriatehooks"2".
150459-1
