8.1.12 Steering wheel
Thesteeringwheelofthemachineallowssteeringthemachinewheelsaccordingtothesteeringmodeset.
NOTICE
Refer to the "Steering selector" chapter.
8.1.12.1 Steering wheel adjustment

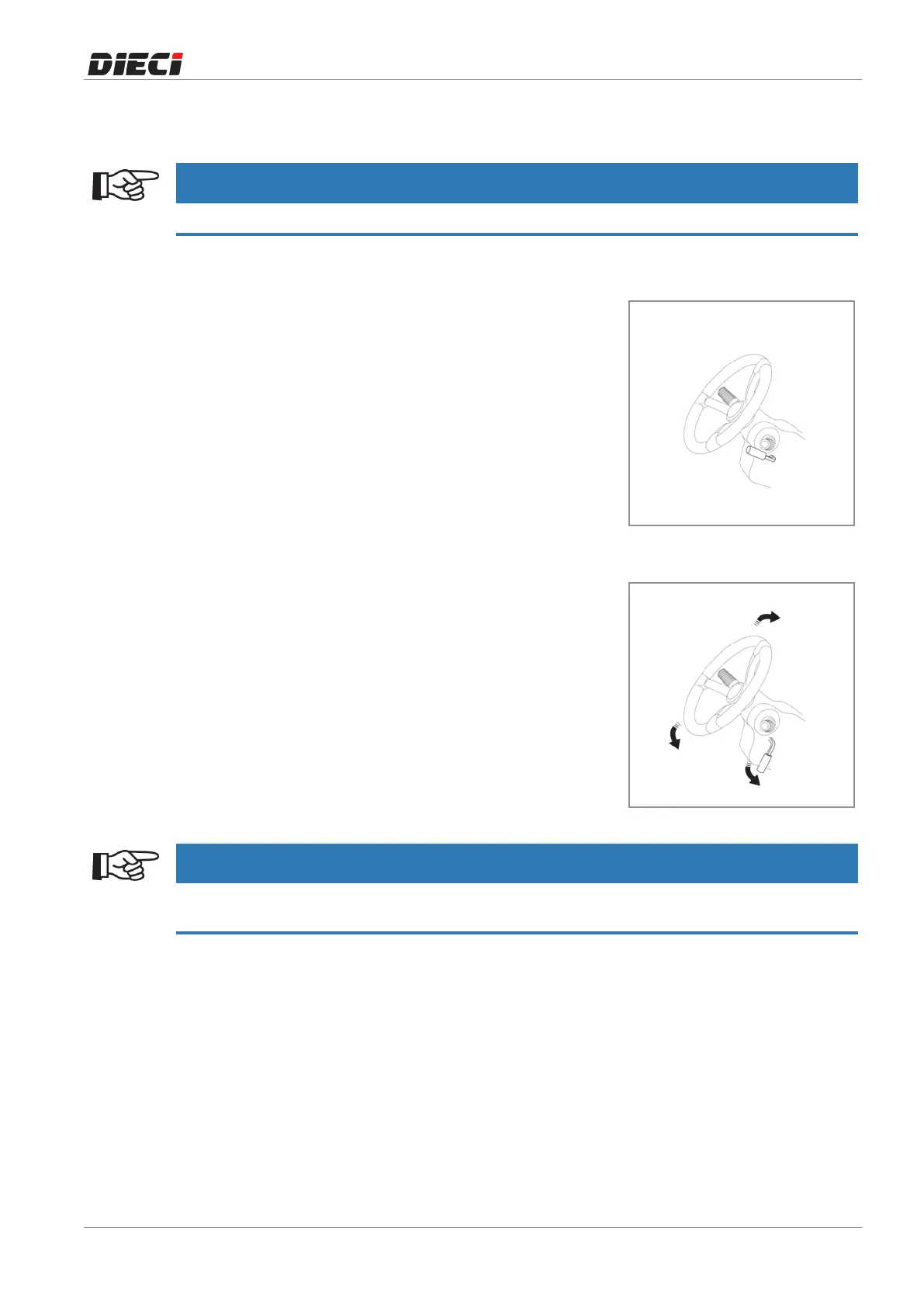

Toadjustthesteeringwheelangle(fig.1504011):
1. Turnthesteeringwheeladjustmentlever"1"(fig.1504012)
downtounlockthemovements.
2. Pushthesteeringwheelforwardorpullittowardsyourselfto
thedesiredposition.
3. Pushdownorpulluponthesteeringwheeltothedesired
height.
4. Turn the steering wheel adjustment lever up to lock the
steering wheel in the position in which it is located. For
correctlocking,screwfirmly.
150401-1
150401-2
NOTICE
The steering wheel is properly adjusted when the operator, with the back firmly against the backrest of
the seat, is able to grasp the furthest side of the steering wheel while keeping the elbow slightly bent.
8.1.13 Multifunction lever
Themultifunctionlevercontainsseveralfunctions:directionindicators,horn,headlightsturningon,window
wipersandwashers.
