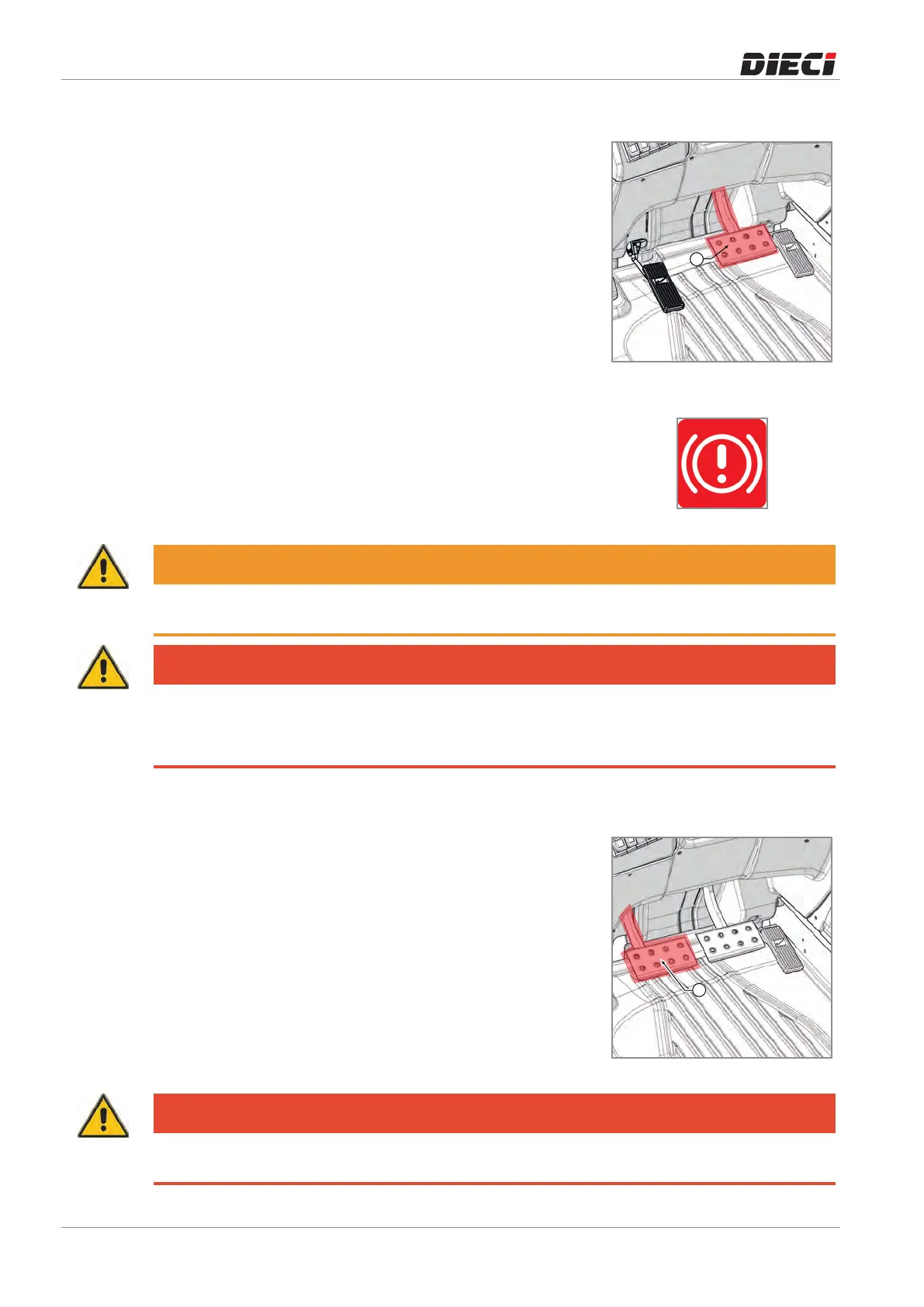

8.13.3 Service braking pedal
Presstheservicebrakepedal"1"(fig.1503111)toslowdownor
stopthevehicle.
Thepedalactsdirectlyontheservicebrakesinsidethedifferential
axles.
Whenthebrakepedalispressedthestoplightsoftherearlights
goon.Thelightsremaininoperationuntilthepedalisreleased.
Periodicallycheckthatbothlightsareworking.
1
150311-1
150311-2
WARNING
In the case of restricted use of the pedal periodically check its proper operation. In case of problems
contact the Dieci service center.
DANGER
If the warning light (fig. 150311-2) turns on intermittently, it indicates a low brake fluid level.
If the warning light (fig. 150311-2) turns on in a fixed way, the parking brake is stuck or damaged.
Do not use the vehicle until the problem has been solved. Contact a Dieci service center.
8.13.4 Inching Pedal
The inching pedal "1" (fig. 1507401) acts directly on the
hydrostatic transmission and allows to slow down the vehicle
forwardmovement.
Thepedalallowsslowandpreciseforwardmovementswithhigh
rpmheatengine.
With pedal fully pressed, the vehicle stops the forward
movement.
1
150740-1
DANGER
Do not press the inching pedal at high speeds, the vehicle brakes suddenly and the diesel engine risks
over-revving.
