Components description | 8
DOCMA0000006‐UK ﴾ENG﴿ ‐ Samson FPT 3A 119
CONTROL MOVEMENT
Extension/retraction roller
backwards
Boomretraction
Servicesrollerforwards Oil to the hydraulic coupler
selected(colorblueorsign“+”)
Servicesrollerbackwards Oil to the hydraulic coupler
selected(colorredorsign“-”)
NOTICE
The joystick controls correspond to proportional movements of the machine.
Joystick with capacitive deadman switch with FNR function.
TheJoystickallowsyoutooperateallthetelescopicboommovements.

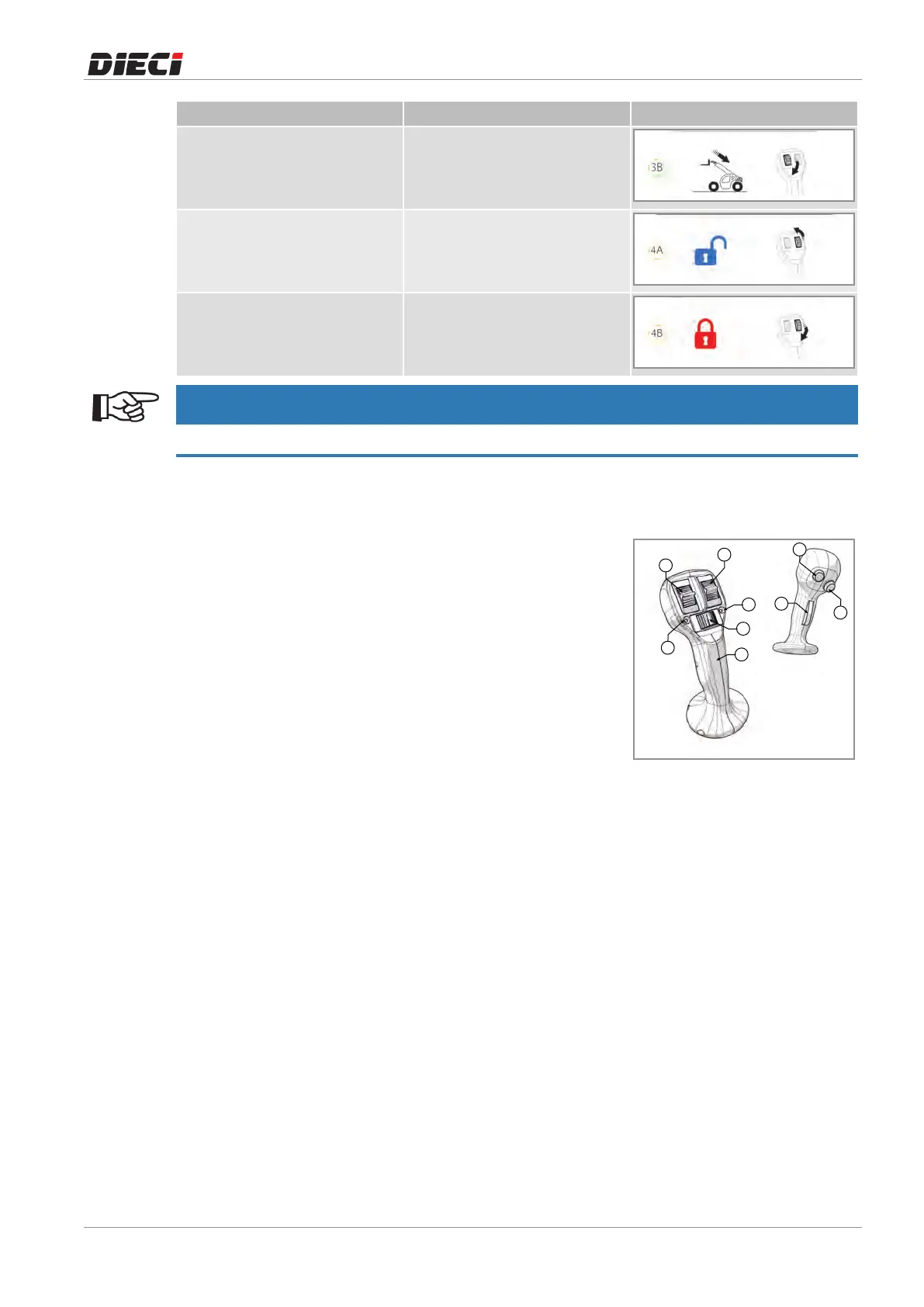

Itconsistsof(fig.1504512):
1. Grip
2. "Deadman"button
3. Extension/retractionroller
4. Servicesroller
5. F/Rroller(forward/backward)
6. Nbutton(idle)
7. ActiveF/Rled
8. Continuousoilfunctionbutton**
9. Continuousoilfunctionactiveled**
** Components depending on optional equipment or pre
arrangements.
1
2
8
9
3
5
7
6
4
150451-2
